− 81 −

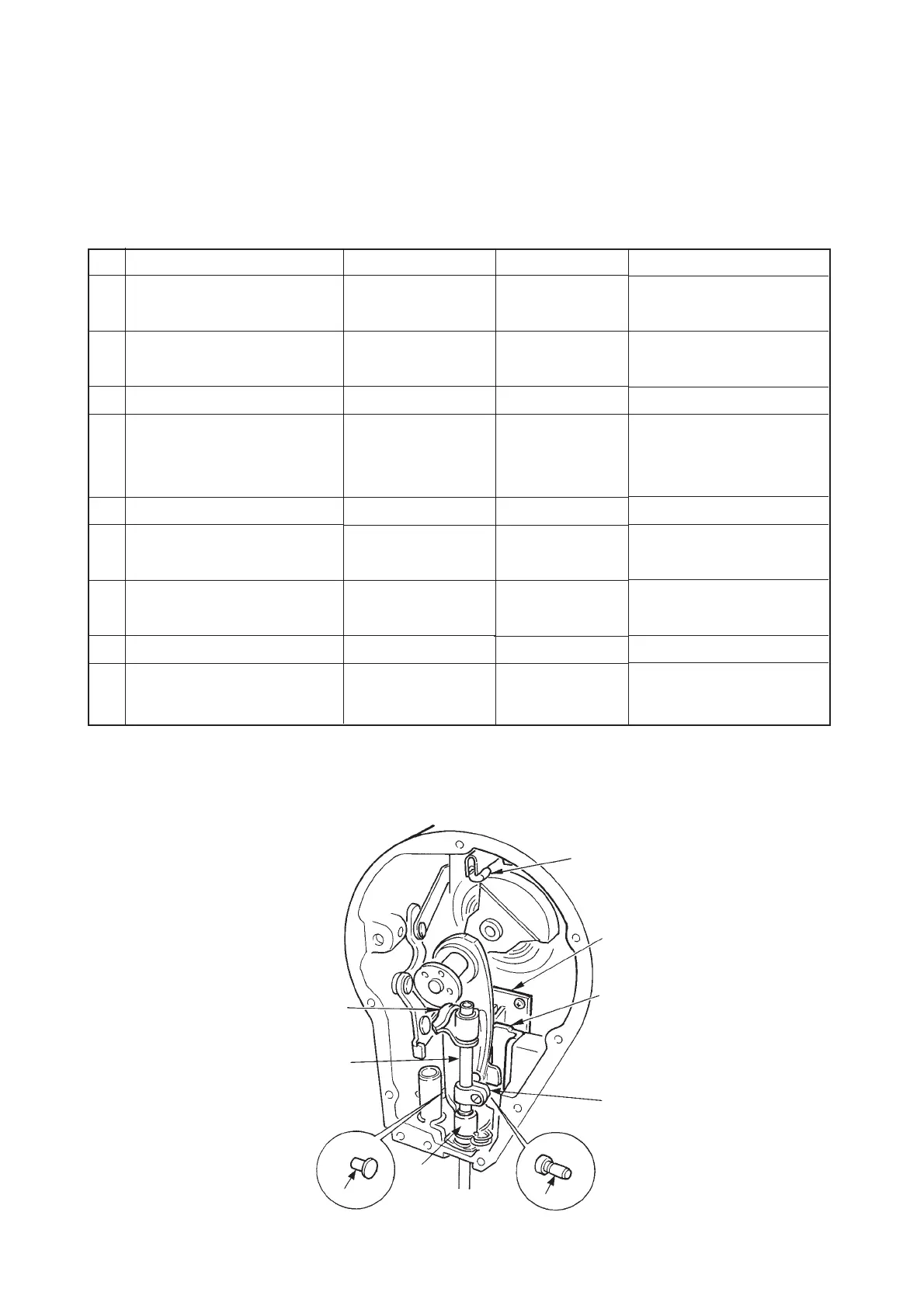

2) Mechanism section of the face plate section
Apply the exclusive grease supplied as accessories to all components of the rocking mechanism in the
face plate section.
However, do not apply grease to the needle bar of lubricating type (A-SS and A-SU).
| When applying grease, the needle bar is stained in black and the sewing product is in danger of being
stained.
Apply the exclusive grease supplied as accessories to the whole moving components of the mechanism.
No. Name of part
1 Needle bar crank rod oil wick
2 Needle bar support base
shaft upper metal felt
3 Needle bar bracket guide
4 Needle bar crank rod guide
5 Needle bar bracket
6 Needle bar support base
guide pin A
7 Needle bar support base
guide pin B
8 Needle bar
9 Needle bar support base
shaft upper/ lower metals
Lubricating oil
Apply JUKI
genuine No. 1 oil.
Apply JUKI
genuine No. 1 oil.
Exclusive grease
Exclusive grease
Exclusive grease
Exclusive grease
Exclusive grease
Exclusive grease
Exclusive grease
Part No.
MDFRX1600C0
MDFRX1600C0
40006323
40006323
40006323
40006323
40006323
40006323
40006323
Remarks
Excluding dry-head type
Excluding dry-head type
Apply grease so that the hole
for screwdriver of needle bar
crank rod guide is filled up as
the standard.
Dry-head type only
Dry-head type only
1
2
3
4
5
6
9
7
8
To Next Page
