JUKI IT-100D Engineer's Manual

−82 −

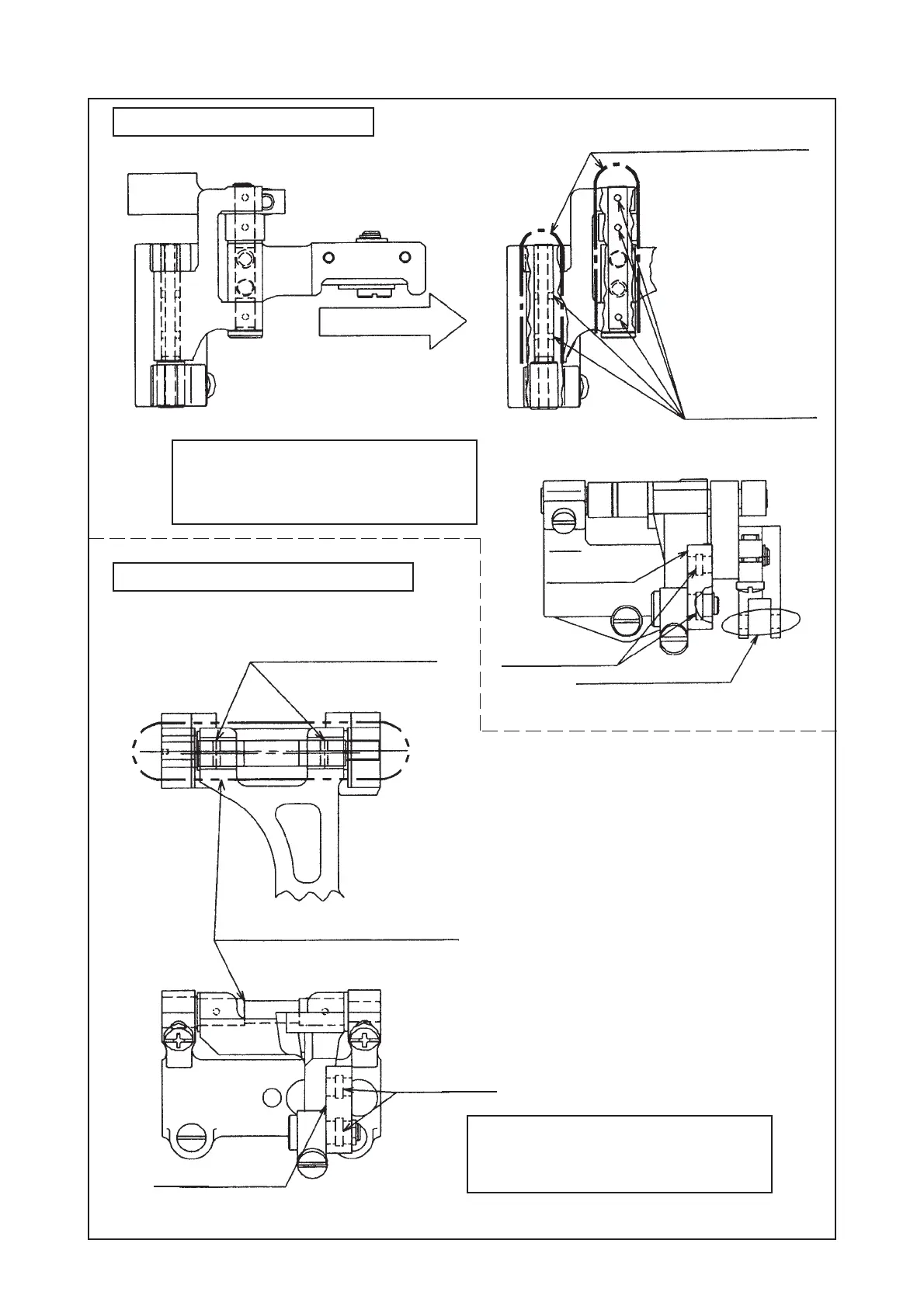

3) Feed mechanism section
Feed mechanism of A-SU and A-DU
Feed mechanism of A-SS, A-DS and A-SR
Apply exclusive grease supplied as accessories.
1. Fill whole of feed base shafts A and B, and oil
holes
2. Inside of grease groove of bearing of vertical
feed link
Oiling holes (fill exclusive grease
supplied as accessories.)
Apply exclusive grease supplied as
accessories to whole of feed base shaft.
Vertical feed link
Grease grooves
Apply exclusive grease supplied as accessories.
1. Fill whole of feed base shaft and oil holes.
2. Inside of grease groove of bearing of vertical
feed link
Apply exclusive grease to
whole of feed base shafts A and B.
Oiling holes (fill the
holes with
exclusive grease.)
Vertical
feed link
Grease grooves
Apply exclusive grease
to link coupling
section of vertical feed arm.
