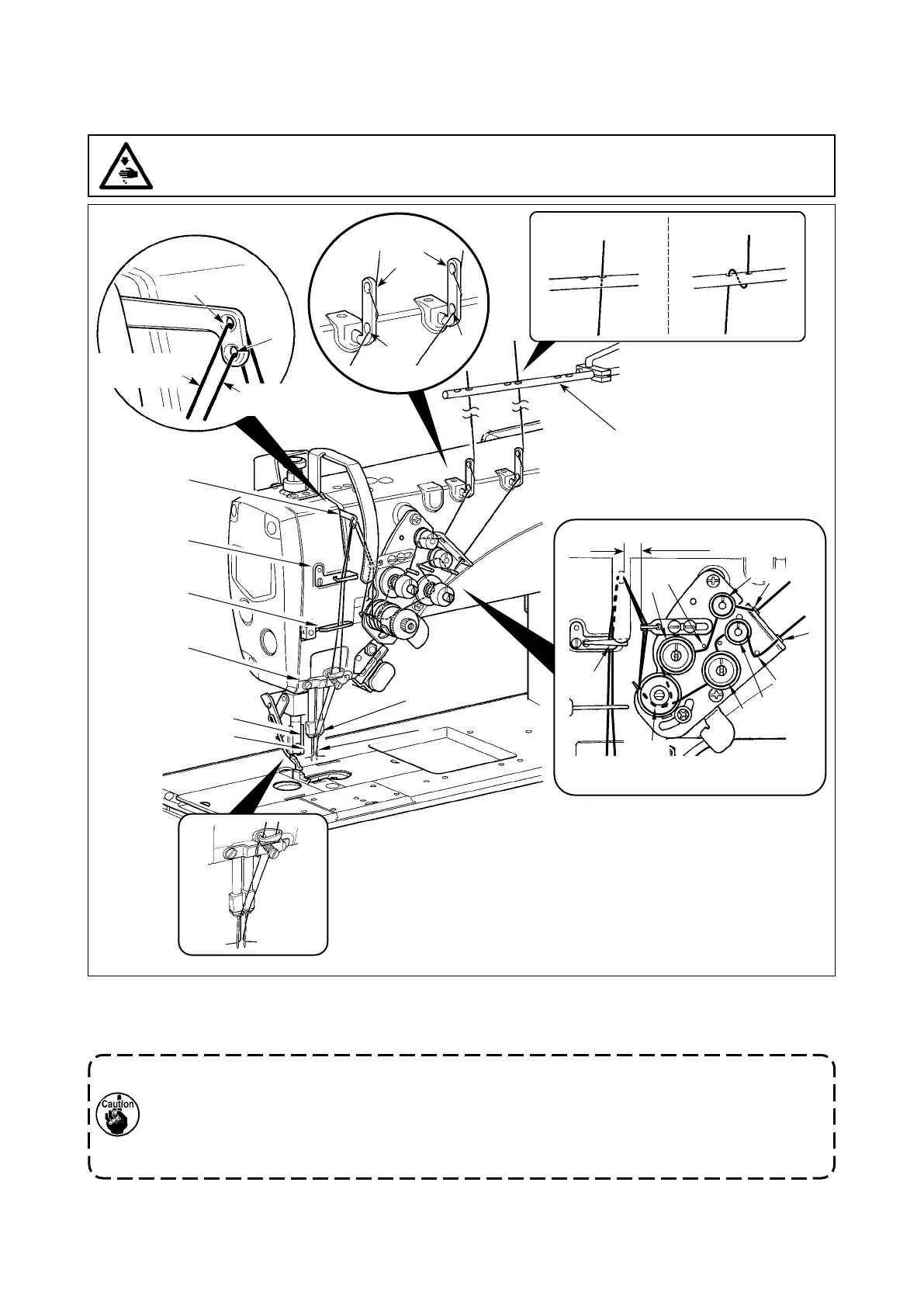

Thread the machine head following the order as illustrated in the gure.
Pass the left-hand needle thread, toward the machine head, in the order of
❶
to
. Pass the right-hand
needle thread in the order of
A
to
P
.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power o and ascertaining that the motor is at rest.
[G type] LH-3578A, 3578A-7, 3588A and 3588A-7
K
❶
❷
A
B
-
K
-
L
-
M
-
N
O
P
Left-hand
needle thread
Right-hand
needle thread
Intermediate
thread guide
❽
-
H
❼
-
G
❸
❹
❺
❻
C
D
E
F
14 mm
Fig. 1 Fig. 2
1. Thread guide (
,
M
) is able to prevent the needle thread from apping according to its incli-
nation. If the thread guide is inclined excessively, the needle thread can tangle on thread guide
(
,
N
). So, carefully adjust the inclination of the thread guide.
2. For the LH-3578A-7 or LH-3588A-7, thread the intermediate thread guide as follows:
･
For polyester spun thread, see Fig. 1. For lament thread, see Fig. 2.
