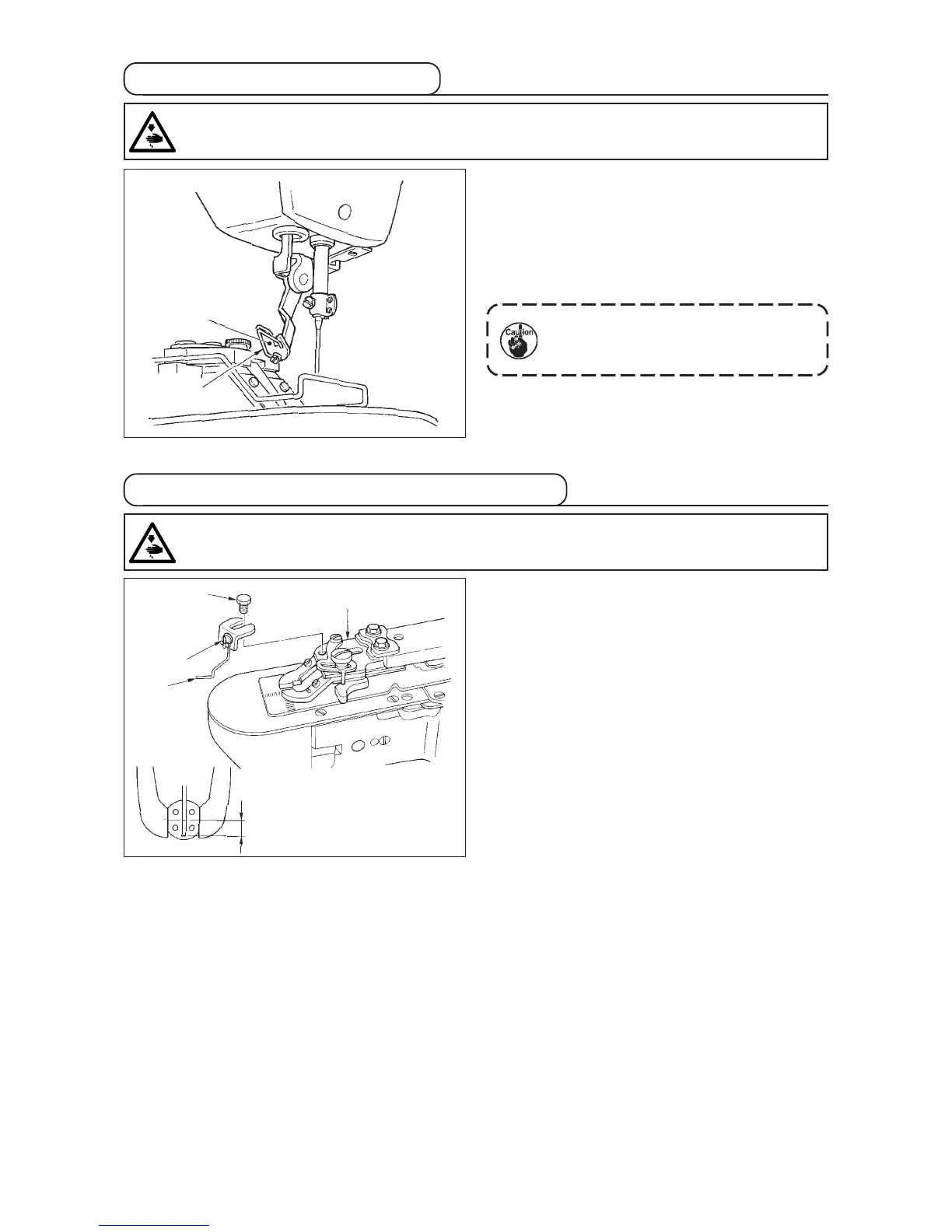

11. Installing the save button bar (accessory part)
1) Install save button bar e on button clamp base q
with hexagon screw w.
2) Adjust so that a clearance of 3.5 to 4 mm is provided
between the center of the button and the top end
of the save button bar.
3) To adjust the raising amount of the save button
bar, loosen screw r, and move the save button
bar up or down.
3.5 to 4mm
q
w
r
e
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
10. Adjustment of the wiper spring
Wiper spring q retains the needle thread after thread
trimming in between wiper w and the wiper spring.
Correct properly the tension of wiper spring q so that
the tension at that time becomes 20 to 30 g (a little
higher tension than that of the bobbin thread coming
out of the bobbin case).
If the retaining of the needle thread is
excessive, the thread may protrude from
the upper side of the button.
q
w
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
