4 Mounting
22
NOTE!
The temperature probe must be immersed in the medium for its entire length, otherwise there will be ap-
preciable deviations from the switching point.

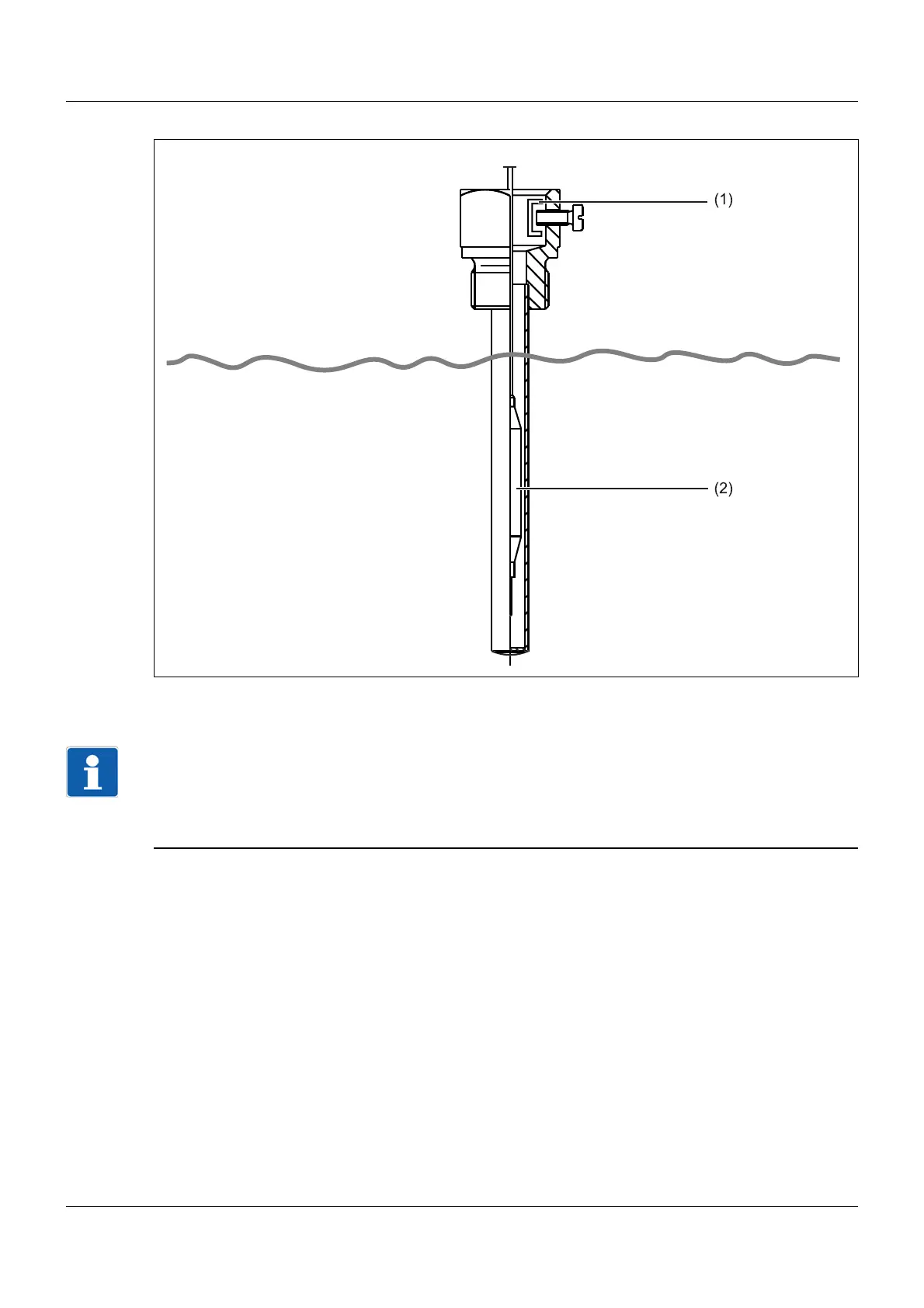

For connection types 20, 21 and 22/23, the temperature probe is fixed in the protective sleeve with the
clamping piece.
(1) Clamping piece
(2) Temperarture probe
