6 Settings
6.2 Setpoint adjustment
EM-1, EMF-1..
1. Rotate the setpoint knob by hand over the external scale.
EM-2, EMF-2.., EM-5, EMF-5.., EM-20, EM-50
1. Rotate the setpoint spindle over the internal scale using a screwdriver.
EM-3, EMF-3.., EM-4, EMF-4.., EM-30, EM-40
NOTE!
The limit value setting is fixed at the factory and sealed. It must subsequently not be adjusted.

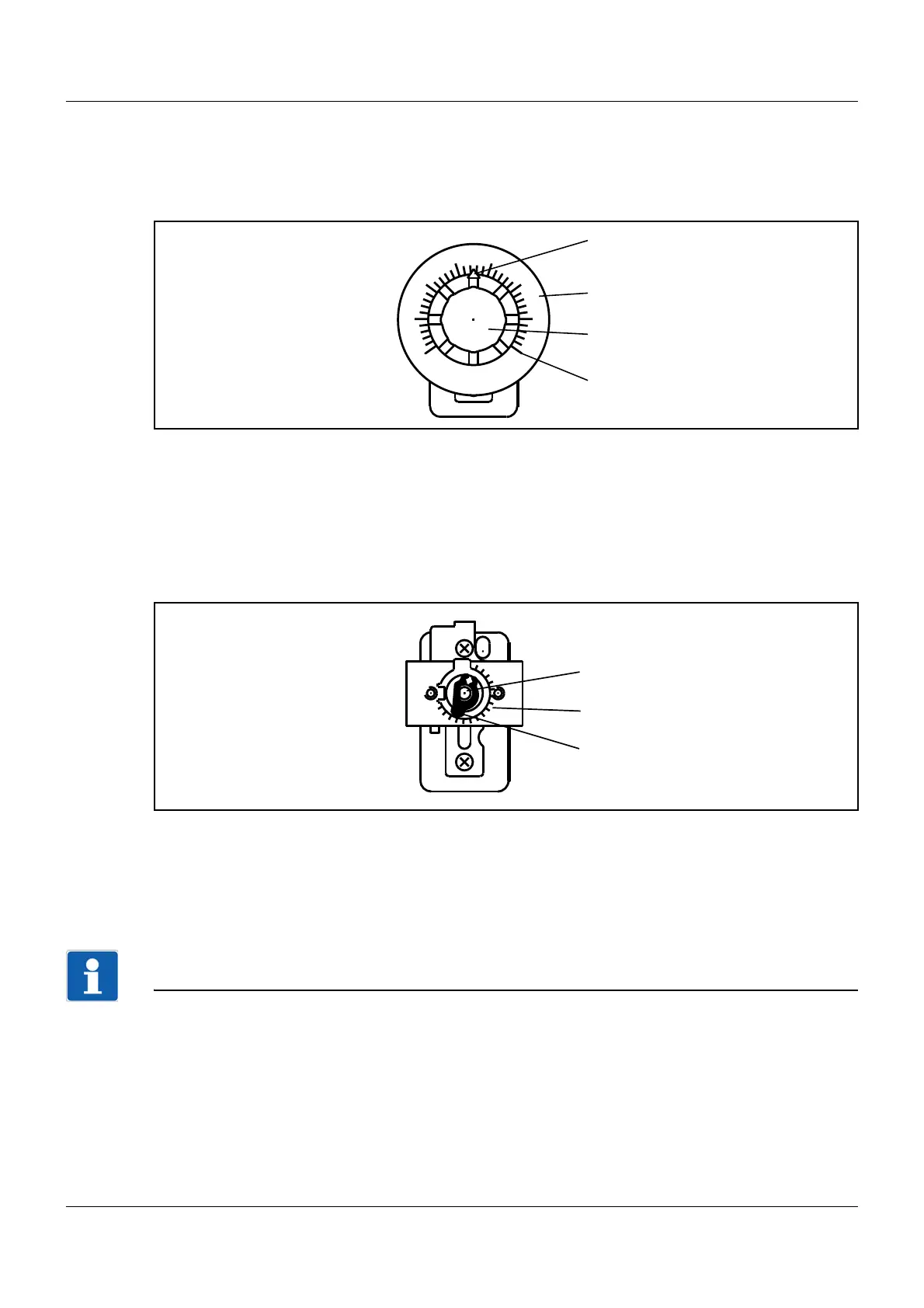

(1) Setpoint marker
(2) External scale
(3) Setpoint knob
(4) Scale graduation
°C
(1)
(2)
(3)
(4)
(1) Setpoint spindle
(3) Scale graduation
(4) Setpoint marker
(1)
(2)
(3)
