JUMO EM Series Operating Instructions

3 Installation
10

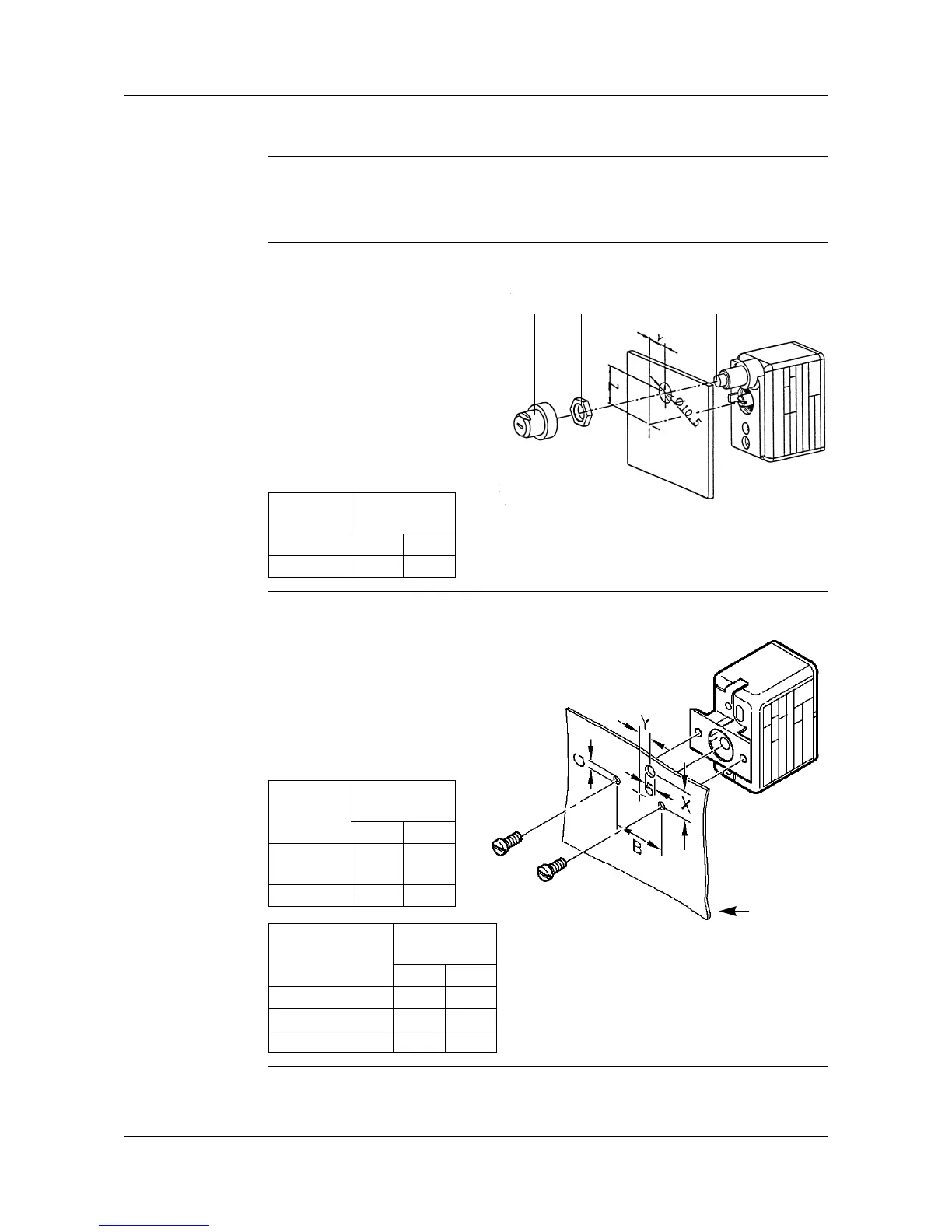

3.2 Fastening the panel-mounting thermostat
Operating posi-
tion
any
3.2.1 Fasting the switching head
Type EM-80
with central
fastening
Central fastening
( 1 ) Cap nut M10 x 1 (width
across flats 10)
( 2 ) Fastening nut M10 x 1
(width across flats 13)
( 3 ) Panel
( 4 ) Restart knob
Type EM-20-E,
EM-30-E,
EM-80
with
fastening bridge
With two M3 screws
(M4, for extra code 704)
on the chassis:
(1) Screw
(2) Panel
Type Dimension
(mm)
XY
EM-80 16 6
( 1 )
( 2 )
( 3 )
( 4 )
Type Dimension
(mm)
XY
EM-20-E,
EM-30-E
- - - -
EM-80 15 6
Extra code
(all types)
Dimension
(mm)
BG
706 (as standard) 3.5 22
704 4.5 28
705 3.5 33
( 1 )
( 1 )
( 2 )

JUMO EM Series Specifications

General

Housing Material	Plastic
Temperature Range	-50 to 400°C
Display	LCD
Power Supply	24 V AC/DC
Output	Relay, Analog
Input	Analog
Control Mode	PID, On/Off
