9
3 Mounting
3.2 Securing the panel-mounting thermostat
Operating
position
any
3.2.1 Central fixing
(standard)
✱
Drill fixing hole
10.5
mm dia. in panel.
✱
Unscrew cap nut M 10 x 1, 10 a/f .
✱
Unscrew fixing nut M 10 x 1, 13 a/f.
✱
Insert thermostat in panel and secure with fixing nut.
Do not overload the plastic thread!
✱
Screw on the cap nut.

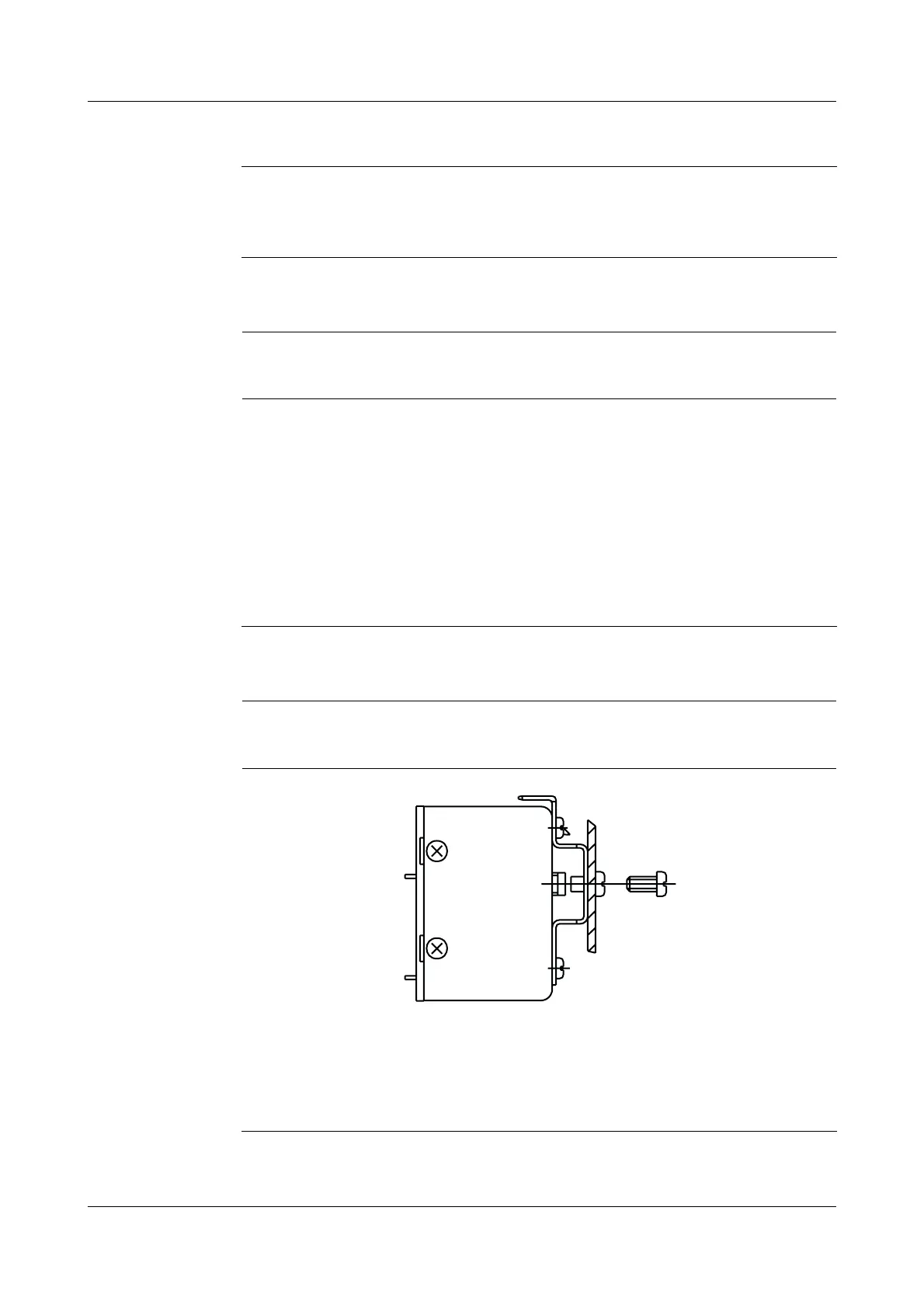

3.2.2 Fixing bracket
(Code b1, b2, b3)
✱
Drill two fixing holes 3.5 mm or 4.5 mm dia. into the panel.
If required, drill the hole into the panel for resetting the thermostat.
Secure the thermostat with two M3 or M4 screws. It is essential that
the thermostat is not damaged by excessively long screws.
H
➩
Chapter 3.1 "Dimensions", page 8
H
➩
Chapter 3.1 "Dimensions", page 8
