2 Operation
10

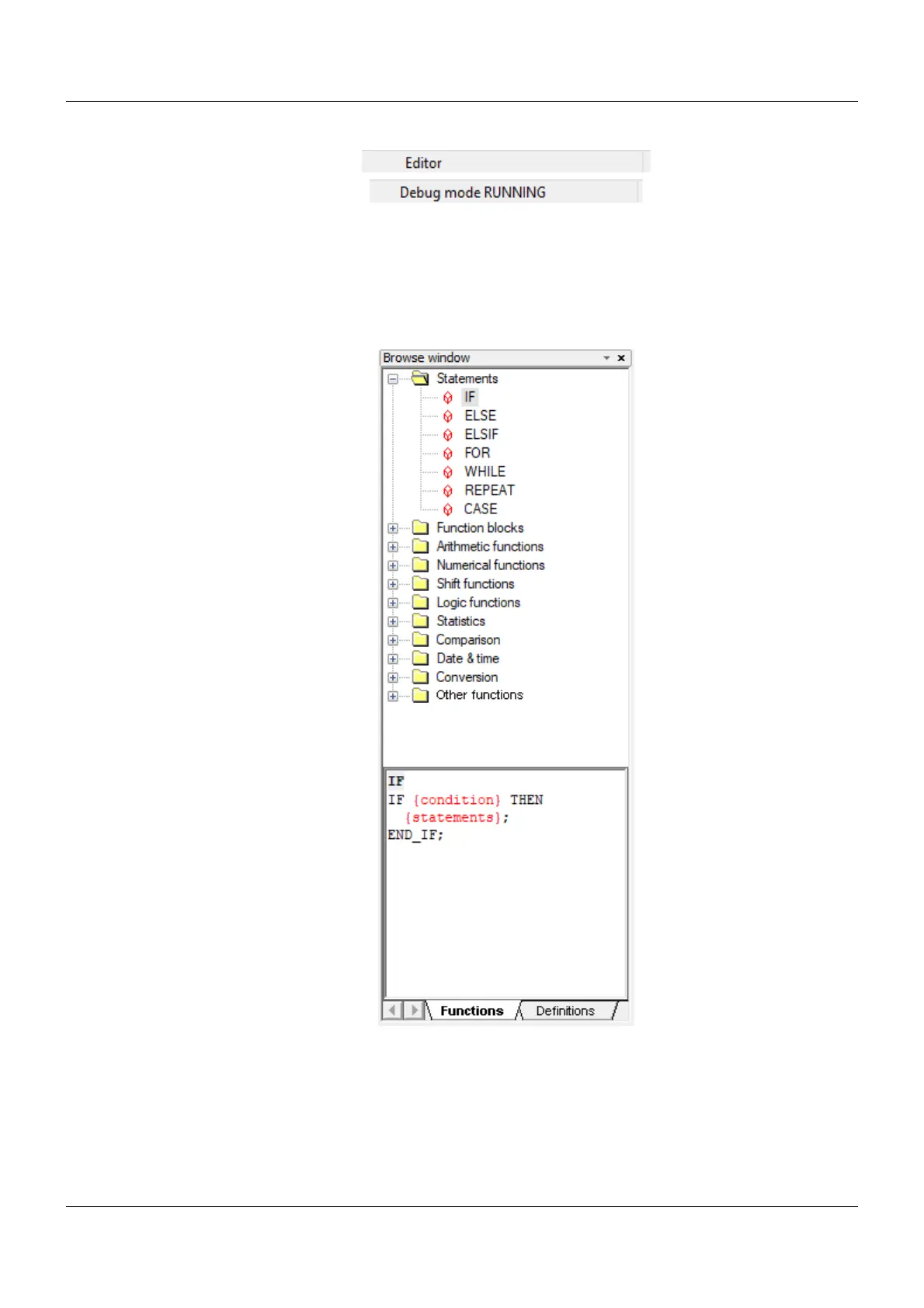

Status bar
The status bar is located at the bottom of the program interface and indicates whether the editor or debug
mode is active. In the case of debug mode, the individual states (STOP, RUN, PAUSE) are displayed.
Further information about the functions of the menu bar and the toolbar is also displayed in the status
bar (hover over the individual function in the respective menu or over the symbol in the toolbar with the
mouse pointer).
Browse window
The browse window lists all the instructions and functions that can be used in the editor. The use of the
instruction or function is shown in the bottom part of the window.
The function text displayed in the bottom part of the browse window can be inserted into the ST code in
the edit window at the desired position (where the cursor is or instead of the selected text) by dragging
and dropping (select text beforehand), by clicking on the "Function text" icon, or using the F4 function
key. After inserting, the next placeholder is selected by clicking on the "Function text" icon again or press-
ing F4.
