11
2 Operation
NOTE!
The "Definitions" tab is device-dependent and contains definitions (names for fixed values) that are fac-
tory-set or created by the user. If the ST module of the respective device supports definitions, these are
described in a separate chapter "Definitions".

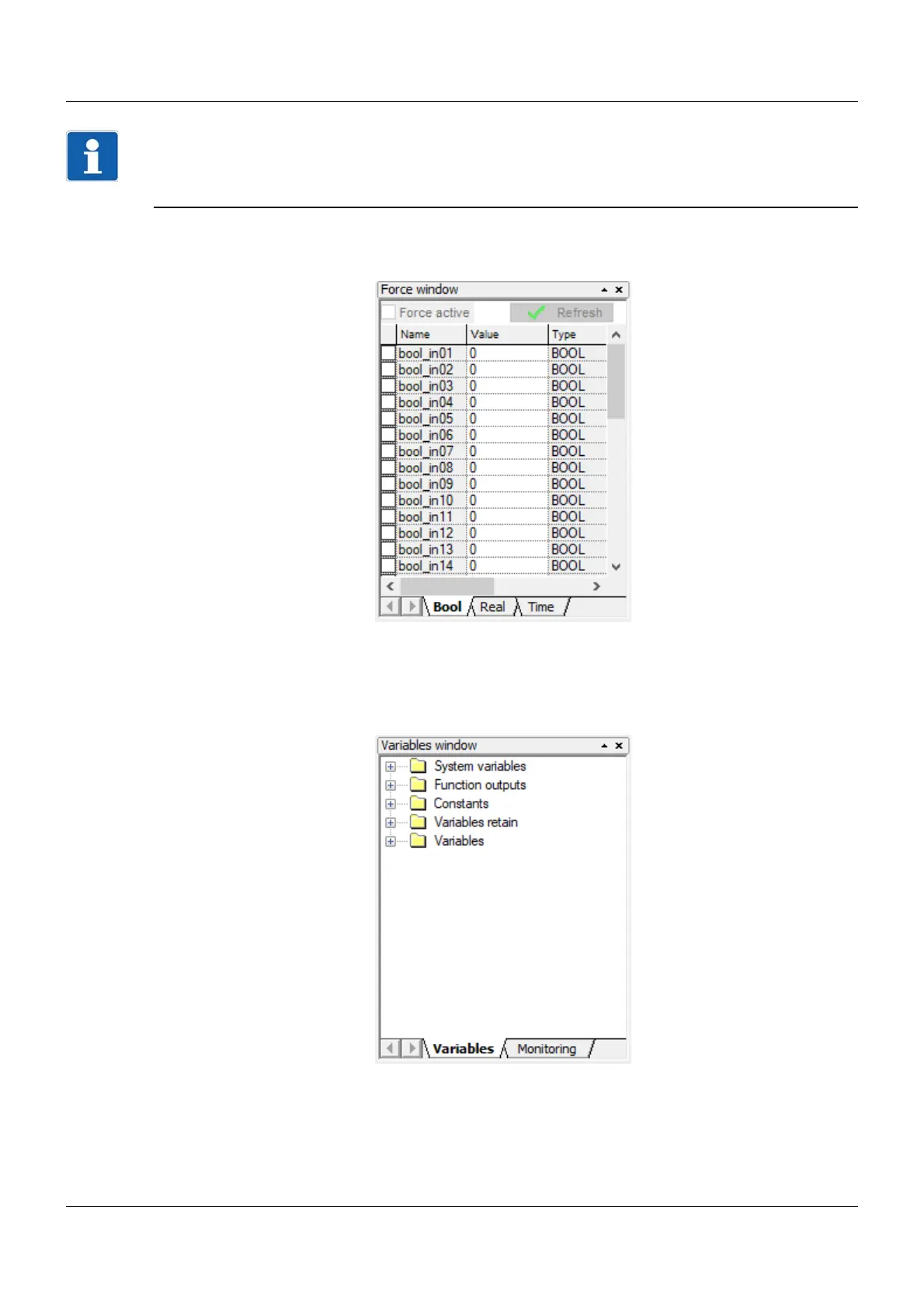

Force window
The force window consists of three parts (tabs). Only the "Bool" tab is shown here.
The "Bool" and "Real" input variables as well as date and time can be set by the user in the force window
in order to test the program code.
Variables window
The variables window consists of two parts (tabs).
The "Variables" tab lists all system variables and function outputs (outputs of the function blocks) as well
as the constants and variables (markers) declared by the user. They can be copied from the variable
window by dragging and dropping and pasted into the ST code at the desired position in the edit window.
