Jun-Air 86 - Performance Graphs; 87 R-XB Performance Curves

24
6190755 (Rev A) 86/87R Compressor System User Guide
© 2015, JUN-AIR
We reserve the right to make any alterations which may be due to any technical improvements
Printed in the USA
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0 20 40 60 80 100 120
Flow (CFM)
Pressure (PSI)

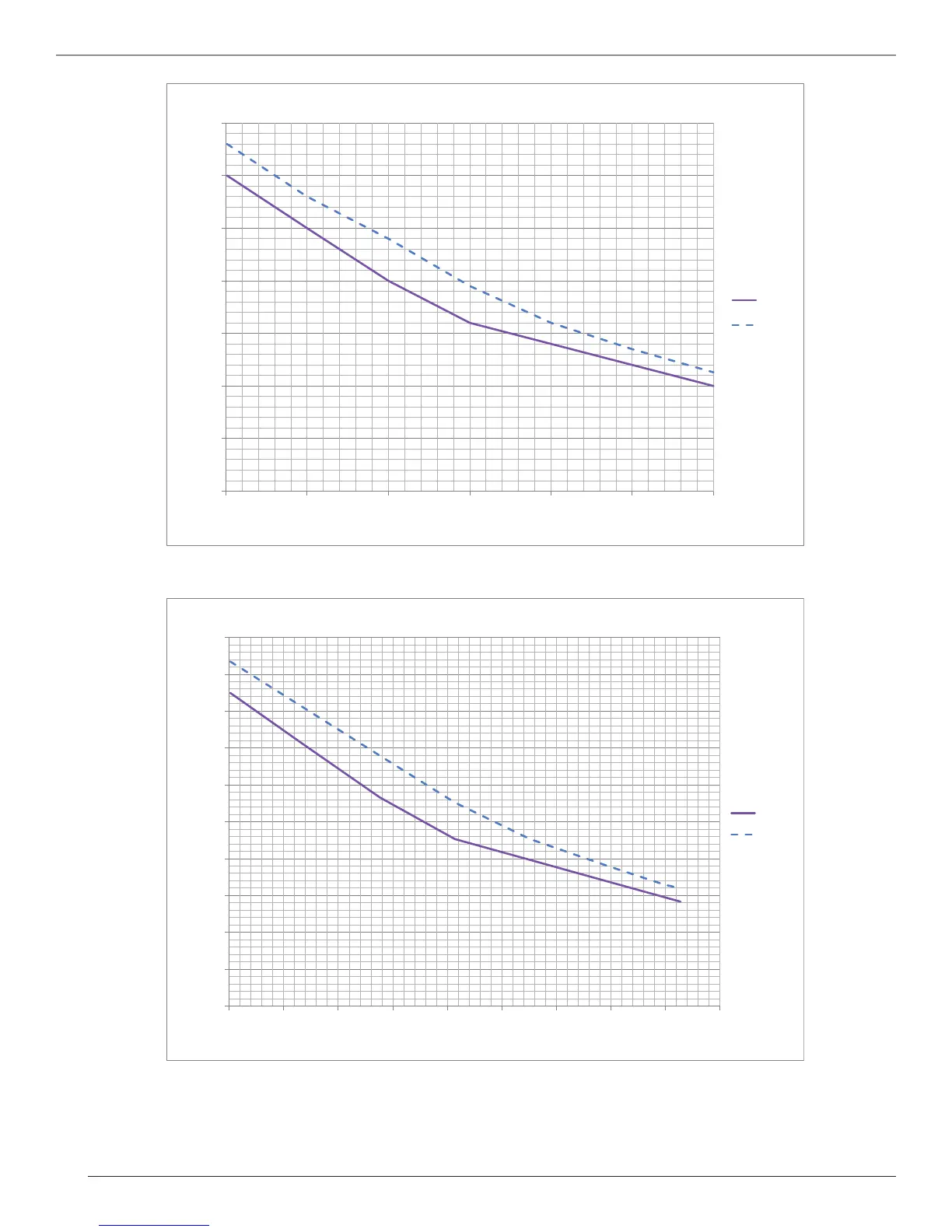

87R-XB-JXXXX English Performance
50 Hz
60 Hz
0
10
20
30
40
50
60
70
80
90
100
0 1 2 3 4 5 6 7 8 9
Flow (LPM)
Pressure (BAR)
87R-XB-JXXXX Metric Performance
50 Hz
60 Hz
