JUNCTEK
JDS8000 Series User’s Manual
47
amplitude, and the voltage control channel . As shown in Figure 3-9-36 below.
Voltage control duty cycle: After the voltage control function is enabled, click
the voltage control type to select the voltage control duty cycle; in the voltage
control duty cycle, you can set the maximum voltage calibration, minimum
voltage calibration, voltage control mode, start duty ratio, stop duty cycle,
voltage control channel. As shown in Figure 3-9-37 below.

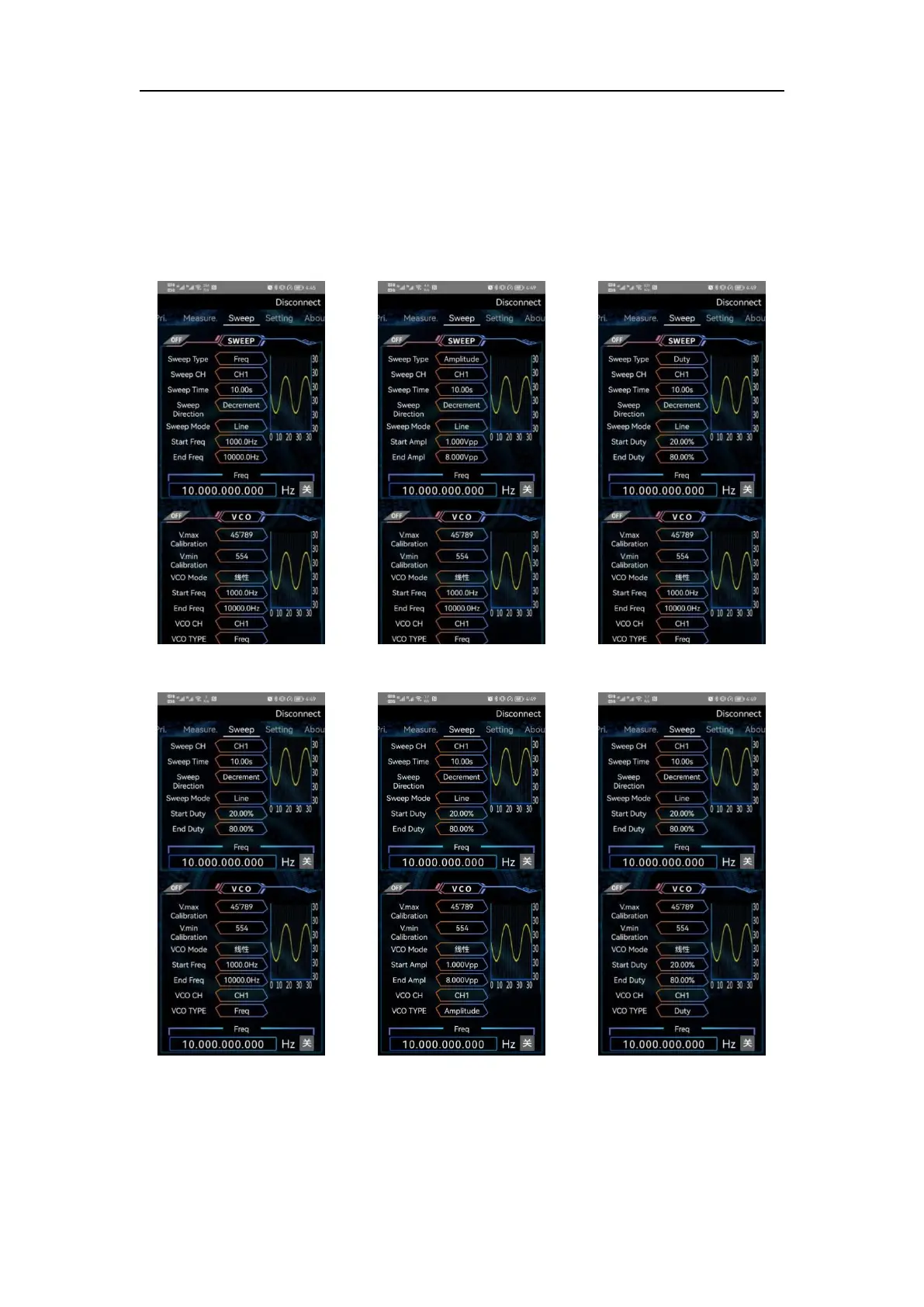

Figure 3-9-32
Sweep frequency
Figure 3-9-33
Sweep amplitude
Figure 3-9-34
Sweep duty cycle
Figure 3-9-35
Voltage control
frequency
Figure 3-9-36
Voltage control
amplitude
Figure 3-9-37
Voltage control duty
cycle
 System setting operation
