Lifting and lowering
Lifting

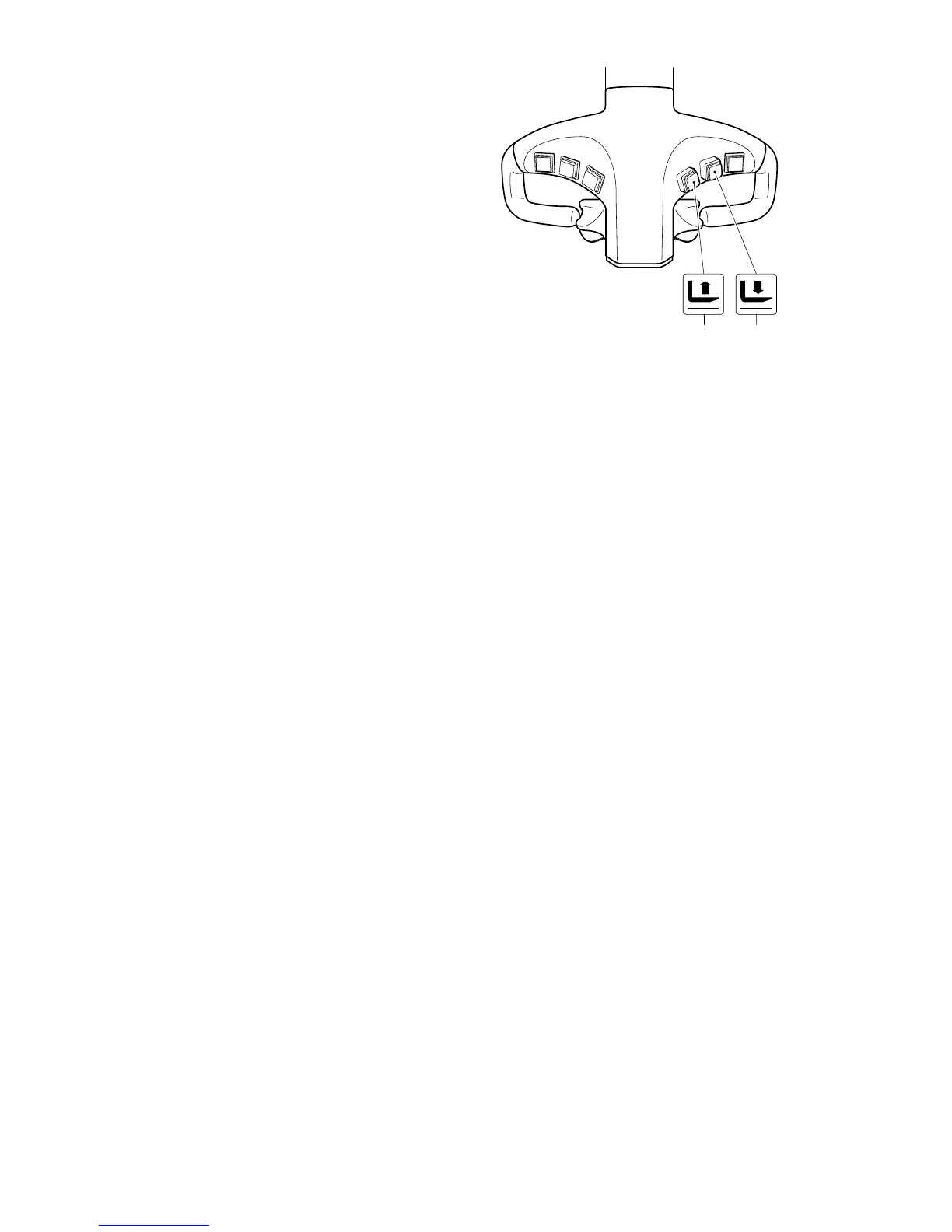

– Press the “Lift the lifting device”
button (10) until the desired height
has been reached.
Lowering
– Press the “Lower the lifting de-
vice” button (11) until the desired
height has been reached.
A
The lifting/lowering speed can be
continuously adjusted with this button (adjustment range 8 mm).
Small button adjustment range = slow lifting / lowering
Large button adjustment range = fast lifting / lowering
– Avoid any abrupt lowering of the load unit.
Safety switching height
For lifting starting at approx. 1.8 m:
– Lifting stop depends on the safety frame setting
(refer to switching matrix / safety switching height).
– “Locking” the support roller (the lifting hydraulics acts on the support roller cylinder
with a noticeable alignment of the truck).
– Travel speed reduction above the safety switching height.
– Lowering the wheel-arm lift above the safety switching height.
