Step 4: Connect External Devices and Cables
•
Connect the Router to a Network for Out-of-Band Management on page 10
•
Connect the Router to a Management Console Device on page 10
•
Connect MIC Cables to the MX104 Router on page 11
Connect the Router to a Network for Out-of-Band Management
1. Turn off the power to the management device.
2. Plug one end of the Ethernet cable into the ETHERNET port on the Routing Engine.
(Figure 5 on page 10 shows the connector. Figure 6 on page 10 shows the port.)
3. Plug the other end of the cable into the network device.

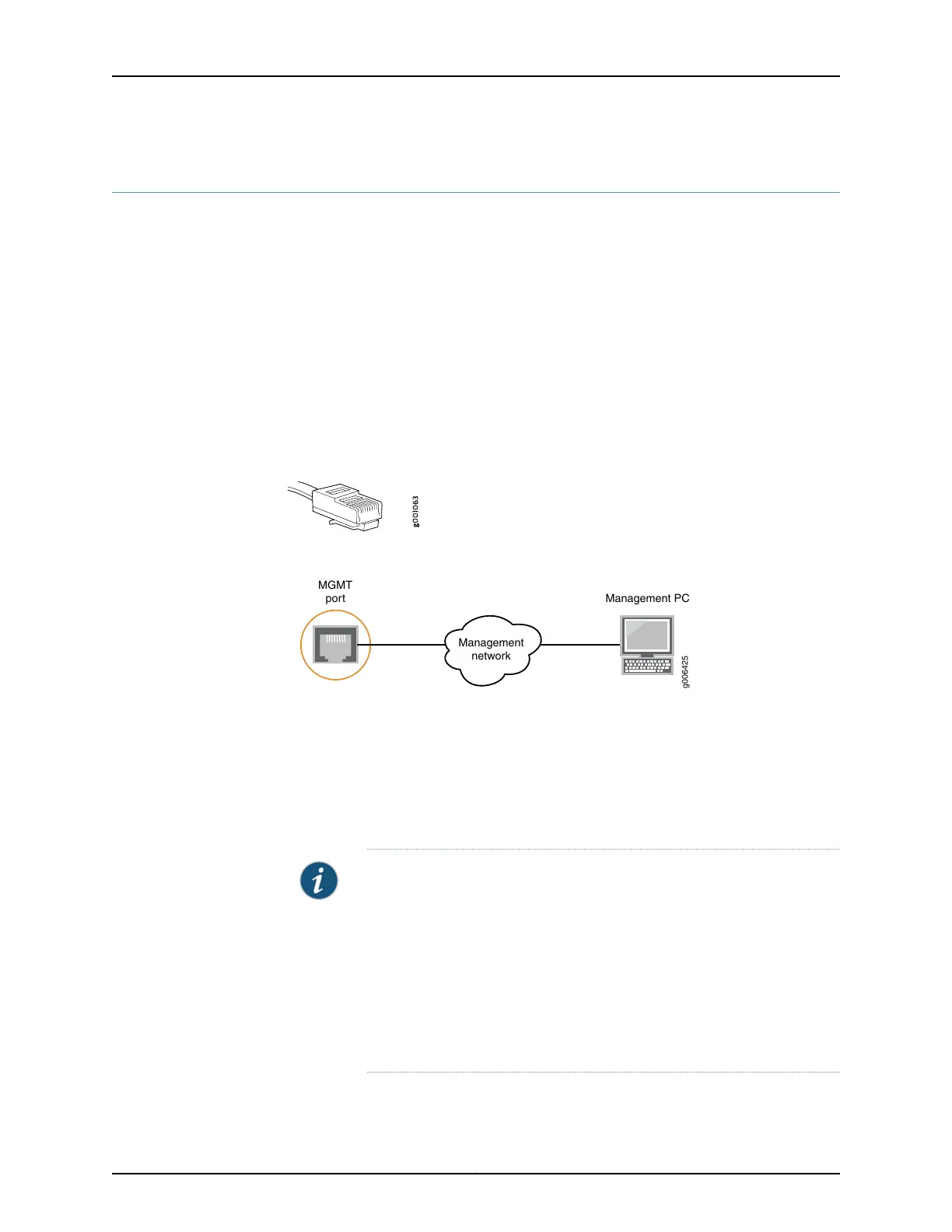

Figure 5: Ethernet Cable Connector
Figure 6: Ethernet Port
g006425
Management PC
MGMT
port
Management
network
Connect the Router to a Management Console Device
1. Turn off the power to the console or auxiliary device.
2. Plug the RJ-45 end of the serial cable into the CONSOLE port on the Routing Engine
(Figure 7 on page 11 shows the connector. Figure 8 on page 11 shows the ports.)
3. Plug the female DB-9 end into the device's serial port.
NOTE:
For console devices, configure the serial port to the following values:
•
Baud rate—9600
•
Parity—N
•
Data bits—8
•
Stop bits—1
•
Flow control—none
