JA94-N01A Dual Audio Controller - NVG
Installation and Operating Manual
Rev A Page 9

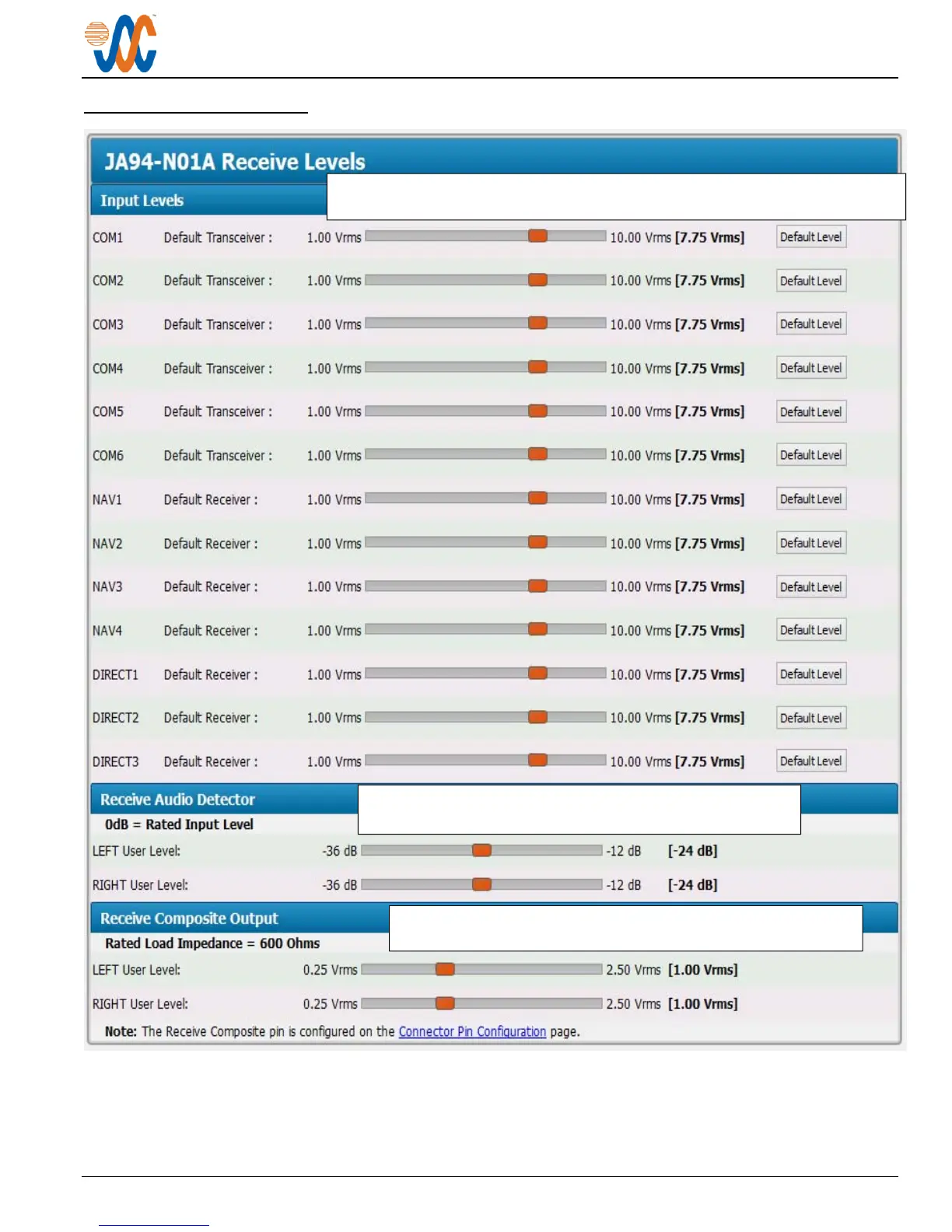

2.5.3.3 Receive Levels
The receive and direct audio input level of each of the eight RX and the three
DIRECT AUDIO in
p
uts can be ad
j
usted from 1 to 10 Vrms.
(
Default 7.75 Vrms
)
The Receive Audio Detector threshold can be adjusted from
-36 to -12 dB of rated input level. (Default -24 dB)
The level of the receive composite audio output (RX COMP OUT)
can be ad
j
usted from 0.25 to 2.5 Vrms.
(
Default 1.00 Vrms
)
