JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.

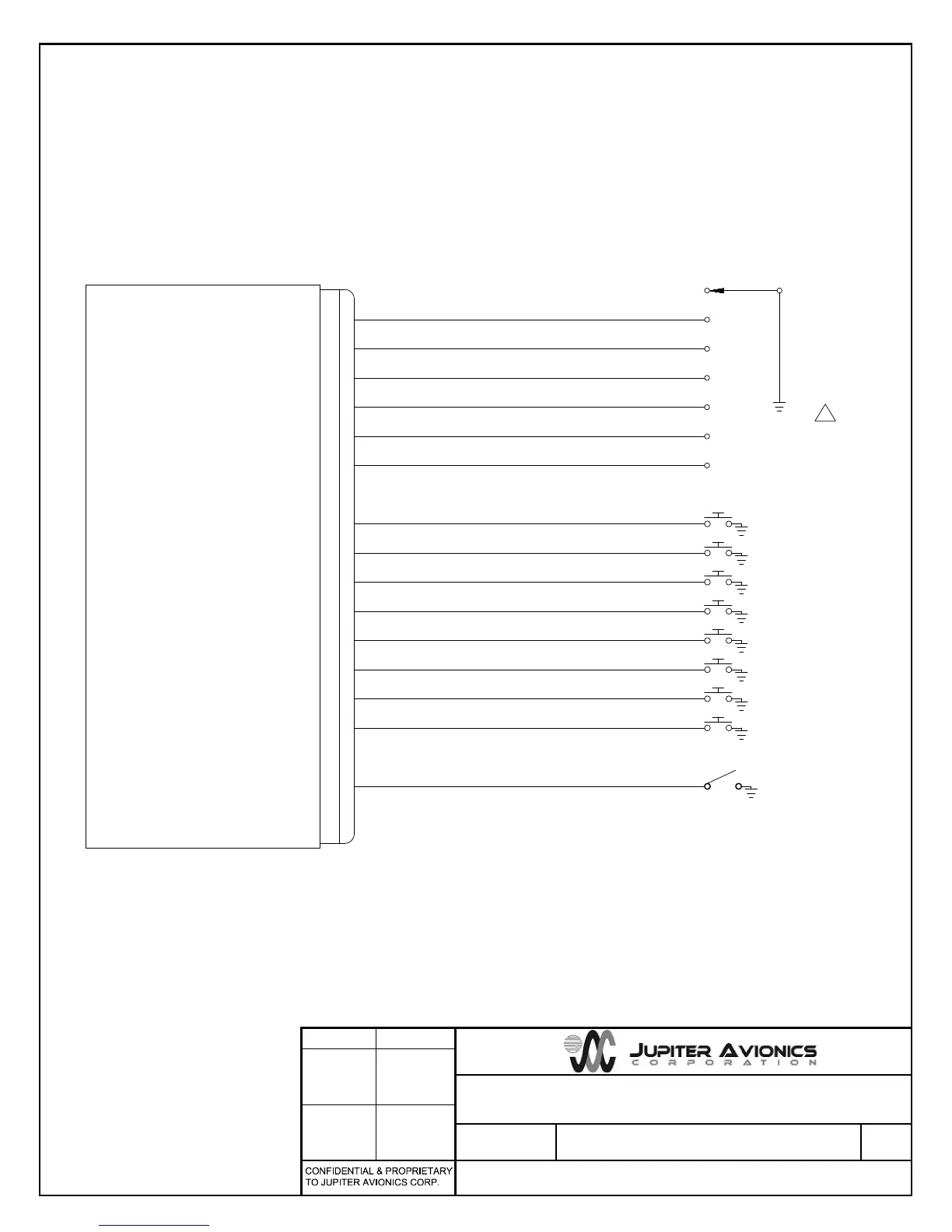

Dual Audio Controller - NVG
J3 Interconnect
JA94-N01A 4/6
JA94-N01A Interconnect Rev A.dwg
TAT
JA94-N01A J3
P3
15 PIN FEMALE DMIN
MATING CONNECTOR
COM 1 REMOTE TX SELECT 1
COM 2 REMOTE TX SELECT 2
COM 3 REMOTE TX SELECT 3
COM 4 REMOTE TX SELECT 4
COM 5 REMOTE TX SELECT 5
PAX 1 TX PTT 7
PAX 2 TX PTT 8
PAX 1 ICS PTT 9
PAX 2 ICS PTT 10
PAX 3 ICS PTT 11
PARKED POSITION
REMOTE TX
SELECTOR
15ICS ISOLATE MODE
ICS ISOLATION
2
COM 6 REMOTE TX SELECT 6
PAX 4 ICS PTT 12
PAX 5 ICS PTT 13
PAX 6 ICS PTT 14
PAX 1 TX PTT
PAX 2 TX PTT
PAX 1 ICS PTT
PAX 2 ICS PTT
PAX 3 ICS PTT
PAX 4 ICS PTT
PAX 5 ICS PTT
PAX 6 ICS PTT
