Jura IMPRESSA A5 OT User Manual

Elektroapparate AG
Disassembling manual
Technical Support
Language
EN
ENA Micro line / IMPRESSA A line
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Demontage_ENA_Micro_EN.docx
L:\Geräte\Linie_A\A5_OT\Schulungsunterlagen\E\Demontag
e_ENA_Micro_EN.docx
Date:
Rev. G:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
06.10.2011
20.02.2014
21.03.2012
19.09.2012
14.11.2012
27.03.2013
17.09.2013
Page 22/26

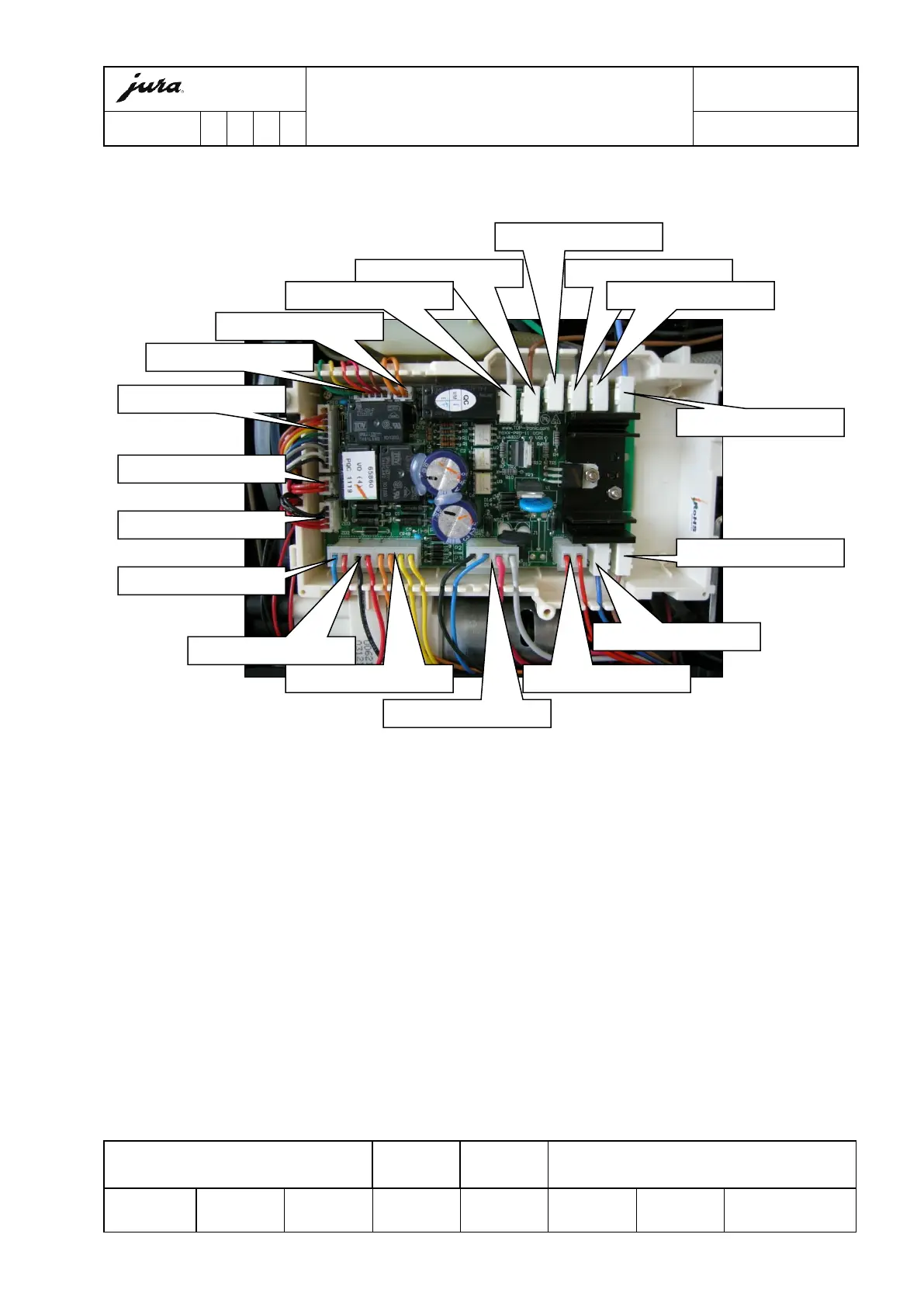

6 View power-logic print, cable wiring (ENA Micro 9 One Touch):
TM5 to supp. filter L Inp.
TM3 to heater L
TM4 to supp. filter N Out
TM1 to supp. filter L Out
TM5A to ZES
TM6 to mains L
TM2 to heater N
TM6A to ZES
CP4A to mult-valve
CP2C to tray switch
CP10 to control panel
CP5 to control panel
CP2D to grounds switch
CP4B to transformer Sec.
CP2A to multi-valve
CP2B to BU motor
CP4C to grinder/pump
CP2E to transformer Prim.
