JUTASolarChargeController Model:CM5024Z
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
NingboStar Solar Co.,Ltd Tel:(86)574 26266608 Fax:(86)574 26266618 56664636 Email:Sales@pvsolarchina.com Http://www.pvsolarchina.com

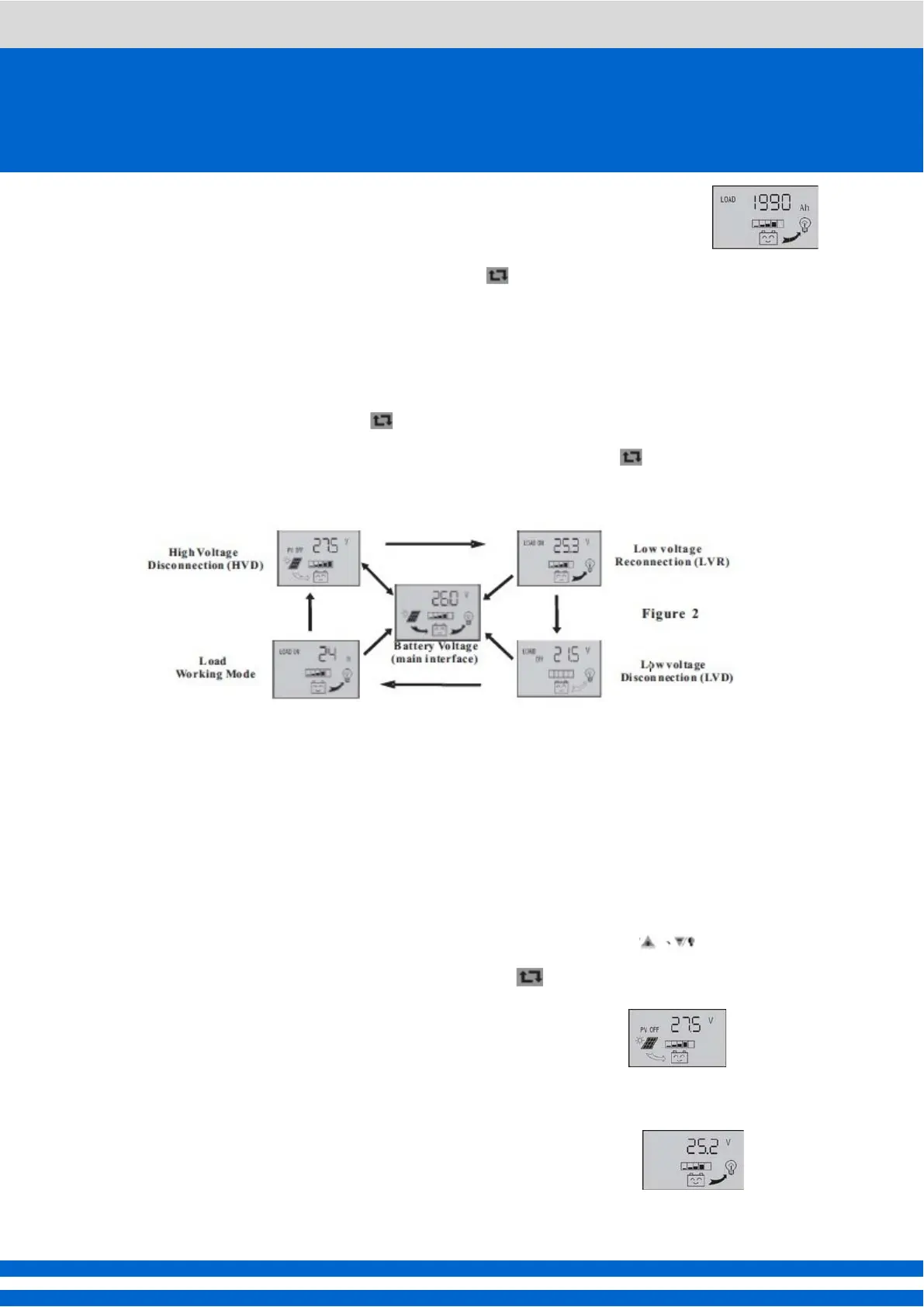

Back to zero
As shown on the right, display the accumulated discharging power
for loads (Total ampere hour), long press the button more than 5seconds,
the value willback to zero.
4 Set the parameters
At the main interface press for long ( 5 seconds, and the number starts
flickering) to enter into parameter Setting interface. Press for short ( 1
second) to reset the parameter, and press to adjust this parameter.
4.1 Set the High Voltage Disconnection
As shown on the right, shows the values for the HVD voltage. When the
battery voltageis reach to HVD voltage, the controller will cut off the charging
circuit to prevent over-charging battery. Battery voltage drops under the value
the chargingcircuit will be re-connected.
In this interface numbers start flashing, you can use the key to
adjust the parameter. After long press the key （ ＞5seconds） to exit
parameter
Setting interface, the controller will save the settings.
4.2 Set the Low Voltage Reconnection
As shown on the right, shows the values for the LVR
voltage. Under the LVR protection in the controller, when
the battery voltage is restored to the higher Voltage than
LVR voltage, the controller will re-connect the load circuit.
7
