JVC A-GX1 Service Manual

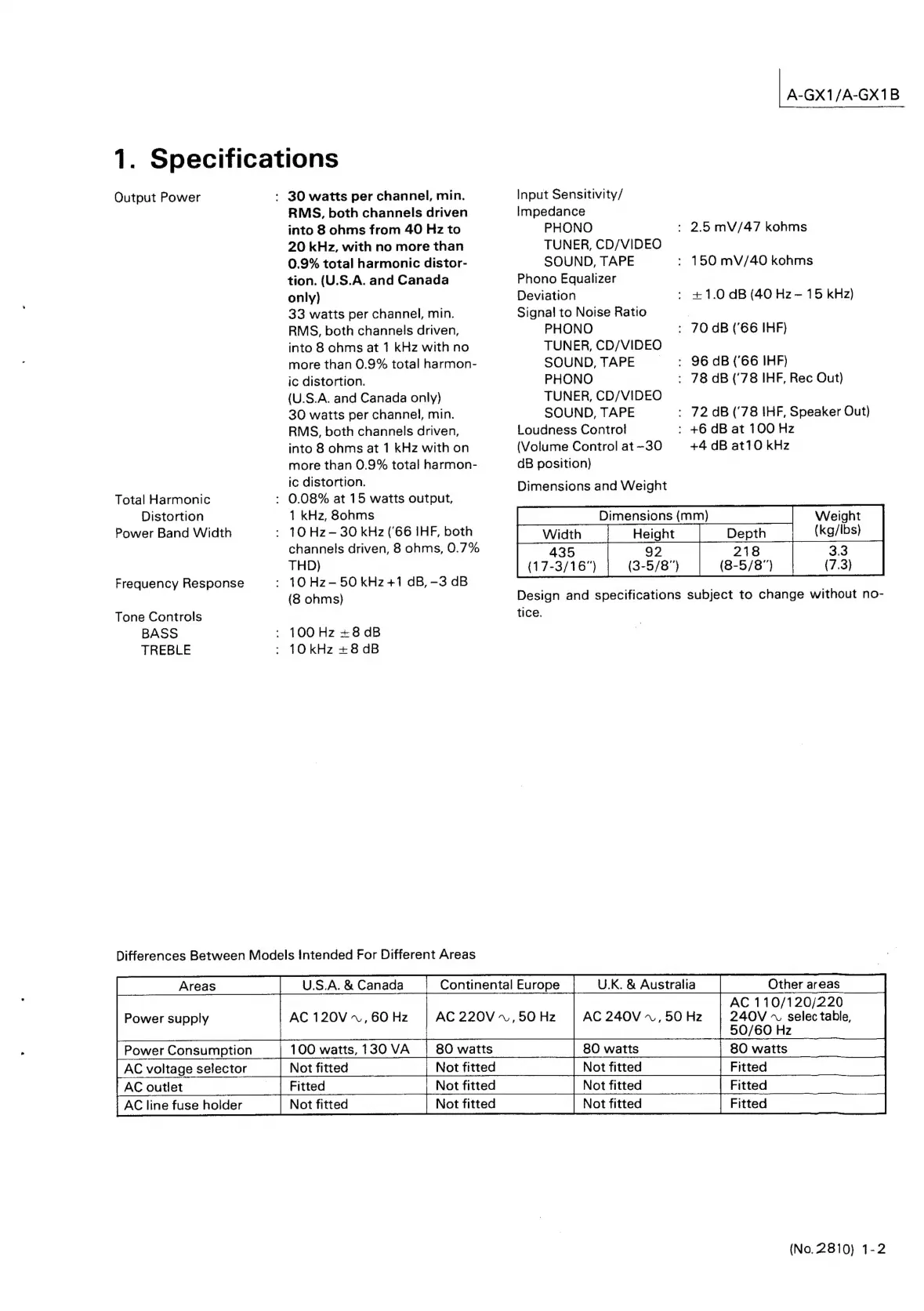

1. Specifications
: 30 watts per channel, min.
RMS, both channels driven
into 8 ohms from 40 Hz to
20 kHz, with no more than
0.9% total harmonic distor-
tion. (U.S.A. and Canada
only)
33 watts per channel, min.
RMS, both channels driven,
into 8 ohms at 1 kHz with no
more than 0.9% total harmon-
ic distortion.
(U.S.A. and Canada only)
30 watts per channel, min.
RMS, both channels driven,
into 8 ohms at 1 kHz with on
more than 0.9% total harmon-
Output Power
ic distortion.
Total Harmonic : 0.08% at 15 watts output,
Distortion 1 kHz, 8ohms
- 1O0Hz— 30 kHz (‘66 IHF, both
channels driven, 8 ohms, 0.7%
Power Band Width
THD)
Frequency Response : 10Hz-50 kHz +1 dB,-3 dB
(8 ohms)
Tone Controls
BASS : 100 Hz +8 dB
TREBLE > 10kHz +8 dB
Differences Between Models Intended For Different Areas
AC voltage selector Not fitted
U.S.A. & Canada Continental Europe U.K. & Australia
AC 220V ~, 50 Hz AC 240V ~, 50 Hz 240V ~ selec table,
50/60 Hz
100 watts, 130 VA
Fitted
AC line fuse holder Not fitted
A-GX1/A-GX1B
Input Sensitivity/
Impedance
PHONO : 2.5 mV/47 kohms
TUNER, CD/VIDEO
SOUND, TAPE : 150 mV/40 kohms
Phono Equalizer
Deviation > +1.0 dB (40 Hz— 15 kHz)
Signa! to Noise Ratio |
PHONO : 70 dB (66 IHF)
TUNER, CD/VIDEO
SOUND, TAPE ~— _: 96dB (‘66 IHF)
PHONO : 78 dB ('78 IHF, Rec Out)
TUNER, CD/VIDEO
SOUND, TAPE : 72 dB (‘78 IHF, Speaker Out)
: +6 dB at 100 Hz
+4 dB at10 kHz
Loudness Control
(Volume Control at -30
dB position)
Dimensions and Weight
Weight
(kg/lbs)
435 92 218 3.3
oa
Design and specifications subject to change without no-
tice.
AC 110/120/220
Not fitted
(No. 2810) 1-2
