Connections 7

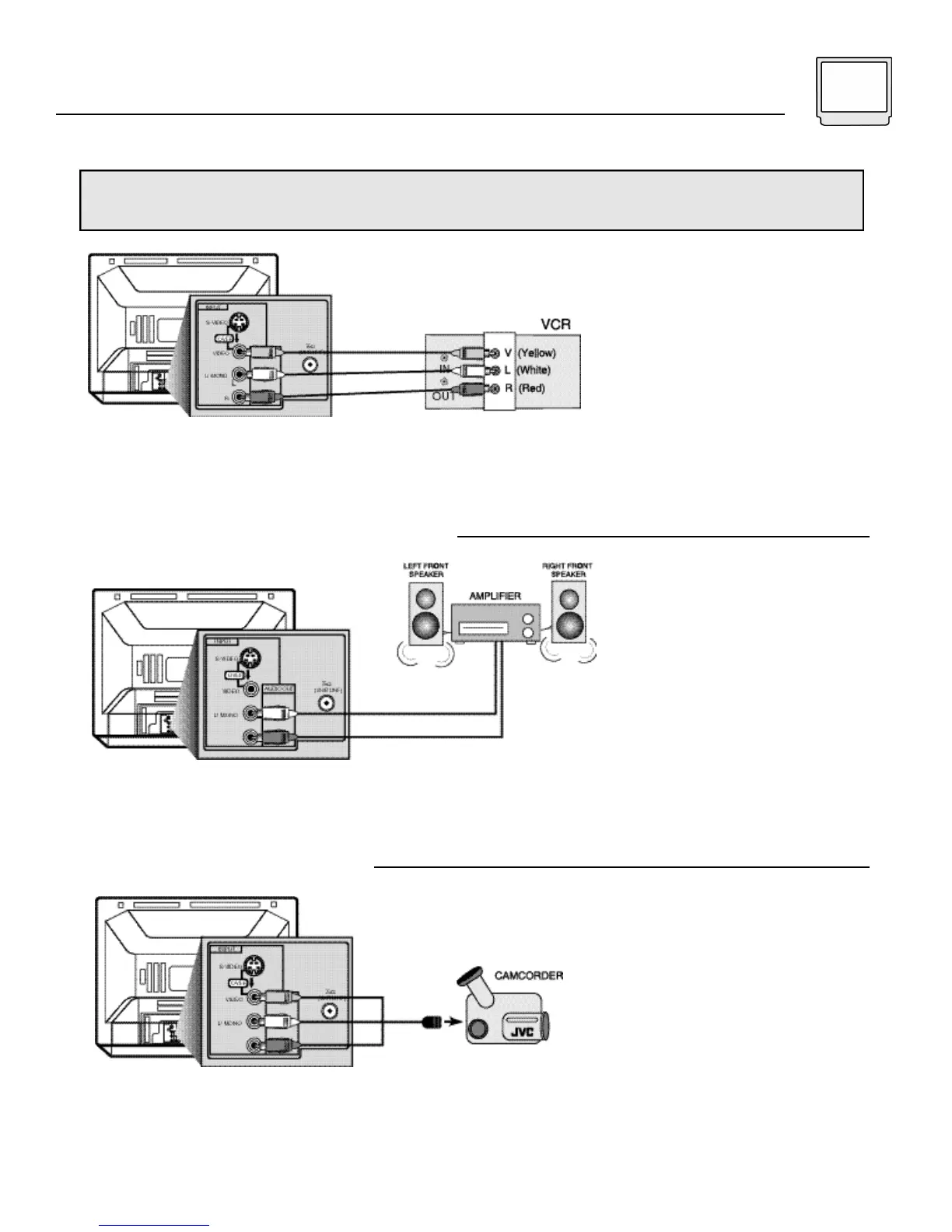

For models AV-27120, AV-20120 and AV-20121 only. Use the connection diagram below to get stereo
sound from a stereo VCR.
1) Connect the yellow video cable
from the VCR’s Video Output
jack to the TV’s Video Input
jack.
2) Connect the white (or black)
audio cable from the VCR’s
Left Audio Output jack to the
TV’s Left Audio Input jack.
3) Connect the red audio cable
from the VCR’s Right Audio
Output jack to the TV’s Right
Audio Input jack.
For Stereo Models (AV-27120,
AV-20120, AV-20121) Only.
1) Connect the white audio cable
from the TV’s Left Audio
Output jack to the Amplifier’s
Left Audio Input jack.
2) Connect the red audio cable
from the TV’s Right Audio
Output jack to the Amplifier’s
Right Audio Input jack.
1) Connect the white audio cable
from the Camcorder’s Left
Audio Output jack to the TV’s
Left Audio Input jack.
2) If you have both a stereo
Camcorder and TV, connect
the red audio cable from the
Camcorder’s Right Audio
Output jack to the TV’s Right
Audio Input jack.
3) Connect a yellow video cable
from the Camcorder’s Video
Output to the TV’s Video Input
jack.
Audio/Video Connections - Stereo
Illustration of AV-27120
Illustration of AV-27120
Illustration of AV-27120
Connecting to a Camcorder
Connecting to an External Amplifier
Notes
• If your VCR is mono it will have only one Audio Out jack.
• Refer to the VCR’s instructions for more information on its operation.
Notes
• Refer to the Amplifier’s instructions for more information on its operation.
Notes
• Refer to the Camcorder’s instructions for more information on its operation.
