JVC AV-27F476 - Page 7

(No.YA243)1-7

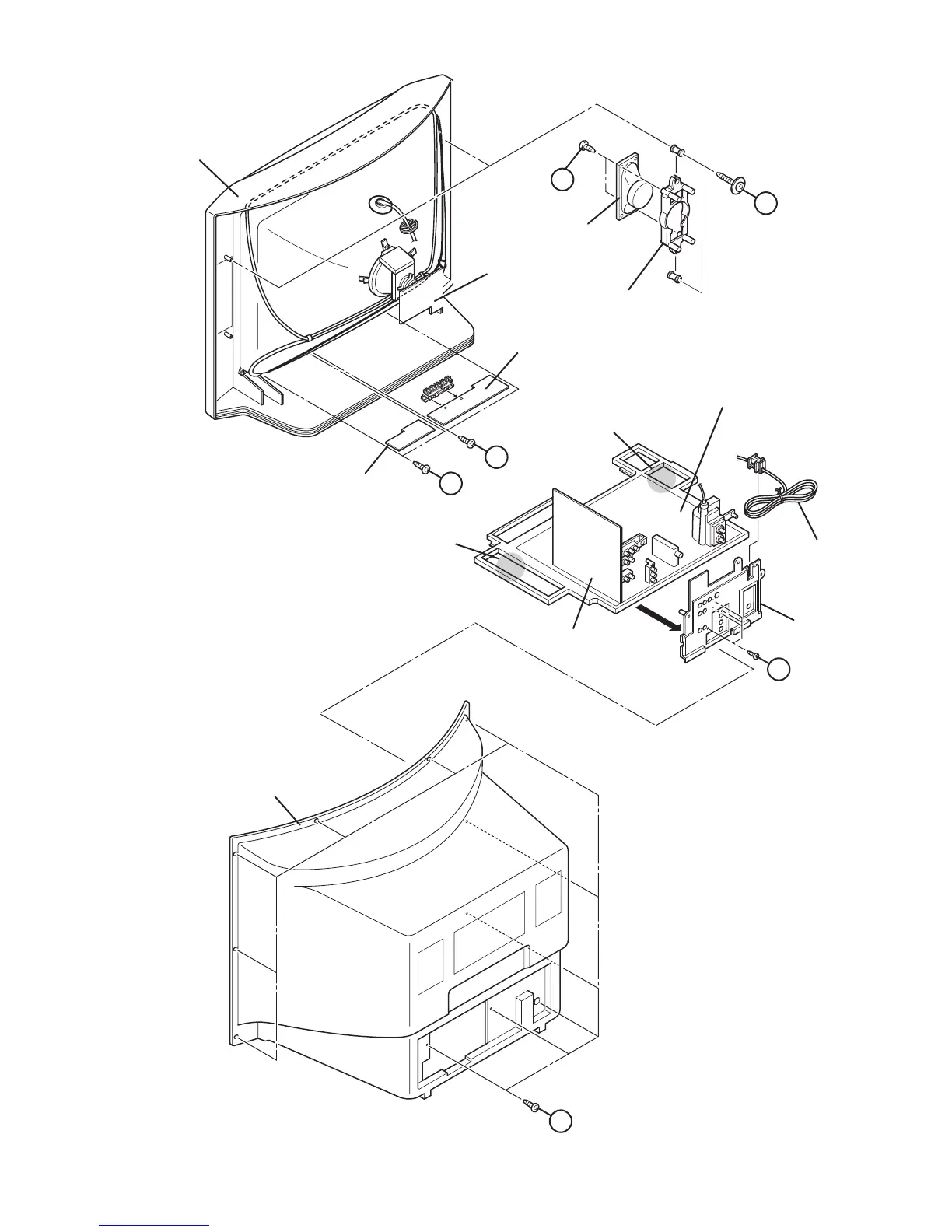

Fig.1
REAR COVER
FRONT CONTROL PWB
CRT SOCKET PWB
LED & POWER SW PWB
SPEAKER
SPEAKER HOLDER
FRONT CABINET
Claw
Claw
AV SELECTOR PWB
MAIN PWB
AV TERMINAL
BOARD
POWER CORD
C
F
B
A
E
D
