INPUT 4
S VIDEOVIDEO
INPUT 1
R L MONO
AUDIO
OVER
R L MONO
R
L
75Ω
(VHF / UHF)
AUDIO
COMPONENT
VIDEO
COMPONENT
VIDEO
Y
P B
P R
AV COMPULINK
AUDIO OUT
INPUT 2
CABLE or ANTENNA
OUT
OR
OR
TWO-WAY
SPLITTER
VCR
IN
OUT
VLR
IN
OUT OUT

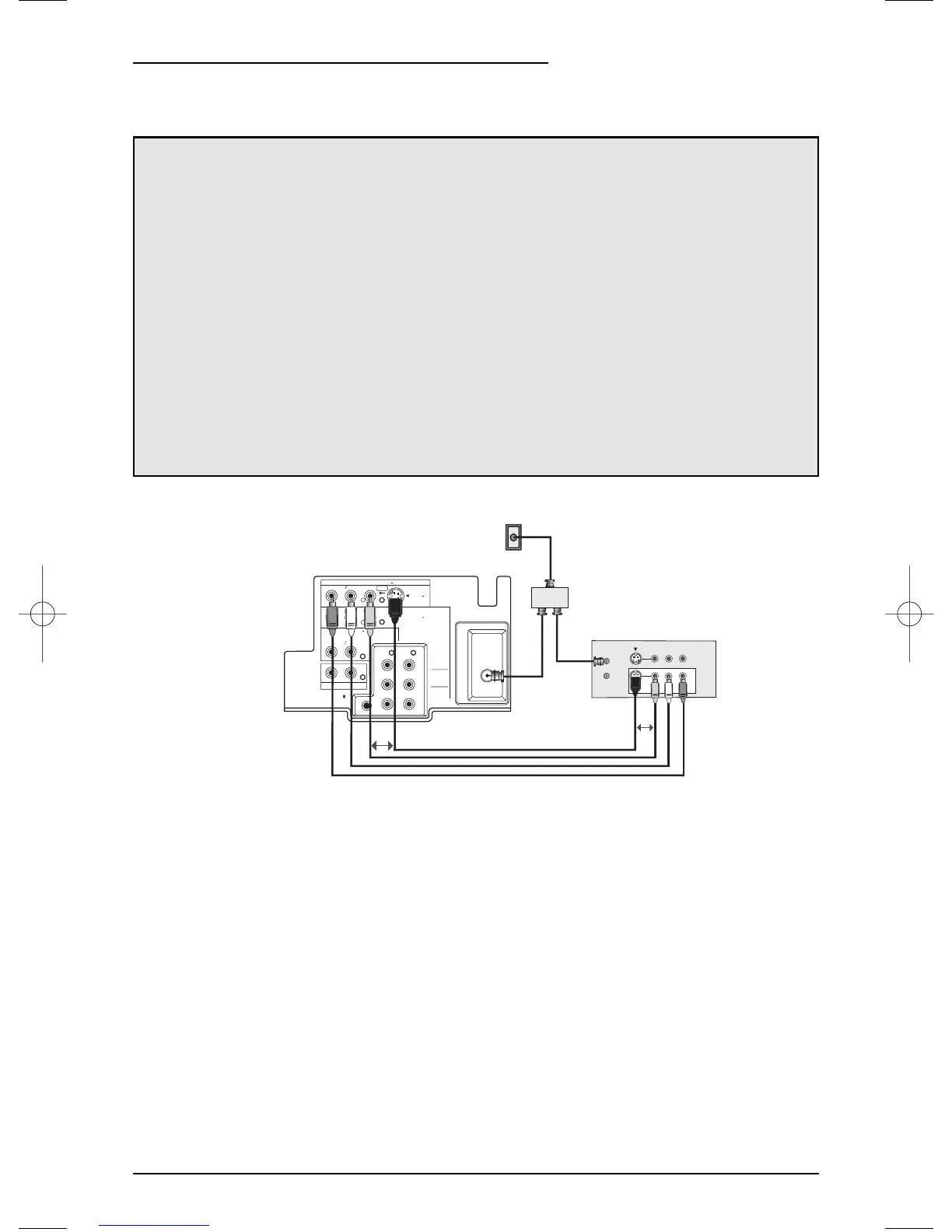

Connections
1) Connect the antenna or cable TV wire from the wall outlet, in to the RF Input of the two-way
splitter.
2) Connect an RF cable from the one of the RF Outputs on the splitter, in to the RF Input on
the back of the VCR.
3) Connect an RF cable from the other the RF Output on the splitter, in to the RF Input on the
back of the TV.
4) Connect the yellow video cable out from the VCR’s Video Output, in to the TV’s Video Input
jack, OR connect an S-Video cable from the VCR’s S-Video output, to the TV’s S-Video
input.
5) Connect the white audio cable out from the VCR’s Left Audio Output, in to the TV’s Left
Audio Input Jack.
6) Connect the red audio cable out from the VCR’s Right Audio Output, in to the TV’s Right
Audio Input jack.
• If your VCR is a mono sound unit, it will have only one Audio Out jack. Connect it to the
TV’s Left Audio Input.
• Please consult your VCR’s owner’s manual for more information on its operation.
There are three basic types of antenna or cable connections:
• If you have an antenna or have a cable system that does not require you use a cable box
to select channels, please refer to Diagram #1.
• If you have a cable system that requires the use of a cable box to access all the channels,
please refer to Diagram #2. If you cannot operate your Picture-In-Picture function using
Diagram #2, try the connection shown in Diagram #3. It is possible your cable box allows
the signal of only one channel at a time to be sent to your television.
• If you have a cable system that requires the use of a cable box to access certain premium
channels, but not “basic” cable channels, please refer to Diagram #3.
• For your convenience, connection to a VCR is also shown in the following diagrams. A
VCR is not necessary for operation of the television or Picture-In-Picture (PIP) func-
tion.You may omit the VCR from your connections if you wish.
• For instructions on connecting a VCR only, please see the Quick Setup on page 11.
• For information on using PIP, please see page 47.
• The PIP feature is available on models AV-36F803, AV-32F803 and AV-27F803 only.
Cable and VCR Connections
13
Diagram #1
Illustration of AV-27F803
AV-27,32,36F703/713/803 English 6/14/02 5:07 PM Page 13
