Speaker Arrangements for Dolby Surround
The following illustrations show how to obtain the optimum sound environment for various Dolby Surround
settings. Try to find the speaker direction and location to create the optimum sound field.

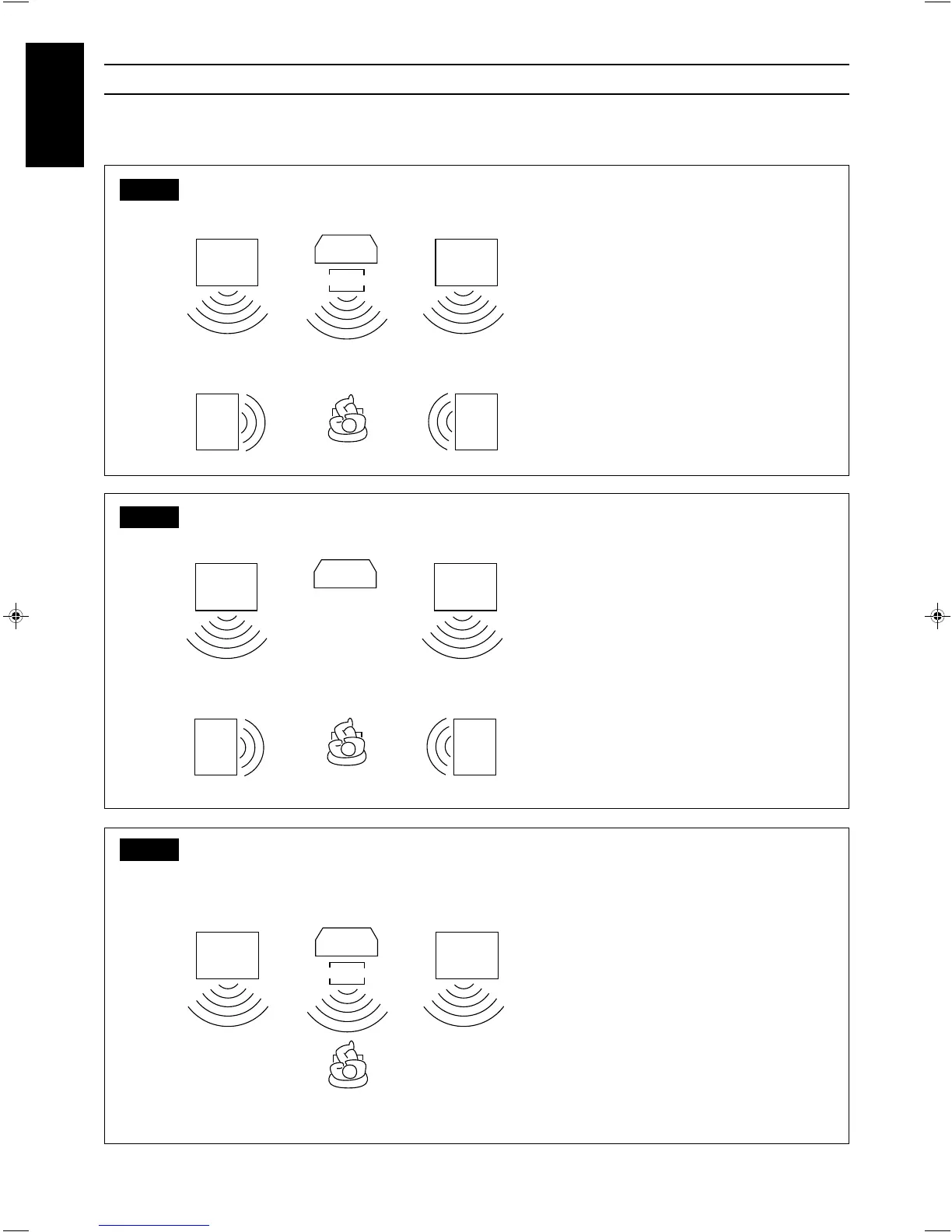

CASE 1 When you have added a center speaker and rear speakers
CASE 2 When you have added rear speakers (without a center speaker)
CASE 3 When you have added a center speaker (without rear speakers)
In this case:
1. Select “PROLOGIC.”
2. Select “PHANTOM” for center mode.
See pages 20 to 22 for more details.
In this case:
1. Select “PROLOGIC.”
2. Select “NORMAL” or “WIDE” for center mode.
See pages 20 to 22 for more details.
In this case:
1. Select “3CHLOGIC.”
2. Select “NORMAL” or “WIDE” for center mode.
See pages 20 to 22 for more details.
TV
Front
Speaker
Front
Speaker
Rear
Speaker
Center Speaker
Rear
Speaker
TV
Front
Speaker
Front
Speaker
Center Speaker
TV
Front
Speaker
Front
Speaker
Rear
Speaker
Rear
Speaker
