CA-MX55MBK |

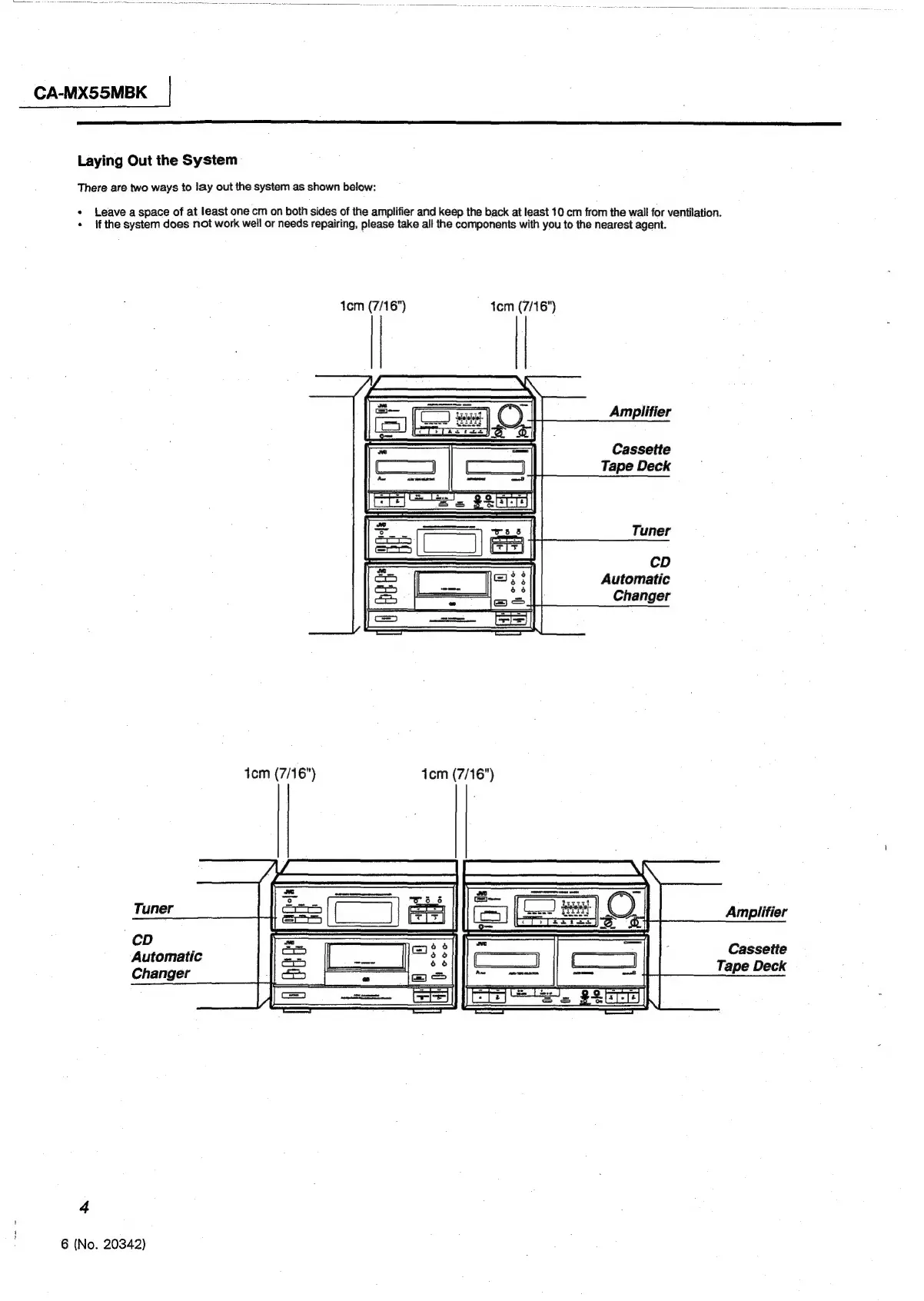

Laying Out the System
There are two ways to lay out the system as shown below:
¢ Leave a space of at least one cm on both sides of the amplifier and keep the back at least 10 cm from the wall for ventilation.
¢ if the system does not work well or needs repairing, please take all the components with you to the nearest agent.
tom (7/16") fem (7/16")
Amplifier
Cassette
Tape Deck
Tuner
CD
Automatic
Changer
tom (7/16") icm (7/16")
Amplifier
CD
Automatic
Changer
Cassette
Tape Deck
4
6 (No. 20342)
