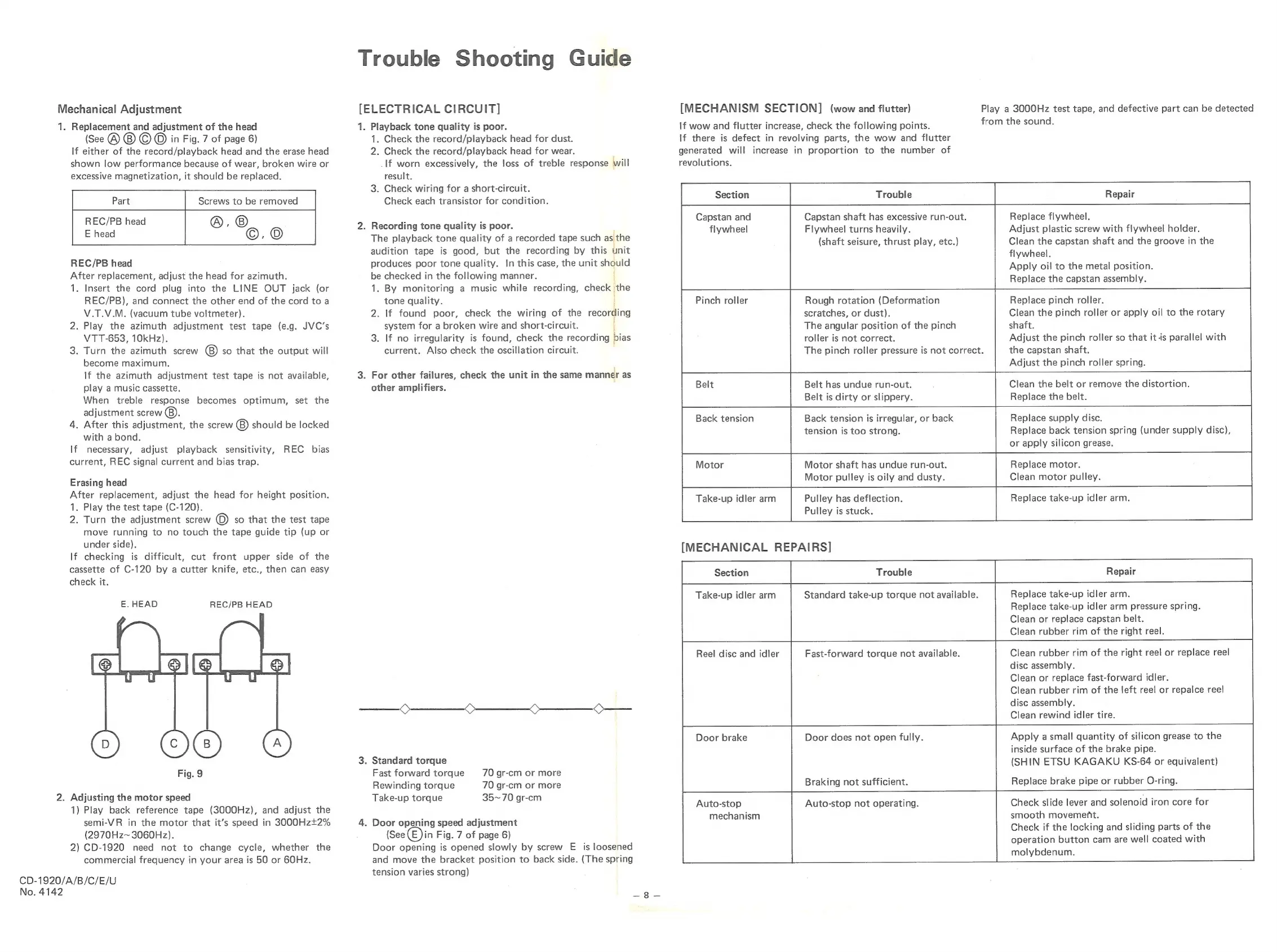

Mechanical
Adjustment
1.
Replacement
and
adjustment
of
the
head
2.
(See
@
®@
©
O
in
Fig.
7
of
page
6)
If
either
of
the
record/playback
head
and
the
erase
head
shown
low
performance
because
of
wear,
broken
wire
or
excessive
magnetization,
it
should
be
replaced.
Screws
to
be
removed
REC/PB
head
E
head
REC/PB
head
After
replacement,
adjust
the
head
for
azimuth.
1.
Insert
the
cord
plug
into
the
LINE
OUT
jack
(or
REC/PB),
and
connect
the
other
end
of
the
cord
to
a
V.T.V.M.
(vacuum
tube
voltmeter).
2.
Play
the
azimuth
adjustment
test
tape
(e.g.
JVC’s
VTT-653,
10kHz).
3.
Turn
the
azimuth
screw
so
that
the
output
will
become
maximum.
If
the
azimuth
adjustment
test
tape
is
not
available,
play
a
music
cassette.
When
treble
response
becomes
optimum,
set
the
adjustment
screw
(@).
4.
After
this
adjustment,
the
screw
@)
should
be
locked
with
a
bond.
If
necessary,
adjust
playback
sensitivity,
current,
REC
signal
current
and
bias
trap.
REC
_
bias
Erasing
head
After
replacement,
adjust
the
head
for
height
position.
1.
Play
the
test
tape
(C-120).
2.
Turn
the
adjustment
screw
©
so
that
the
test
tape
move
running
to
no
touch
the
tape
guide
tip
(up
or
under
side).
If
checking
is
difficult,
cut
front
upper
side
of
the
cassette
of
C-120
by
a
cutter
knife,
etc.,
then
can
easy
check
it.
REC/PB
HEAD
Adjusting
the
motor
speed
1)
Play
back
reference
tape
(3000Hz),
and
adjust
the
semi-VR
in
the
motor
that
it’s
speed
in
3000Hz+2%
(2970Hz~
3060Hz).
2)
CD-1920
need
not
to
change
cycle,
whether
the
commercial
frequency
in
your
area
is
50
or
60Hz.
CD-1920/A/B/C/E/U
No.
4142
Trouble
Shooting
Guide
[ELECTRICAL
CIRCUIT]
1.
Playback
tone
quality
is
poor.
1.
Check
the
record/playback
head
for
dust.
2.
Check
the
record/playback
head
for
wear.
If
worn
excessively,
the
loss
of
treble
response
will
result.
3.
Check
wiring
for
a
short-circuit.
Check
each
transistor
for
condition.
2.
Recording
tone
quality
is
poor.
The
playback
tone
quality
of
a
recorded
tape
such
as
the
audition
tape
is
good,
but
the
recording
by
this
unit
produces
poor
tone
quality.
In
this
case,
the
unit
should
be
checked
in
the
following
manner.
‘
1.
By
monitoring
a
music
while
recording,
check
the
tone
quality.
|
2.
If
found
poor,
check
the
wiring
of
the
recording
system
for
a
broken
wire
and
short-circuit.
3.
If
no
irregularity
is
found,
check
the
recording
bias
current.
Also
check
the
oscillation
circuit.
3.
For
other
failures,
check
the
unit
in
the
same
manner
as
other
amplifiers.
a
a
3.
Standard
torque
70
gr-cm
or
more
70
gr-cm
or
more
35~
70
gr-cm
Fast
forward
torque
Rewinding
torque
Take-up
torque
4.
Door
opening
speed
adjustment
(See
in
Fig.
7
of
page
6)
Door
opening
is
opened
slowly
by
screw
E
is
loosened
and
move
the
bracket
position
to
back
side.
(The
spring
tension
varies
strong)
[MECHANISM
SECTION]
(wow
and
flutter)
If
wow
and
flutter
increase,
check
the
following
points.
If
there
is
defect
in
revolving
parts,
the
wow
and
flutter
generated
will
increase
in
proportion
to
the
number
of
revolutions.
es
Capstan
and
flywheel
Pinch
roller
Take-up
idler
arm
[MECHANICAL
REPAIRS]
Take-up
idler
arm
Standard
take-up
torque
not
available.
Play
a
3000Hz
test
tape,
and
defective
part
can
be
detected
from
the
sound.
Capstan
shaft
has
excessive
run-out.
Flywheel
turns
heavily.
(shaft
seisure,
thrust
play,
etc.)
Replace
flywheel.
Adjust
plastic
screw
with
flywheel
holder.
Clean
the
capstan
shaft
and
the
groove
in
the
flywheel.
Apply
oil
to
the
metal
position.
Replace
the
capstan
assembly.
Rough
rotation
(Deformation
scratches,
or
dust).
The
angular
position
of
the
pinch
roller
is
not
correct.
The
pinch
roller
pressure
is
not
correct.
Replace
pinch
roller.
Clean
the
pinch
roller
or
apply
oil
to
the
rotary
shaft.
Adjust
the
pinch
roller
so
that
it-is
parallel
with
the
capstan
shaft.
Adjust
the
pinch
roller
spring.
Clean
the
belt
or
remove
the
distortion.
Replace
the
belt.
Belt
has
undue
run-out.
;
Belt
is
dirty
or
slippery.
Back
tension
is
irregular,
or
back
tension
is
too
strong.
Replace
supply
disc.
Replace
back
tension
spring
(under
supply
disc),
or
apply
silicon
grease.
Motor
shaft
has
undue
run-out.
Motor
pulley
is
oily
and
dusty.
Replace
motor.
Clean
motor
pulley.
Pulley
has
deflection.
Pulley
is
stuck.
Replace
take-up
idler
arm.
Replace
take-up
idler
arm.
Replace
take-up
idler
arm
pressure
spring.
Clean
or
replace
capstan
belt.
Clean
rubber
rim
of
the
right
reel.
Reel
disc
and
idler
Fast-forward
torque
not
available.
Clean
rubber
rim
of
the
right
reel
or
replace
reel
disc
assembly.
Clean
or
replace
fast-forward
idler.
Clean
rubber
rim
of
the
left
reel
or
repalce
reel
disc
assembly.
Clean
rewind
idler
tire.
Door
brake
Door
does
not
open
fully.
Apply
a
small
quantity
of
silicon
grease
to
the
inside
surface
of
the
brake
pipe.
(SHIN
ETSU
KAGAKU
KS-64
or
equivalent)
Braking
not
sufficient.
Replace
brake
pipe
or
rubber
O-ring.
Check
slide
lever
and
solenoid
iron
core
for
smooth
movement.
Check
if
the
locking
and
sliding
parts
of
the
operation
button
cam
are
well
coated
with
molybdenum.
Auto-stop
mechanism
Auto-stop
not
operating.
