CH-X1500
1-10

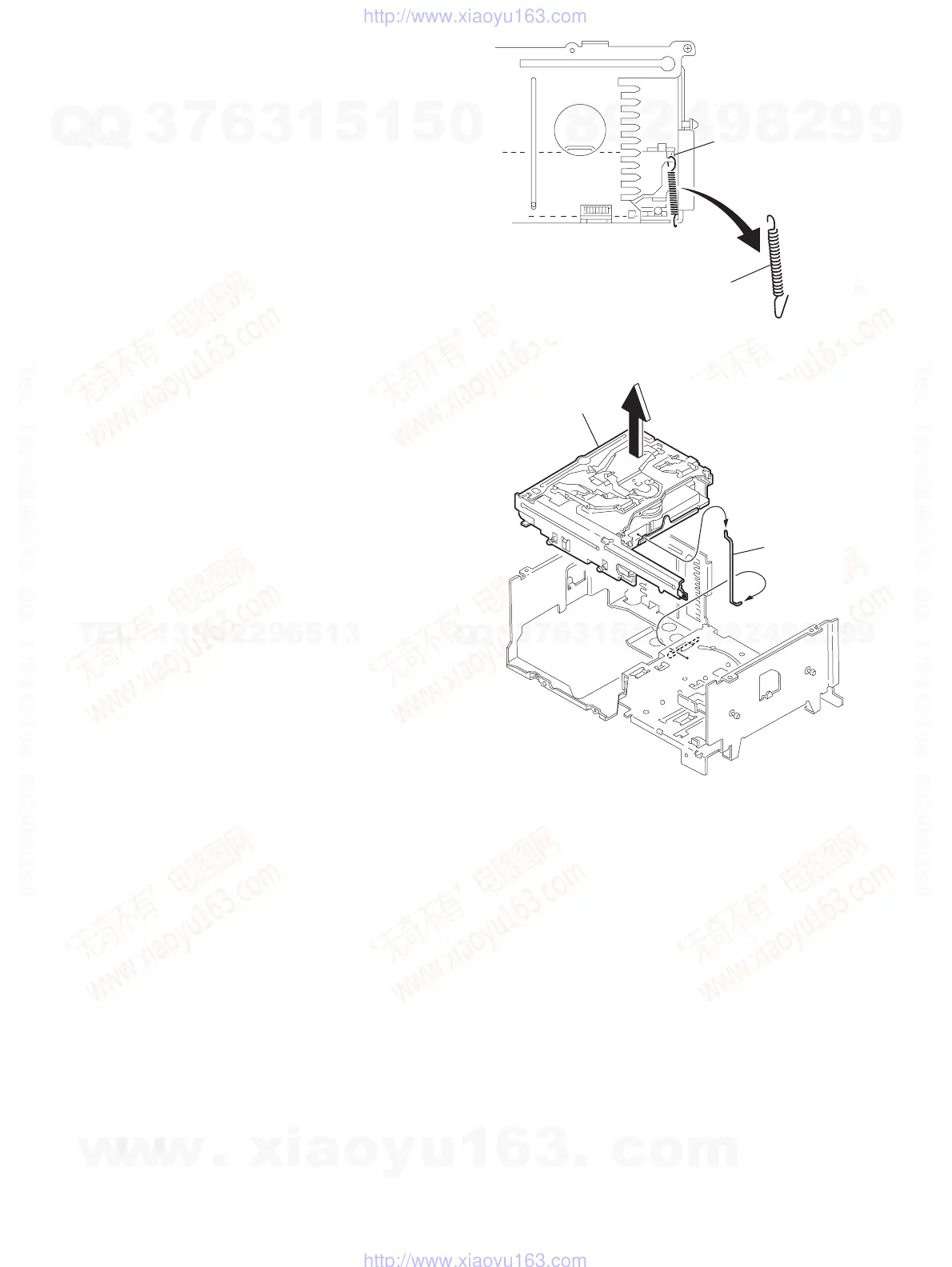

2.4.7 Remove the lifter unit (See fig.19,20)
(1) Remove the elevator spring located on the front side of the
unit. (Be sure to first remove the spring from the lifter side
as shown in the upper part of the diagram.)
(2) Lift the lifter unit upward, then remove the lower rod to re-
move the lifter unit from the chassis.
Fig.19
Fig.20
Remove this part first
Proper orientation
Elevator spring
Lower rod
Lifter unit
