English
5
When the audio components output is a single RCA
jack, use an RCA cord that converts the output into the
two RCA jacks as shown above. The subwoofer output
will be halved if the conversion cord is not used.
RCA input connection
Connect the subwoofer to the subwoofer output (non-fader output) or the RCA jacks for the front output of
the audio components.
Notes:
• Read the instruction manuals for the connected components such as the audio components as well as this instruction
manual.
• In a computer-equipped vehicle, when you remove the
⊖
terminal of the battery, the memory may disappear, or a defect
may occur in the electrical system of the vehicle. Consult your dealer for further details.
• Please purchase an RCA cord that is commercially available separately.
• When the audio components incorporates a DSP, connect the subwoofer to the subwoofer output (non-fader output) or
to the RCA jacks for the front output. Do not connect to the RCA jacks for the rear output, as the low-frequency reproduc-
tion effect may be attenuated due to the DSP effect.

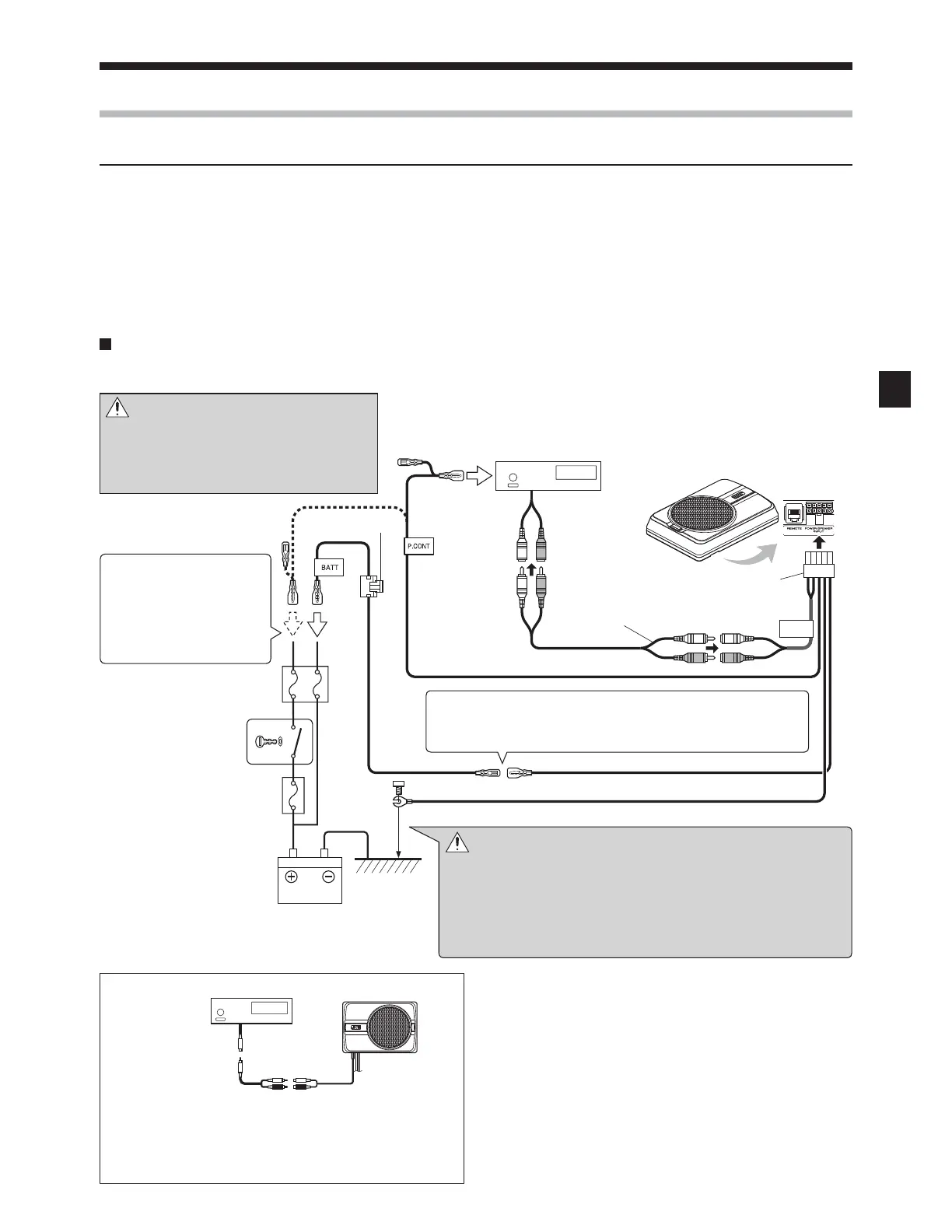

Example
The following shows a typical connection for effective car stereo enjoyment. Connect your system by referring to the example.
LINE IN
※
CW-DRA8
Audio components
(SUB WOOFER OUT,
Non-fader output)
Fuse 10A
RCA cord
(Commercially
available parts)
Audio components
RCA cord
(Commercially available parts)
Battery
Car fuse box
(Main fuse)
Car fuse box
Ignition key
switch
GND
②
10-pin connector cord
Blue/White
Yellow Yellow
Black
CW-DRA8
If there is no power con-
trol terminal in the audio
components, connect the
blue/white wire to the ac-
cessory line (ignition key
switch ACC position line).
If buzzing noise is heard from the speakers when the engine
is running, attach a line noise filter (commercially available) to
the power lead.
Caution:
Do not distribute the cords in the paths
where they may be caught by a vehicle part
or damaged. Otherwise, an electric shock or
a fire due to short-circuiting may result.
Caution:
※
Connect the black lead wire ground terminal directly with a
screw to an unpainted metal part of the vehicle. Turning the
power ON without connecting this terminal is linked to dam-
age of the stereo system. Be sure to connect it.
Also, painted metal panels etc., are not grounded and will
not function correctly. Be careful.
1ENJ.indd5 2017/12/2818:49
