6
English
Caution:
•
When making a hole under a seat, inside the trunk, or somewhere else in the vehicle, check that there is nothing hazardous
on the opposite side such as a gasoline tank, brake pipe; or wiring harness, and be careful not to cause scratches or other
damage.
• Install in a location that does not come in the way of driving, getting in or out of the vehicle and movement inside the
vehicle compartment.
• Fix the product firmly so that it will not be moved by vibrations or impacts during driving.

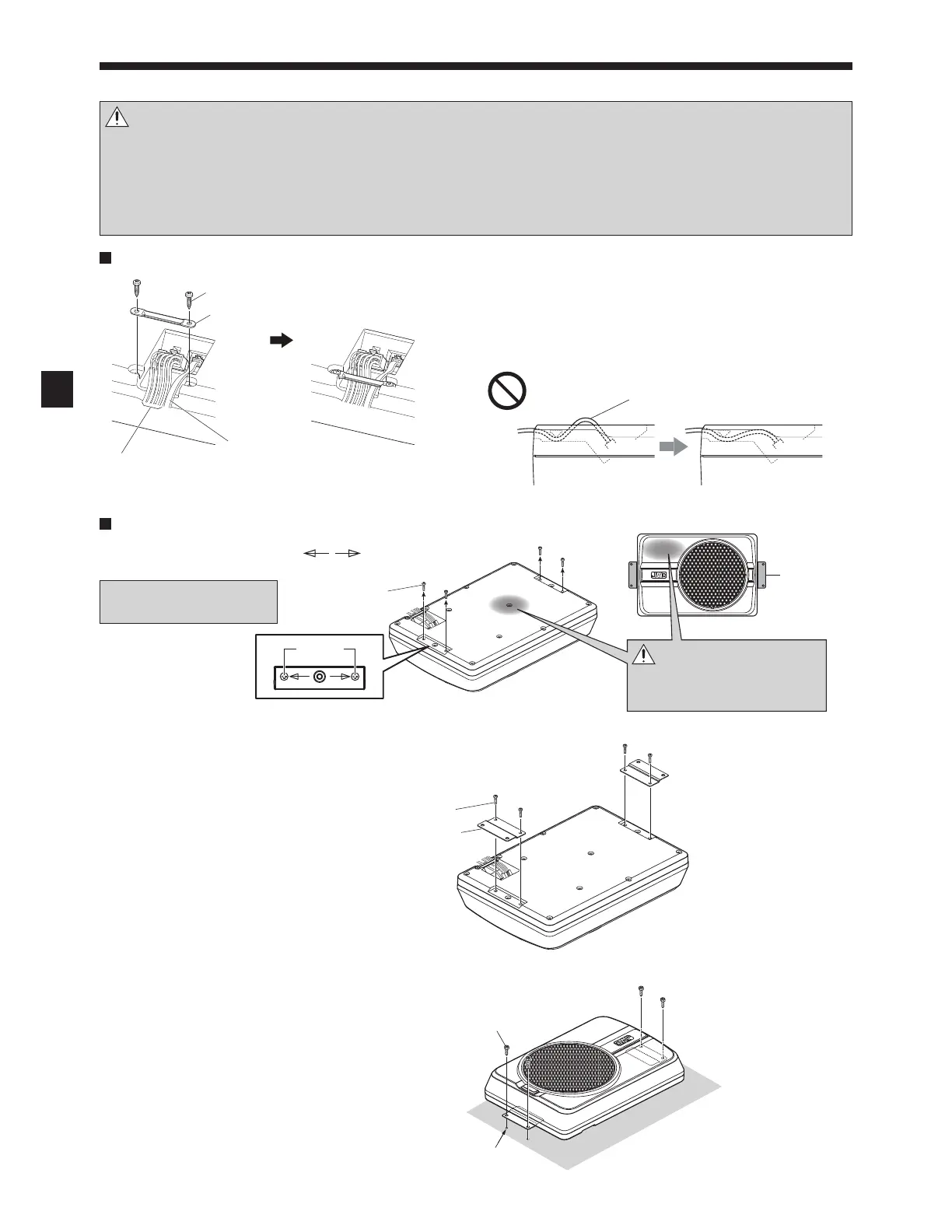

Fixing the subwoofer
❷
Attach the fixtures A
④
to the speaker unit se-
curely using the machine screws
⑦
. Be careful so
that the connected cords do not get in between
the speaker unit and fixtures A
④
.
❸
Drill the pilot holes for ø 3.6 mm (1/8”) screws on
the sheet metal section of the vehicle , and attach
the speaker unit to the vehicle using the tapping
screws
⑥
.
Installation
Before fixing the speaker in its position, be sure to check the sound while it is connected preliminary.
Fixing the cord in place
❶
Connect the 10-pin connector cord
②
and remote
control
①
to the speaker unit.
❷
Fix the cords to the speaker unit with fixture B
⑤
and fix in place with the tapping screws
⑧
.
Fix the cord so that it will not protrude
from the side of the speaker unit.
②
10-pin connector cord
①
Remote control
⑧
Tapping screw x 2
⑤
Fixture B
⑦
Machine screw x 4
④
Fixture A x 2
⑥
Tapping screw x 4
Drill four pilot holes for
ø 3.6 mm (1/8”) screws.
Prohibition!
Removed screws can not be
reused.
❶
Remove 4 screws (marked
) at the bottom
of the speaker unit.
Remove
④
Fixture A
Screw x 4
Caution:
This portion becomes hotter
than other portions. Be careful.
1ENJ.indd6 2017/12/2818:49
To Next Page
