Preparation

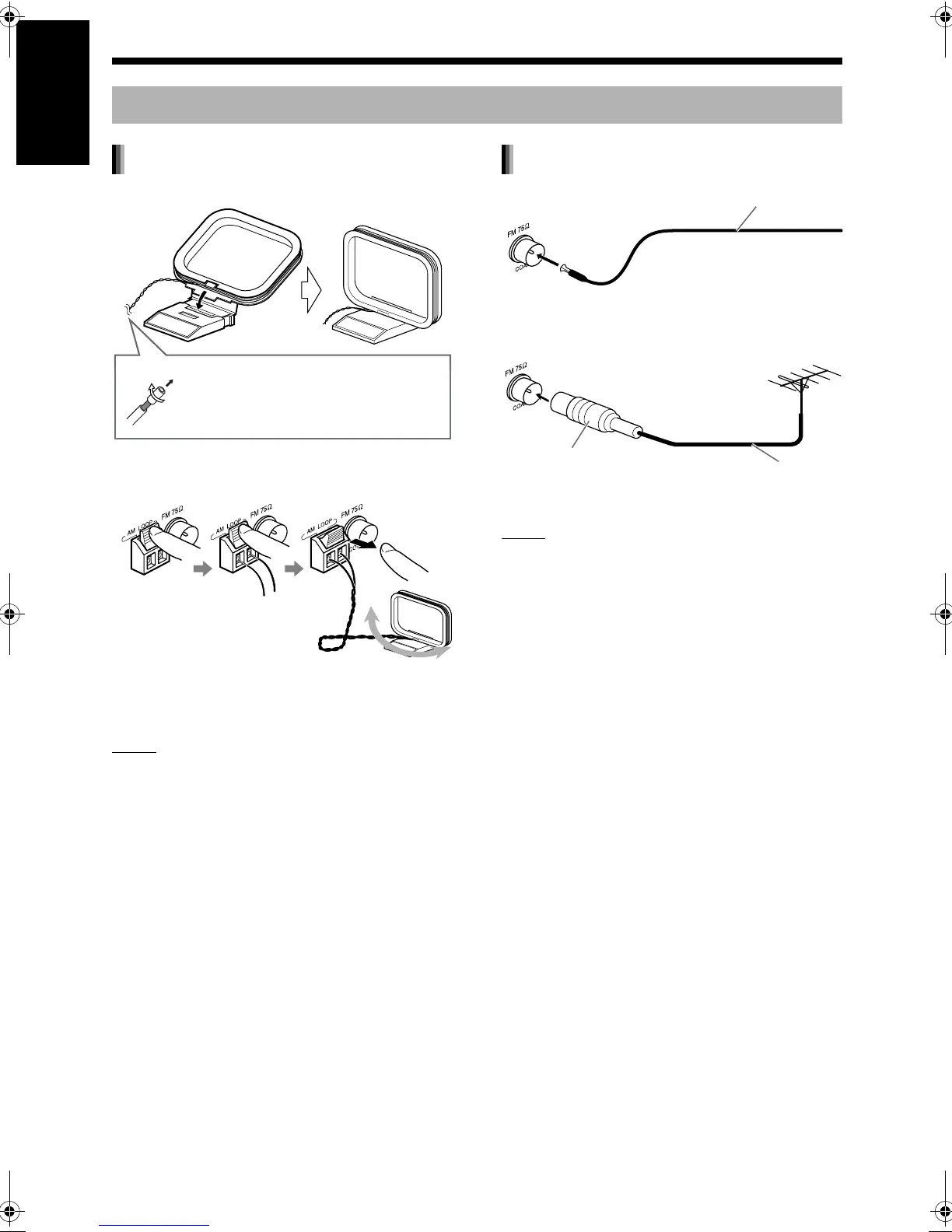

Setting up the AM loop antenna

Connecting the AM loop antenna

Turn the AM loop antenna to find the best position

for radio reception.

NOTE

• Make sure that the antenna conductors do not

touch any other terminals. This could cause poor

reception.

If reception is poor

NOTE

• A coaxial cable is recommended as it reduces

interference for FM reception.

Connecting the antennas

AM loop antenna (supplied)

If insulation covers the tips of the

antenna cable, twist and pull off

the insulation.

Main unit (rear view)

FM antenna (supplied)

Main unit (rear view)

FM antenna

Stretch out the FM

antenna horizontally.

Main unit (rear view)

Outdoor FM antenna

cable (not supplied)

Ω

coaxial connector

(not supplied)

Preparation Do not turn on the power until you complete the connection.
