Preparation

This system can output uncompressed digital

video signals to a TV compatible with HDMI (High

Definition Multimedia Interface).

Select “HDMI” for the monitor out type. (Refer to

page 13.)

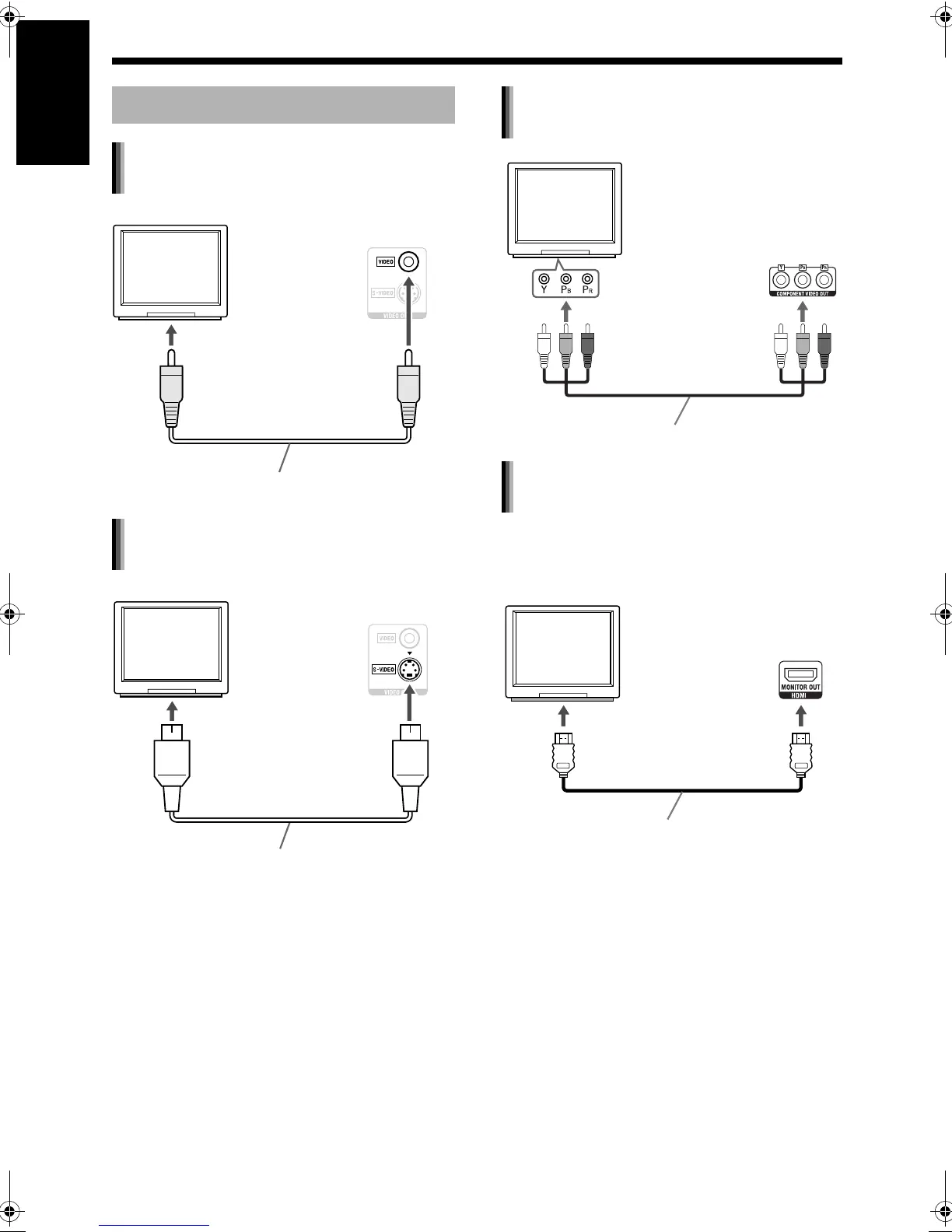

Connecting a TV

Connecting a TV with the [VIDEO]

terminal

To a video terminal

Composite video cable (supplied)

Main unit

(rear view)

Connecting a TV with the [S-VIDEO]

terminal

To an S-video terminal

S-video cable (not supplied)

Main unit

(rear view)

Connecting a TV with the

[COMPONENT VIDEO OUT] terminals

Main unit

(rear view)

To component

terminals

Component video cable (not supplied)

Connecting a TV with the [HDMI]

terminal

Main unit

(rear view)

HDMI cable (not supplied)

To an HDMI terminal

Preparation (continued) Do not turn on the power until you complete the connection.
