Preparation
18

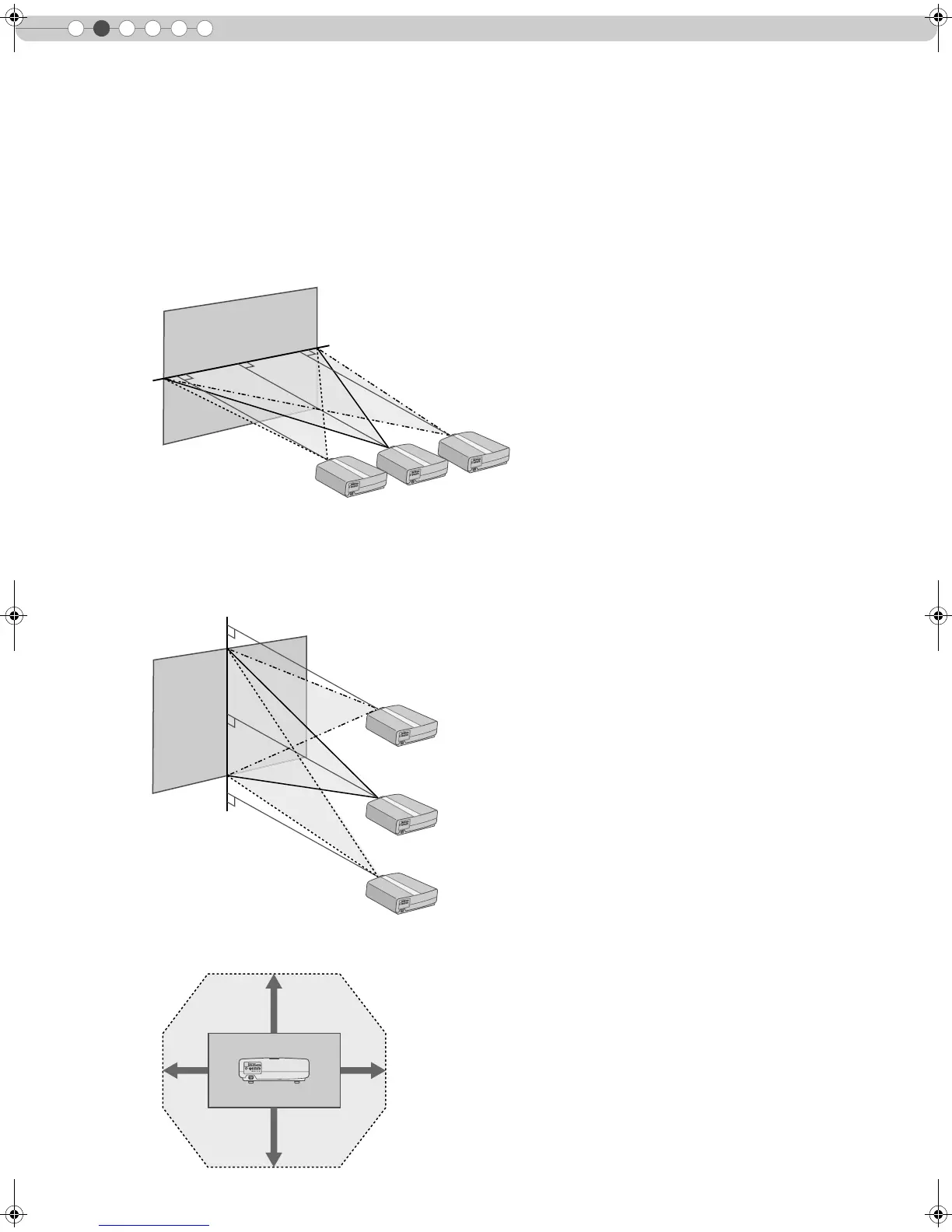

Installing the Projector and Screen
Install this unit and the screen. Place this unit and the screen perpendicular to each other.
Failing to do so may give rise to trapezoidal distortion of the projected image.
A Install the projector and screen
80%
34% 34%
80%
S-VIDEO
MDMI2 MDMI1 RS-232C
COMPONENT
VIDEO
SYNC
Y C
B
/P
B
C
R
/P
R
GBR
Left/Right position
*0 % up/down position (center)
Up/Down position
*0 % left/right position (center)
Approximately 34 % (maximum) of the projected image
(Turn the dial to the left for maximum)
Approximately 34 % (maximum) of the projected image
(Turn the dial to the right for maximum)
Approximately 80 % (maximum) of the projected image
(Turn the dial to the left for maximum)
Approximately 80 % (maximum) of the projected image
(Turn the dial to the right for maximum)
Shifting range of projected image
