(No.YD075)1-9
• When reattaching the Mechanism assembly to the Main board
assembly, take care not to damage the sensors and switch on
the Main board assembly.
<Note 3b>
• When reattaching the Drum assembly, secure the screws (S3c
to S3e) in the order of c, d, e.

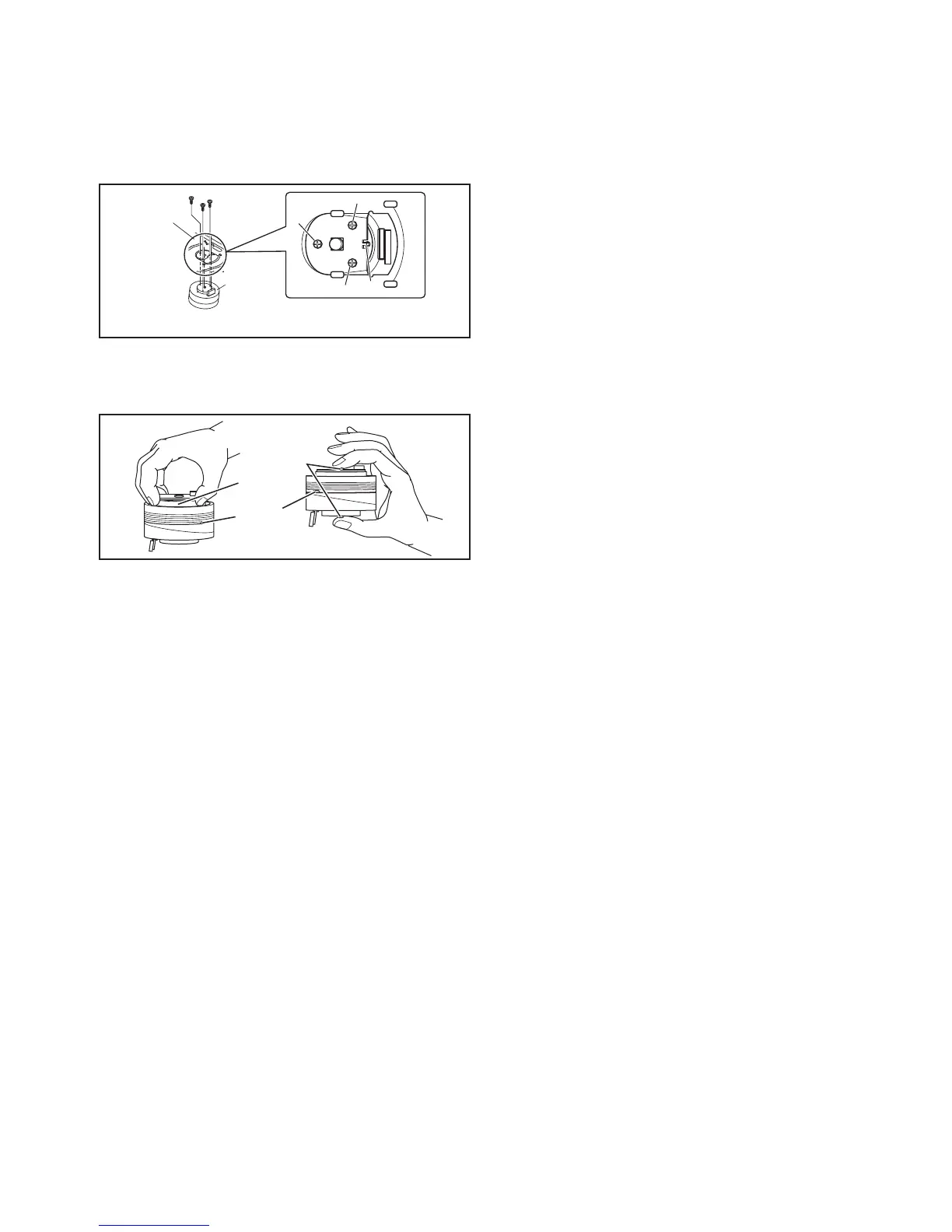

Fig.3-1b
• When handling the drum assembly alone, hold it by the motor
or shaft. Be careful not to touch other parts, especially the vid-
eo heads. Also take care not to damage the connectors.
Fig.3-1c
<Note 3c>
(S3c)
(S3c)
(S3e)
(S3e)
(S3d)
(S3d)
Mechanism
assembly
Drum
assembly
<NOTE>
Attach the Drum assembly appropriately,
since the installation state of the Drum assembly
influences the FM WAVEFORM LINEARITY
greatly.
HOOK
Shaft
Video heads
Motor
