3.1.11 Removing the speaker terminal board
(See Fig.21.)
• Remove the top cover, AL panel L, AL panel R, front panel as-
sembly, the rear panel, switching power unit, main board and
micom board.
(1) From the back side of the main body, disconnect the wire
from the connector CN313
on the digital amplifier board as-
sembly.
Reference:
When connecting the wire, connect the wire to connector
CN313
on the digital amplifier board assembly after pass
it through the section y of the side cover L. (See Fig.21.)
(2) From the top side of the main body, remove the screw W
attaching the speaker terminal board.
Reference:
When attaching the speaker terminal board, attach the
screw W after fitting the hole of the speaker terminal
board to the joint z of the side cover R.
3.1.12 Removing the scart terminal board
(See Fig.21)
• Remove the top cover, AL panel L, AL panel R, front panel as-
sembly, rear panel, switching power unit, main board and mi-
com board.
From the top side of the main body, remove the screw X at-
taching the scart terminal board.
Reference:
When attaching the scart terminal board, attach the screw X
after fitting the hole of the scart terminal board to the joint aa
of the side cover L.

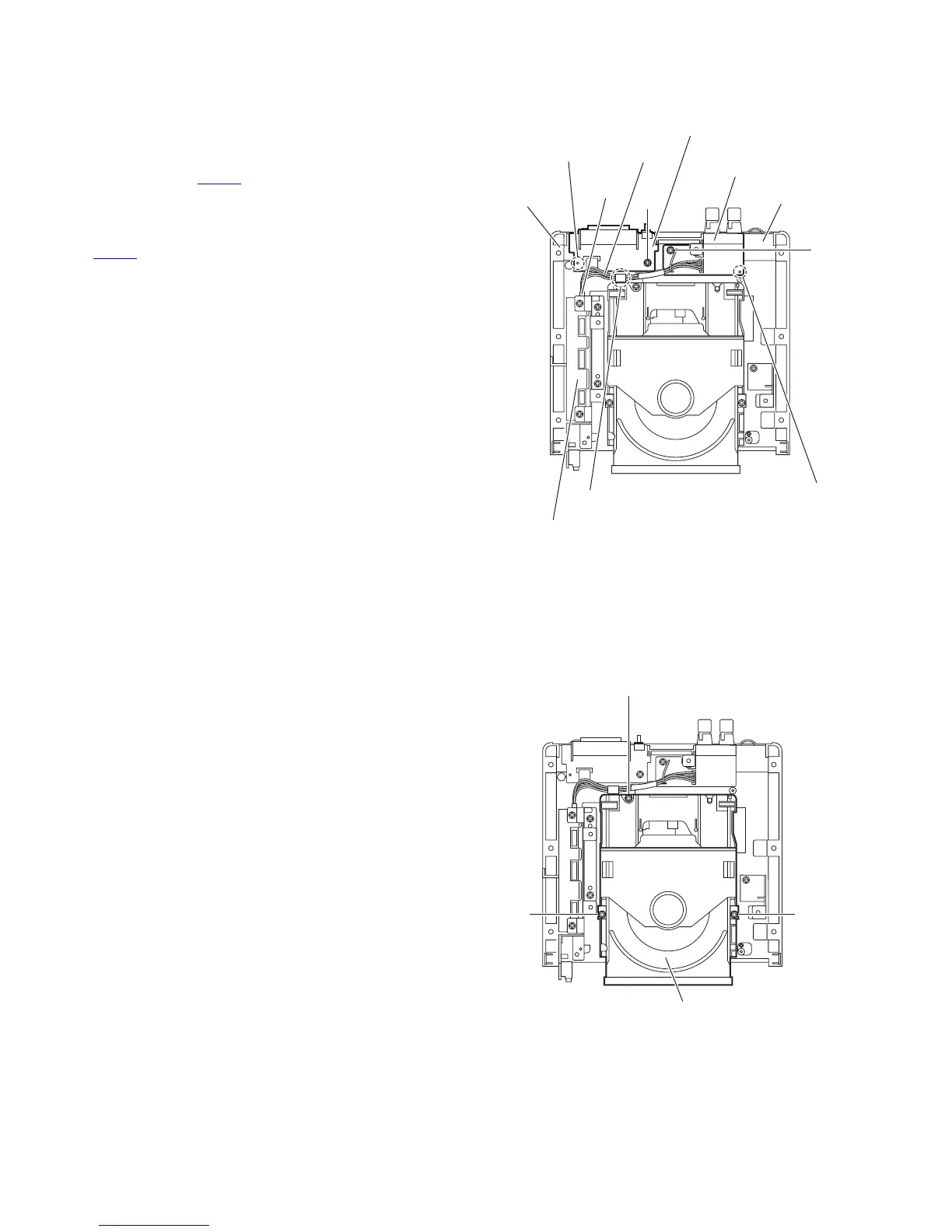

Fig.21
3.1.13 Removing the DVD mechanism assembly
(See Fig.22.)
• Remove the top cover, AL panel L, AL panel R, front panel as-
sembly, rear panel, switching power unit, main board and the
micom board.
(1) From the top side of the main body, remove the three
screws Y attaching the DVD mechanism assembly.
(2) Take out the DVD mechanism assembly from the main
body.
Fig.22
W
Side cover R
X
Side cover L
Digital amplifier board assembly
aa
Speaker terminal board
z
y
Scart terminal board
CN313
Wire
DVD mechanism assembly
Y
To Next Page
