(No.MB396)1-17
3.1.14 Removing the front board
(See Figs.23 and 24)
• Remove the top cover, AL panel L, AL panel R and front panel
assembly.
(1) From the front side of the front panel assembly, pull out the
volume assembly in the direction of the arrow. (See
Fig.23.)
(2) From the inside of the front panel assembly, remove the
ten screws Z attaching the front board. (See Fig.24.)
(3) Release the two claws ab of the indicator attaching the
front board and take out the front board from the front panel
assembly. (See Fig.24.)
Reference:
When attaching the front board, attach the screws Z after fitting
the holes of the front board to the projections ac of the front
panel assembly. (See Fig.24.)

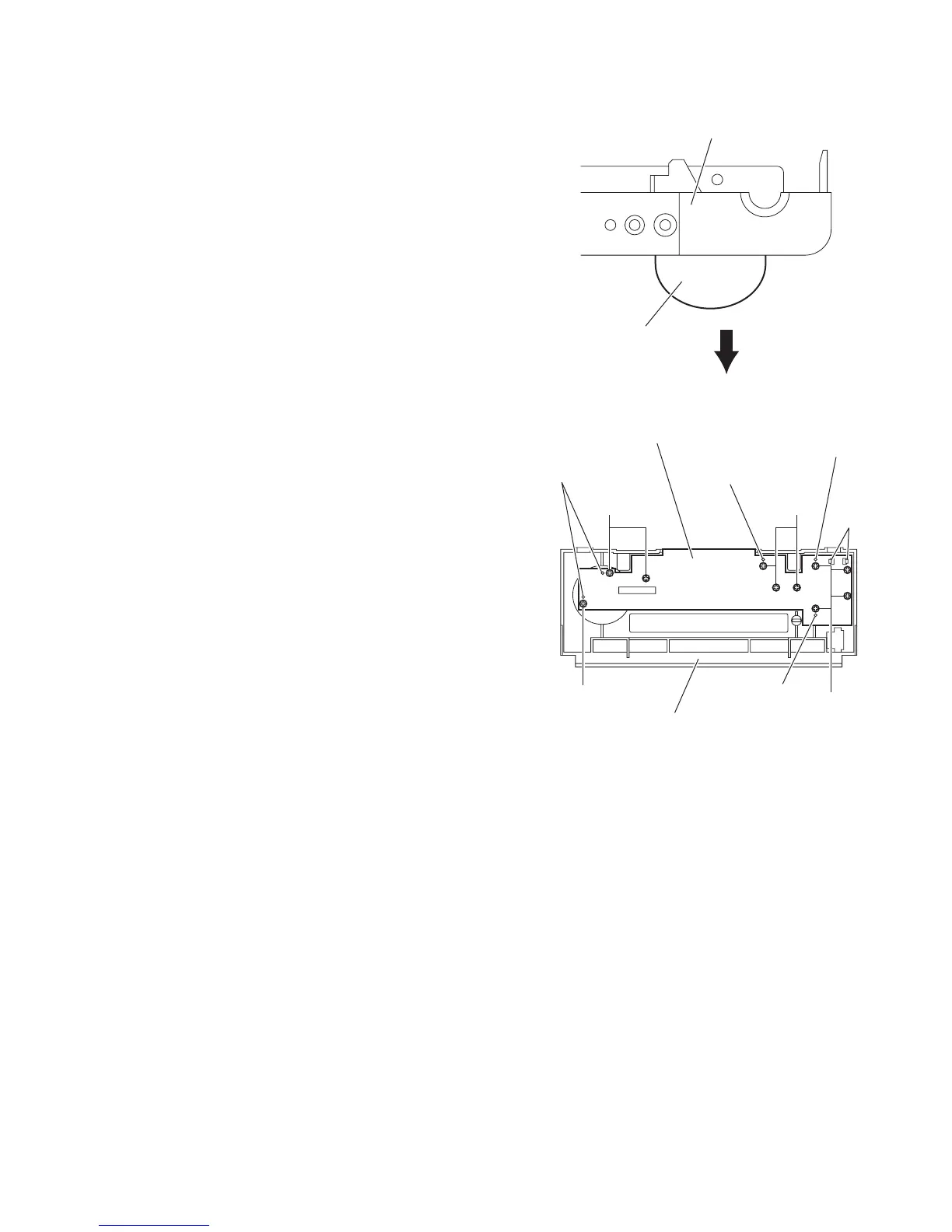

Fig.23
Fig.24
Volume assembly
Front panel assembly
ac
Front board
Front panel assembly
Z Z
Z
Z
ac
ac
ac
ab
