66

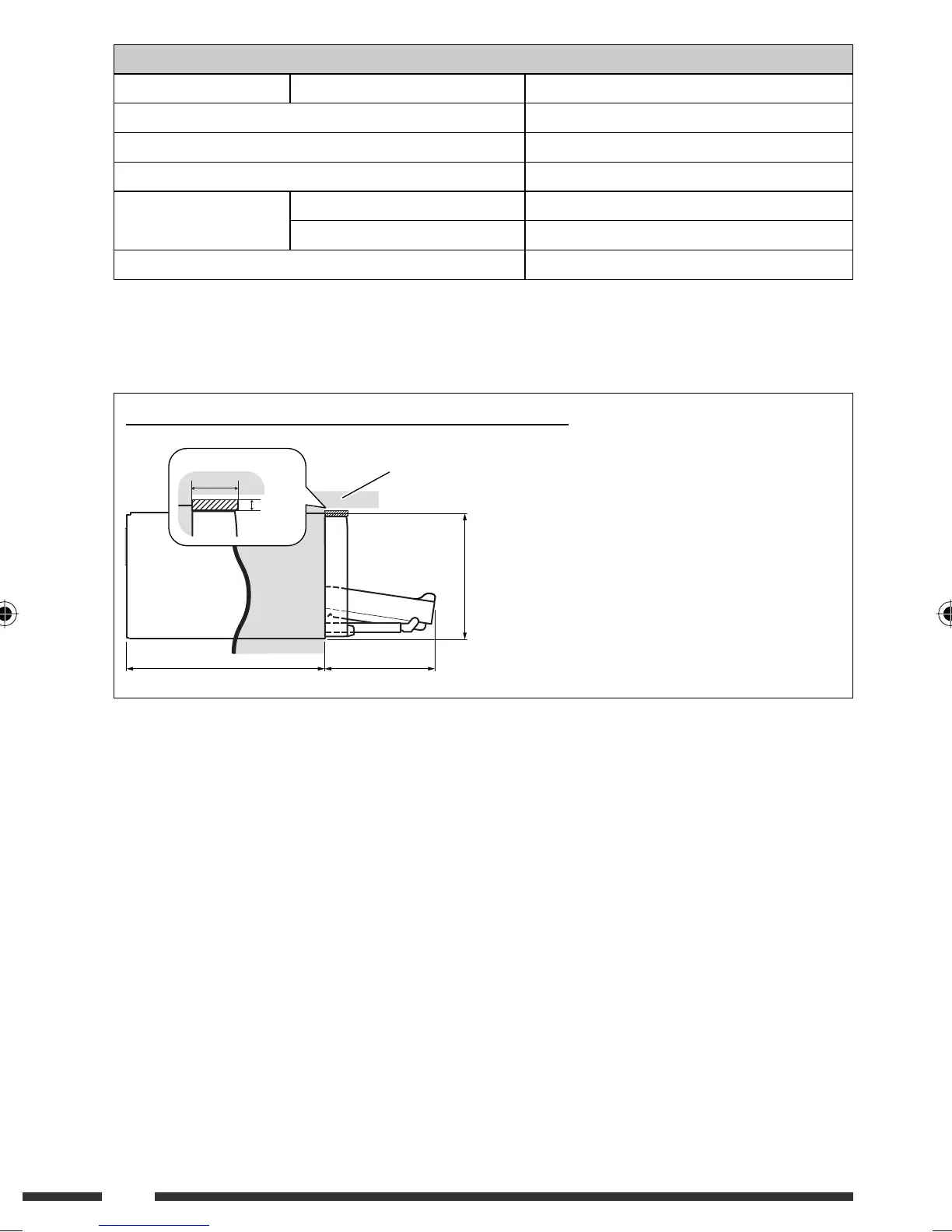

Required space for installation and the monitor ejection
160 91.3
100
CAUTION: When ejecting the monitor, leave an open
space for the monitor to come out. If you do not,
the monitor may obstruct the steering wheel and
gearshift lever operations, and this may result in a
traffic accident.
Unit: mm
4
20
Dashboard
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Storage Temperature –10°C to +60°C
Allowable Operating Temperature 0°C to +40°C
Dimensions (W × H × D) Installation Size (approx.) 170 mm × 100 mm × 160 mm
Panel Size (approx.) 171 mm × 97 mm × 22 mm
Mass (approx.) 2.8 kg
Design and specifications are subject to change without notice.
