(No.MA035)1-9

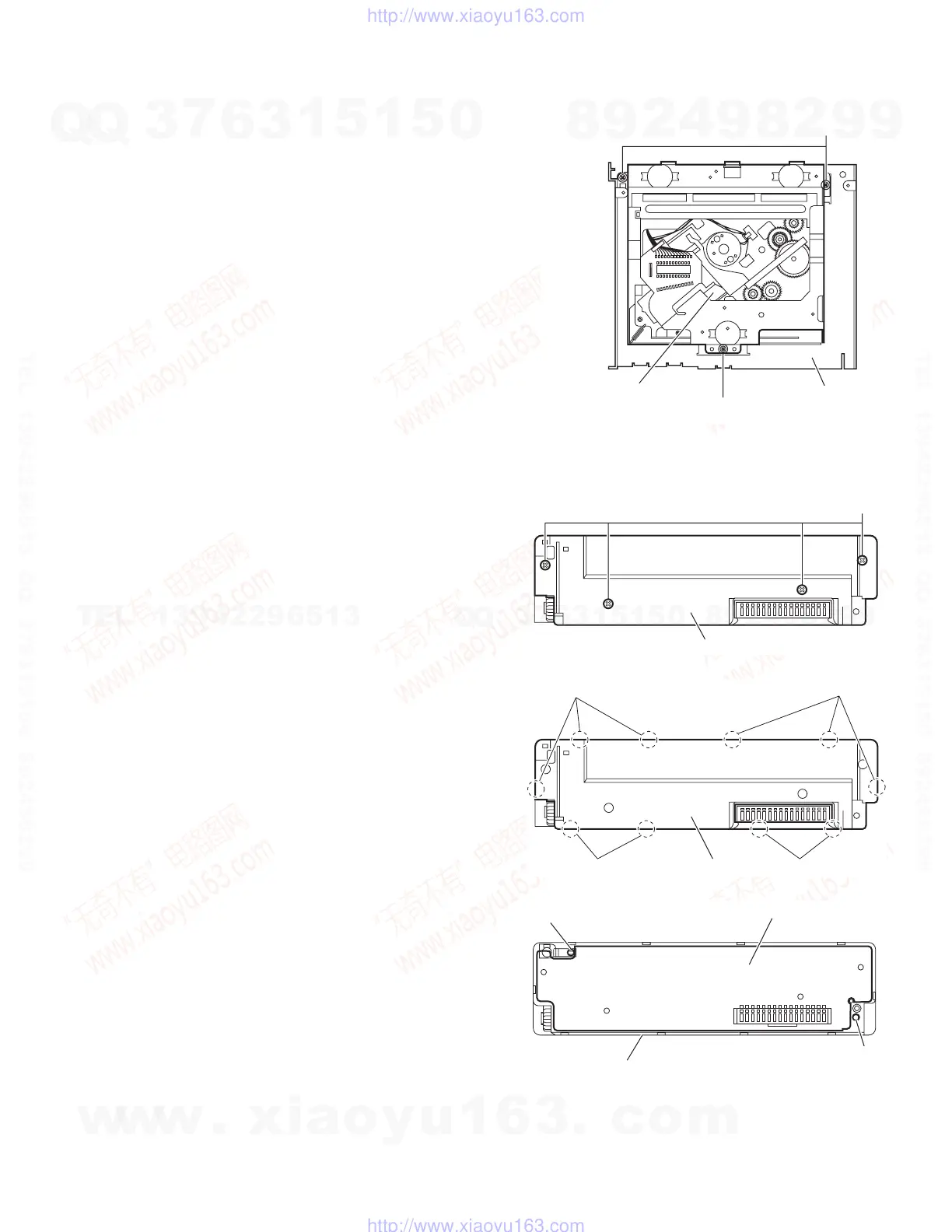

3.1.7 Removing the CD mechanism assembly
(See Fig. 8)
• Prior to performing the following procedure, remove the front
panel assembly, bottom cover, front chassis assembly, side
panel, rear bracket and main board .
(1) Remove the three screws J attaching the CD mechanism
assembly.
(2) Take out the CD mechanism assembly.
Fig.8
3.1.8 Removing the front board
(See Figs.9 to 11)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the four screws K on the back side of the front
panel assembly. (See Fig.9.)
(2) Release the ten joints f. (See Fig.10.)
(3) Release the joint g and take out the front board. (See
Fig.11.)
Fig.9
Fig.10
Fig.11
J
J
CD mechanism assembly
Top chassis
K
Rear cover
Rear cover
Joints f
Joints f
Joints f
Joints f
Front board
Spring
Spring
Front panel assembly
