JVC GR-AX761 - Connections and Tape Dubbing

32 EN
To Video
Output
Connector cover*
To TV or VCR
To Video
Input

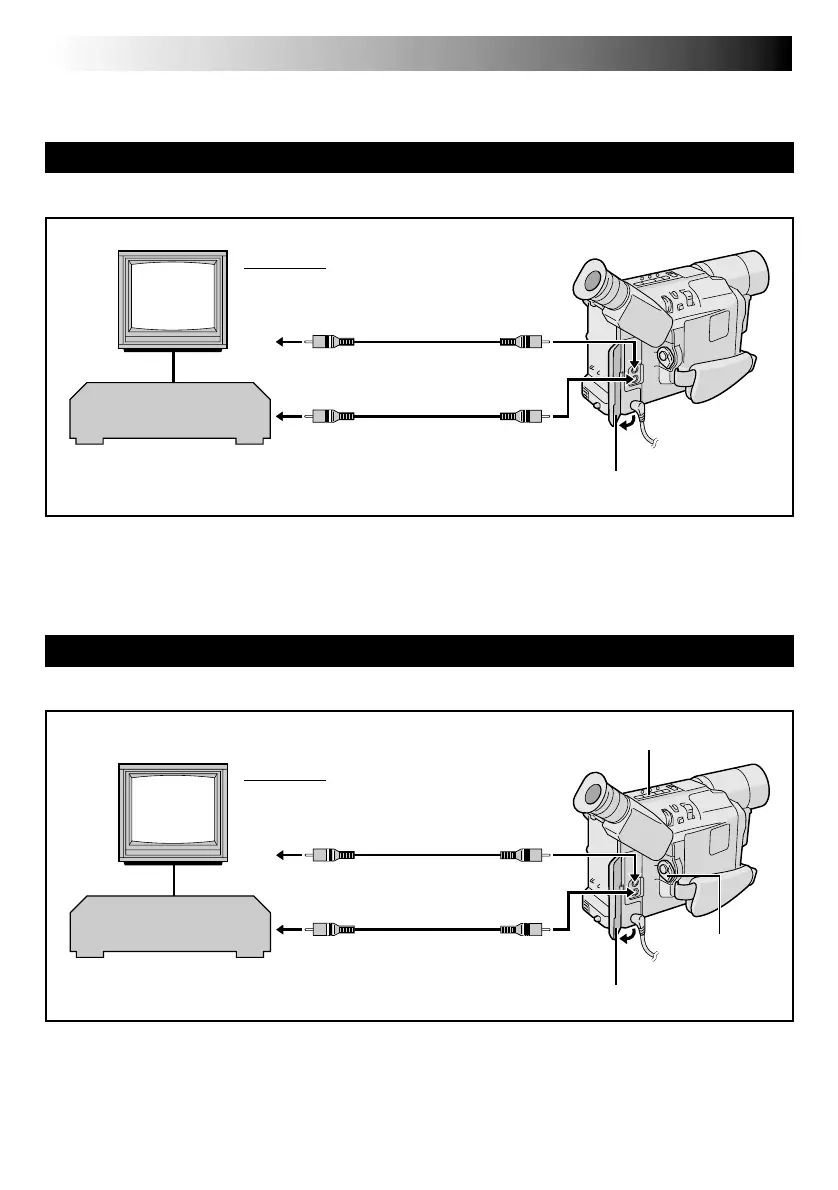

Connection For Tape Dubbing
Use optional Video and Audio cables.
To Audio
Output
To Audio
Input
Basic Connection
Use optional Video and Audio cables.
*When connecting the cables, open this cover.
VCR
TV
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.
Video cable
(optional)
Audio cable
(optional)
PLAYBACK Connections And Tape Dubbing
To Video
Output
Connector cover*
To TV or VCR
To Video
Input
To Audio
Output
To Audio
Input
*When connecting the cables, open this cover.
VCR
TV
Video cable
(optional)
Audio cable
(optional)
Power Switch
Play/Pause (
4 /6) Button
