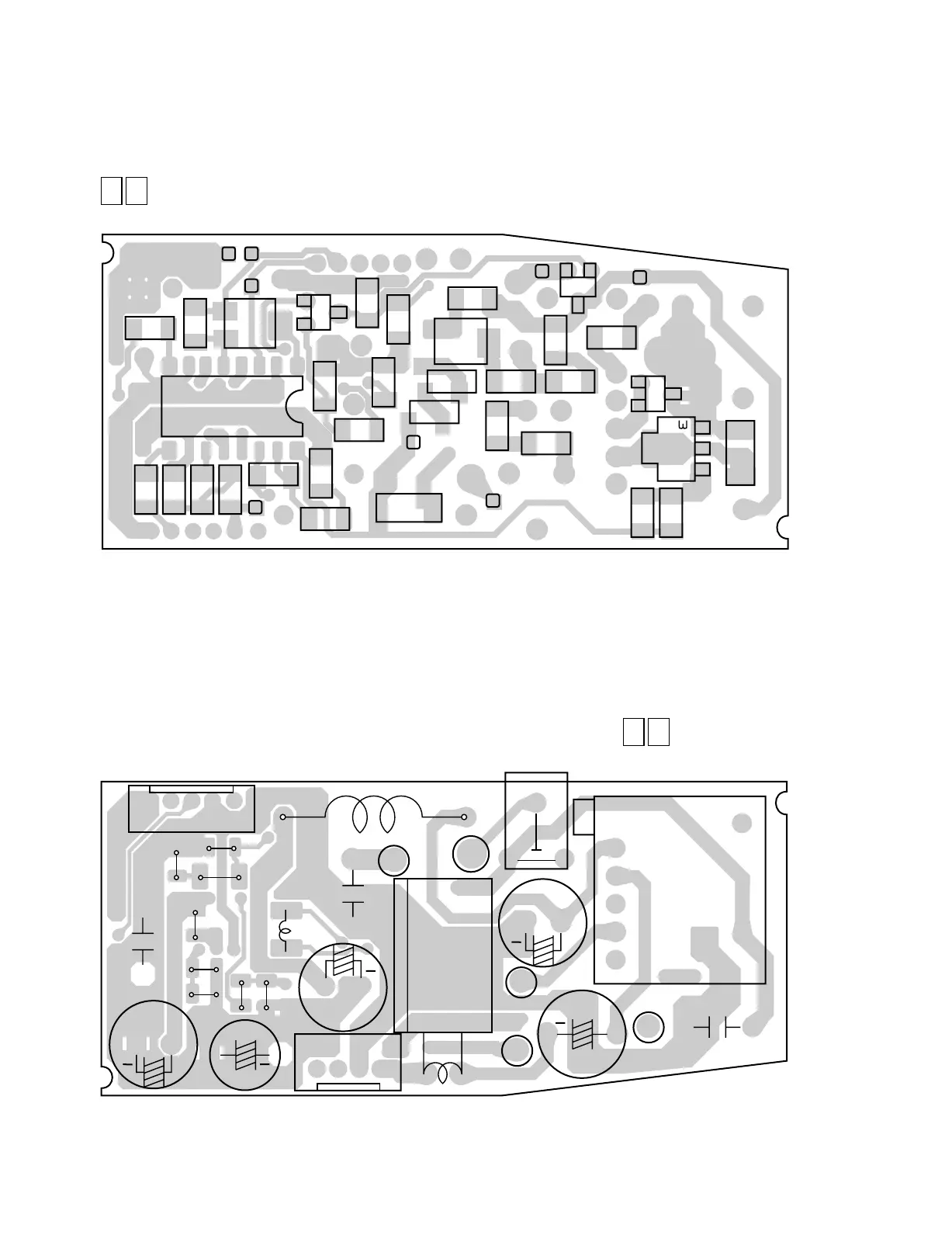

4.21 E. VF CIRCUIT BOARD
FOIL SIDE(B)
COMPONENT SIDE (A)
R7030
R7008
R7029
R7011
R7022
R7018
C7014
R7026
R7012 C7008
C7010
D7001
R7017
Q7002
VR7001
R7015
R7002
C7011
R7010
R7020
R7016
R7021
R7024
R7023
Q7003
R7025
Q7001
R7019
C7013
VR7002
C7005
IC7001
R7006 R7005
C7003
220 10V
C7012
CN7001
IL-Y-4P-S15
50V1
41
C7004
220 10V
T7001
QQH0011-001
C7009
C7015
150P 1000V
100 10V
C7016
C7001
0.1
L7003
R7009
10K
C7007 (3216)
C7006
CN700251
B5B-ZR
0.015
1
68u
330P 500V
C7002
220 10V
HK
G1
L7001
PELN1175
G3
100u
L7002
G2
H
VR7003
5.5M
R7003
#
R7031
R7007
33
R7013
1K
R7014
4.7K
+
+
+
+
+
6 0 E. VF PWB
