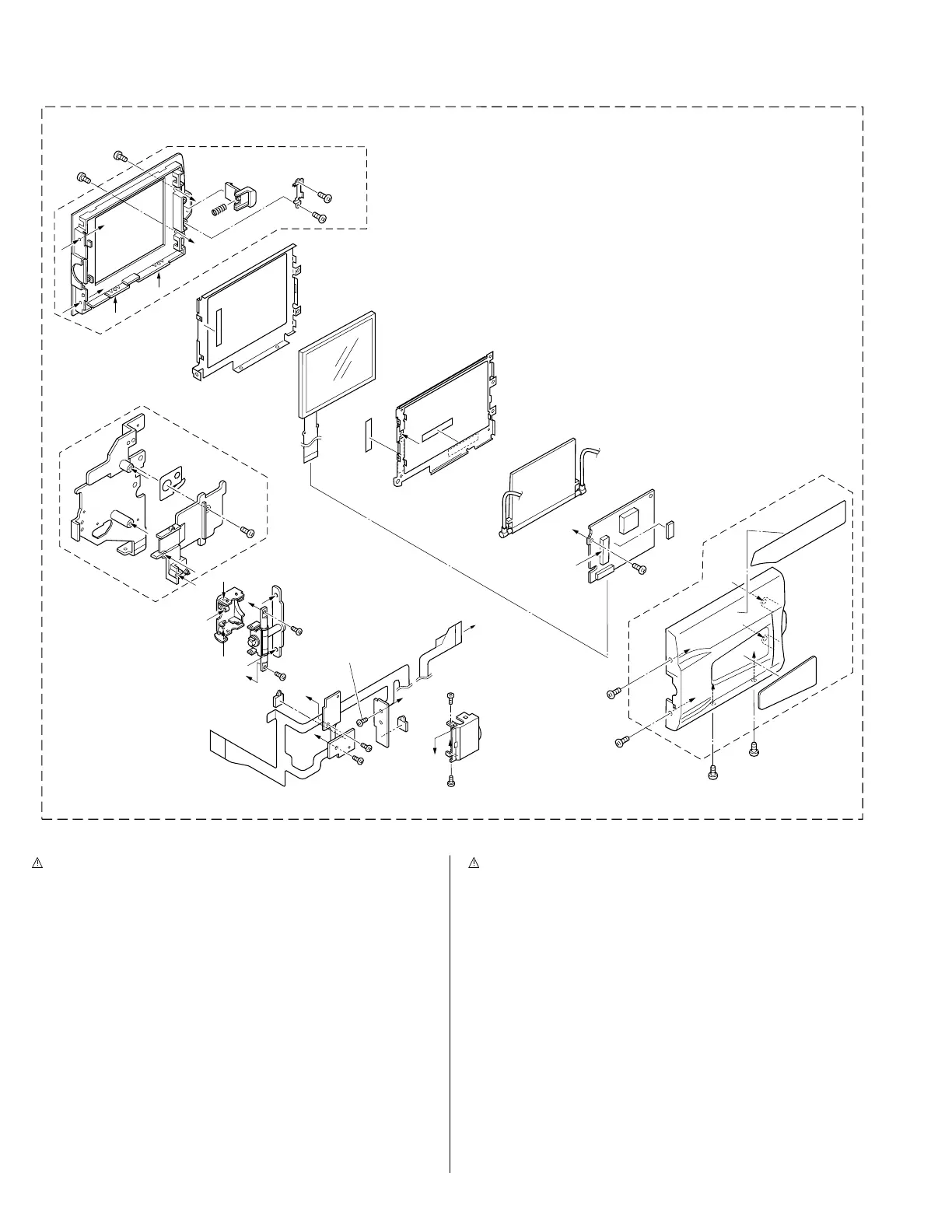

5.5 MONITOR ASSEMBLY <M5> [GR-SXM740U]
******************************
MONITOR ASSEMBLY <M5>[GR-SXM740U]
! 500 LY20836-007A MONITOR ASSY
! 501 LY20816-001A MONITOR COVER ASSY
501A LY32329-002A PLATE(WINDOW)
501B LY32554-003A STICKER(B)
502 LY32544-001A MONITOR CASE(3.5)ASSY
502A LY31954-001A KNOB(LOCK)
502B LY42760-001A BRACKET(LOCK)
502C LY30002-043A COMPRESSION SPRING
502D LY30018-063A SPECIAL SCREW,X2
503 LY32034-003A BRACKET(UPPER)ASSY
503A LY20652-003A HOLDER
503B LY42761-001A EARTH PLATE
503C QYSLSP2025D SCREW
504 LY32334-001A SHIELD CASE(3.5)
505 LY31939-001A HINGE COVER(UPPER)
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
506 LY31940-001A HINGE COVER(LOWER)
507 LY30018-0C9A SPECIAL SCREW,X2
508 LY30018-052A SPECIAL SCREW,X2
509 LY30018-0C9A SPECIAL SCREW,X2
510 LY30018-0C5A SPECIAL SCREW,X2
511 QYSLSF2040D SCREW
512 QYSLSP2070D SCREW
513 LY31957-001A HINGE ASSY
514 LY30018-090A SPECIAL SCREW,X2
515 QAL0391-001 FPC
516 NSW0095-001X DETECT SWITCH,RVS SW
517 NSW0105-001X DETECT SWITCH,OPEN SW
518 QLD0212-001 LCD MODULE
524 LY30018-063A SPECIAL SCREW
525 LY30018-0C9A SPECIAL SCREW
526 LY30016-049A SPACER-A
527 LY30029-0R6A SPACER(A)
528 LY32335-001A LCD FRAME(3.5)
529 LY30029-0R5A SPACER(A),X2
530 QLL0113-001 BACK LIGHT
502D
502D
502A
500
502C
502
508
508
502B
bb
cc
rr
dd
hh
gg
530
ss
ee
505
507
507
506
503B
503
503A
503C
513
514
514
515
517
511
512
524
516
ff
kk
jj
kk
jj
rr
ss
mm
mm
tt
qq
nn
uu
nn
tt
qq
uu
509
509
501
501B
501A
bb
cc
gg
510
dd
510
ee
hh
MONITOR
<07>
ff
525
526
pp
528
529
529
504
527
518
pp
