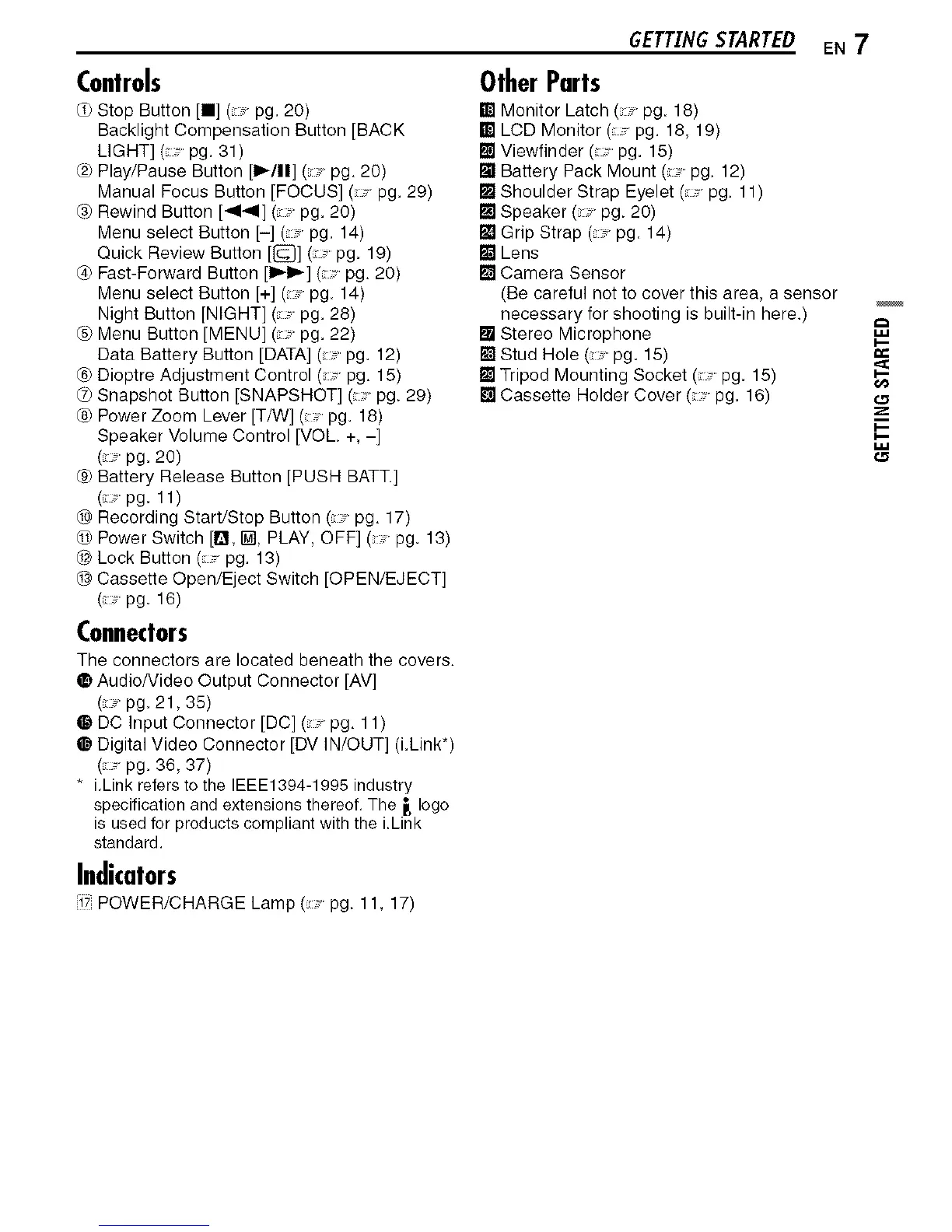

Controls
Stop Button [m] ( pg. 20)
Backlight Compensation Button [BACK
LIGHT](: pg. 31)
@ Play/Pause Button [1_/11] ( pg. 20)
Manual Focus Button [FOCUS] (: pg. 29)
(3_Rewind Button [_141] ( pg. 20)
Menu select Button [-] ( pg. 14)
Quick Review Button [(_[}] (pg. 19)
(_ Fast-Forward Button [1_1_] ( pg. 20)
Menu select Button [+] (pg. 14)
Night Button [NIGHT] (: pg. 28)
® Menu Button [MENU] (: pg. 22)
Data Battery Button [DATA] (: pg. 12)
_) Dioptre Adjustment Control ( pg. 15)
Snapshot Button [SNAPSHOT] ( - pg. 29)
(_ Power Zoom Lever [TAN] ( pg. 18)
Speaker Volume Control [VOL +, -]
( pg. 20)
@ Battery Release Button [PUSH BATT.]
( pg. 11)
@ Recording Start/Stop Button ( - pg. 17)
@ Power Switch [D, [], PLAY, OFF] ( pg. 13)
@LockButton( -pg. 13)
@ Cassette Open/Eject Switch [OPEN/EJECT]
( pg. 16)
Connectors
The connectors are located beneath the covers.
• Audio/Video Output Connector [AV]
( pg. 21,35)
• DC Input Connector [DC] ( pg. 11)
@ Digital Video Connector [DV IN/OUT] (i.Link*)
(:-pg. 36, 37)
• i.Link refers to the IEEE1394-1995 industry
specification and extensions thereof. The _, logo
is used for products compliant with the i.Link
standard.
Indicators
POWER/CHARGE Lamp (_J pg. 11, 17)
5ETTIN6 STARTED EN 7
Other Parts
[] Monitor Latch (_J pg. 18)
[]LCDMonitor( -pg. 18,19)
[] Viewfinder (pg. 15)
[] Battery Pack Mount (pg. 12)
[]Shoulder Strap Eyelet (: -pg. 11)
[]Speaker ( pg. 20)
[] Grip Strap (pg. 14)
[] Lens
[] Camera Sensor
(Be careful not to cover this area, a sensor
necessary for shooting is built-in here.)
[] Stereo Microphone
[]Stud Hole ( pg. 15)
[] Tripod Mounting Socket ( pg. 15)
[] Cassette Holder Cover ( -pg. 16)
