VIDEO PLAYBACK
22 EN
MasterPage: Left
A Black to S-VIDEO IN (Connect when your
TV/VCR has S-VIDEO in and A/V input
connectors. In this case, it is not necessary to
connect the yellow video cable).
B Yellow to VIDEO IN (Connect when your
TV/VCR has only A/V input connectors).
C Red to AUDIO R IN
D White to AUDIO L IN
NOTE:
The S-Video cable is optional. Be sure to use the
YTU94146A S-Video cable. Consult the JVC
Service Centre described on the sheet included in
the package for details on its availability. Make sure
to connect the end with a core filter to the camera.
The core filter reduces interference.
1 Make sure all units are turned off.
2 Connect the camcorder to a TV or VCR as
shown in the illustration.
If using a VCR, go to step 3.
If not, go to step 4.
3 Connect the VCR output to the TV input,
referring to your VCR’s instruction manual.
4 Turn on the camcorder, the VCR and the TV.
5 Set the VCR to its AUX input mode, and set
the TV to its VIDEO mode.
6 Start playback on the camcorder. (墌 pg. 20)
● Please set “16:9 OUTPUT” of Playback Menus so
that the image may suit your TV (16:9 TV or 4:3
TV). (墌 pg. 16, 27)
To choose whether or not the following
displays appear on the connected TV
● Date/Time
Set “DATE/TIME” to “ON” or “OFF”.
(墌 pg. 27)
● Time Code
Set “TIME CODE” to “ON” or “OFF”. (墌 pg. 27)
● Indications other than date/time and time code
Set “ON SCREEN” to “OFF”, “LCD” or “LCD/TV”.
(墌 pg. 27)
NOTES:
● It is recommended to use the AC Adapter as
the power supply instead of the battery pack.
(墌 pg. 13)
● To monitor the picture and sound from the
camcorder without inserting a tape, set the
camcorder’s Power Switch to
“REC”, then set
your TV to the appropriate input mode.
● Make sure you adjust the TV sound volume to its
minimum level to avoid a sudden burst of sound
when the camcorder is turned on.

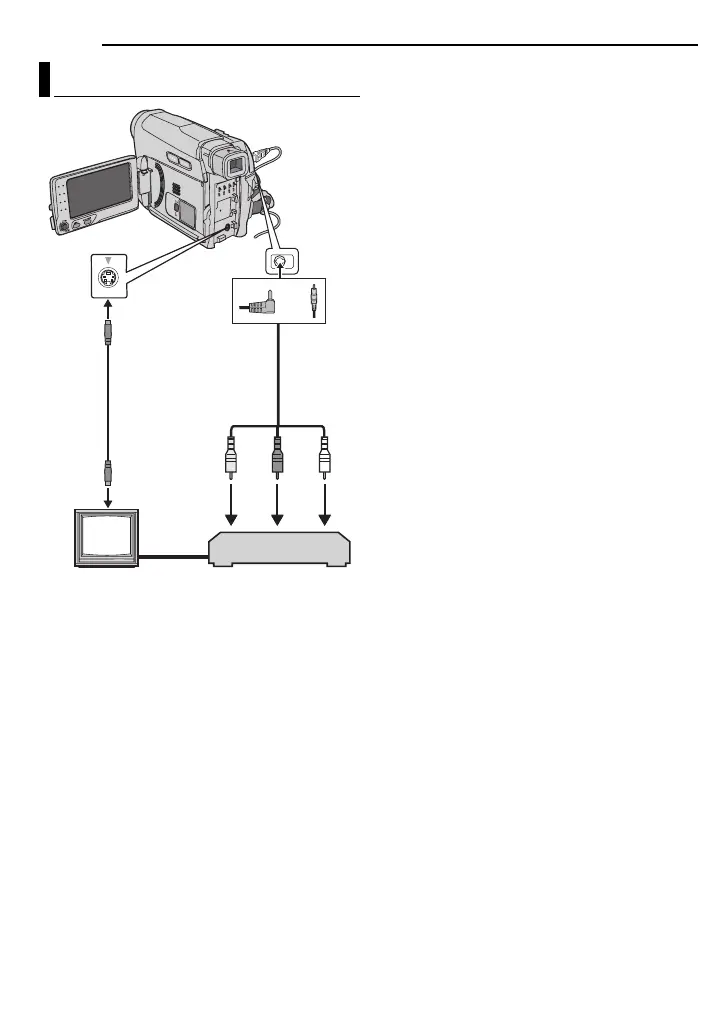

Connections To A TV Or VCR
4
s
A
C
B
TV
VCR
Audio/Video
cable
(provided)
To AV
connector
S cable
(optional)
or
GR-D750AA.book Page 22 Tuesday, January 30, 2007 5:41 PM
To Next Page
