JVC GR-DV3000A - Connections; Basic Connections

54 EN
To AV
To S-VIDEO
White to AUDIO L IN**
Red to AUDIO R IN**
To S-VIDEO IN
To TV or VCR
S-Video cable
(provided)
TV
VCR
Connector cover*
* When connecting the cables, open this cover.
** The Audio cable is not required for watching still images only.
Jack Box
(provided)
NOTE:
In order to maintain optimum performance of the camcorder,
provided cables may be equipped with one or more core filter.
If a cable has only one core filter, the end that is closest to the
filter should be connected to the camcorder.
CONNECTIONS Basic Connections
Audio/Video cable
[mini-plug to RCA
plug] (provided)
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.

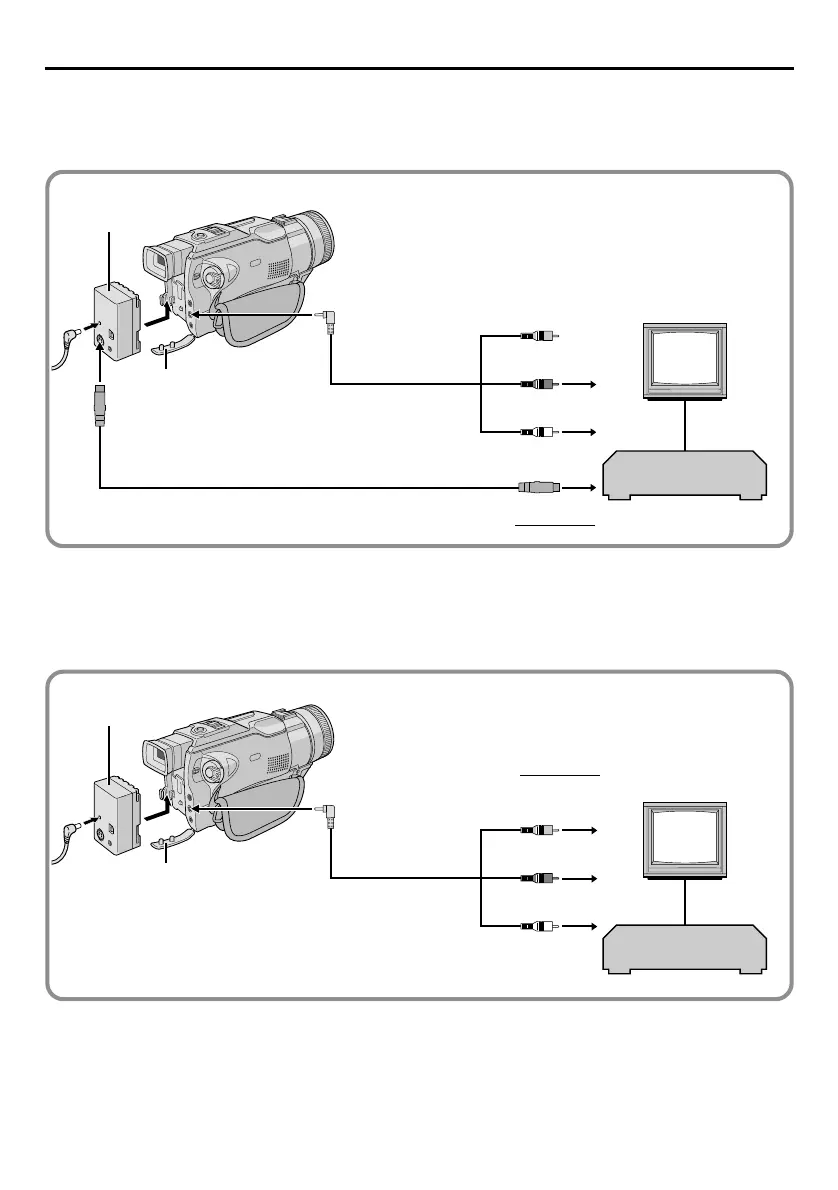

A. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input connectors
Yellow: Not connected
To AV
White to AUDIO L IN**
Red to AUDIO R IN**
To TV or VCR
TV
VCR
Connector cover*
Jack Box
(provided)
Audio/Video cable
(provided)
Yellow to VIDEO IN
B. Connection to a TV or VCR equipped only with A/V input connectors
* When connecting the cables, open this cover.
** The Audio cable is not required for watching still images only.
