2-15

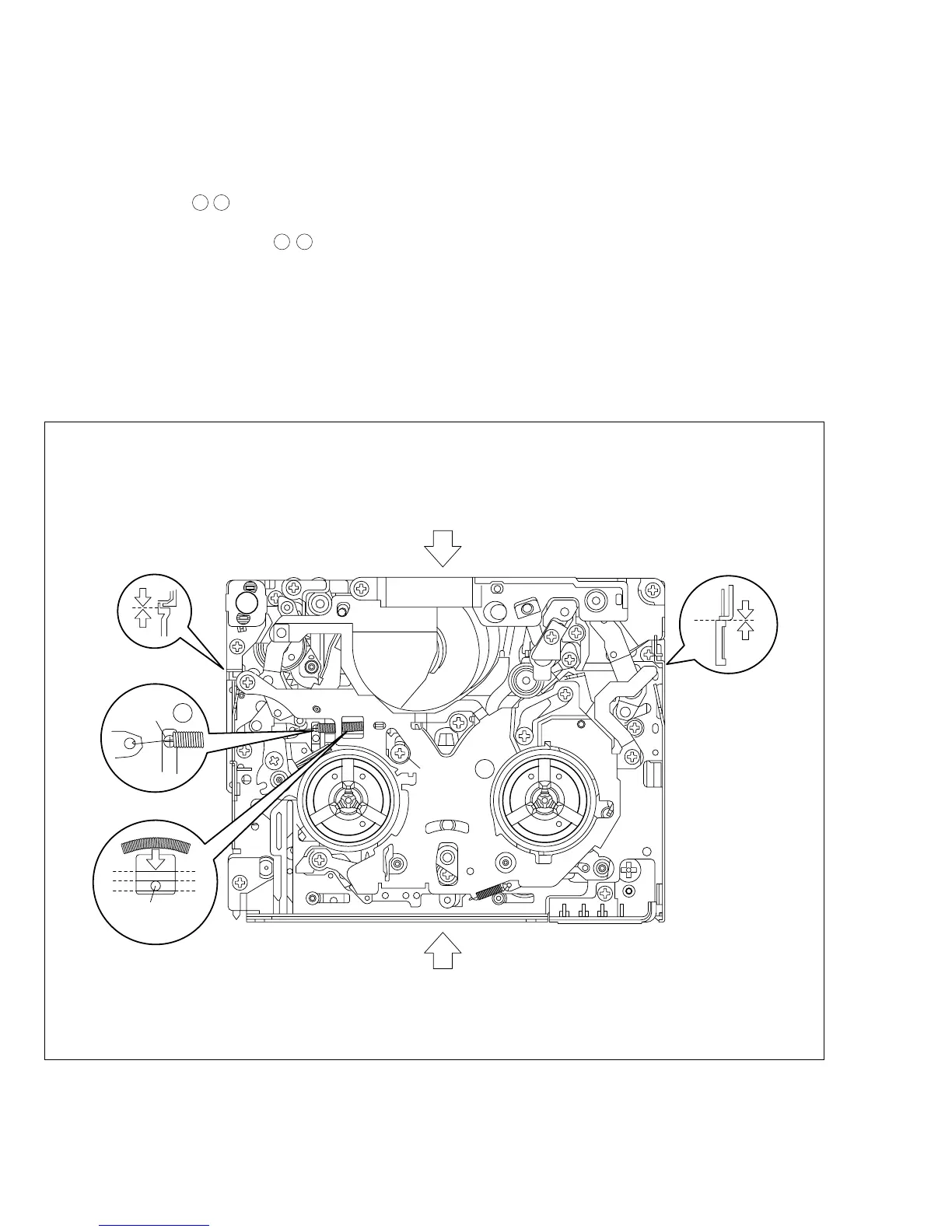

Fig. 2-6-1
2.6 MECHANISM ADJUSTMENTS
2.6.1 Adjustment of the slide guide plate
Use Fig. 2-6-1 as the reference unless otherwise specified.
1. Set the PLAY mode.
See Fig. 2-3-8.
2. Loosen the screws ( A , B ).
3. With the Main Deck and Slide Deck Assemblies pushed
into the unit, tighten the screws ( A , B ) while applying
pressure to the stud (shaft) on the Slide Guide plate.
The pressure applied should be enough to enable utili-
zation of the rebounding force of the springs.
The tightening torque should be 0.069 N
m (0.7 kgf
cm).
4. Check the operation.
Repeat unloading and loading several times and make
sure that these operations can be performed smoothly
without producing rattles.
3
3
SCREW
B
SCREW
STUD
(SHAFT)
A
2,3
3
3
2, 3
3
