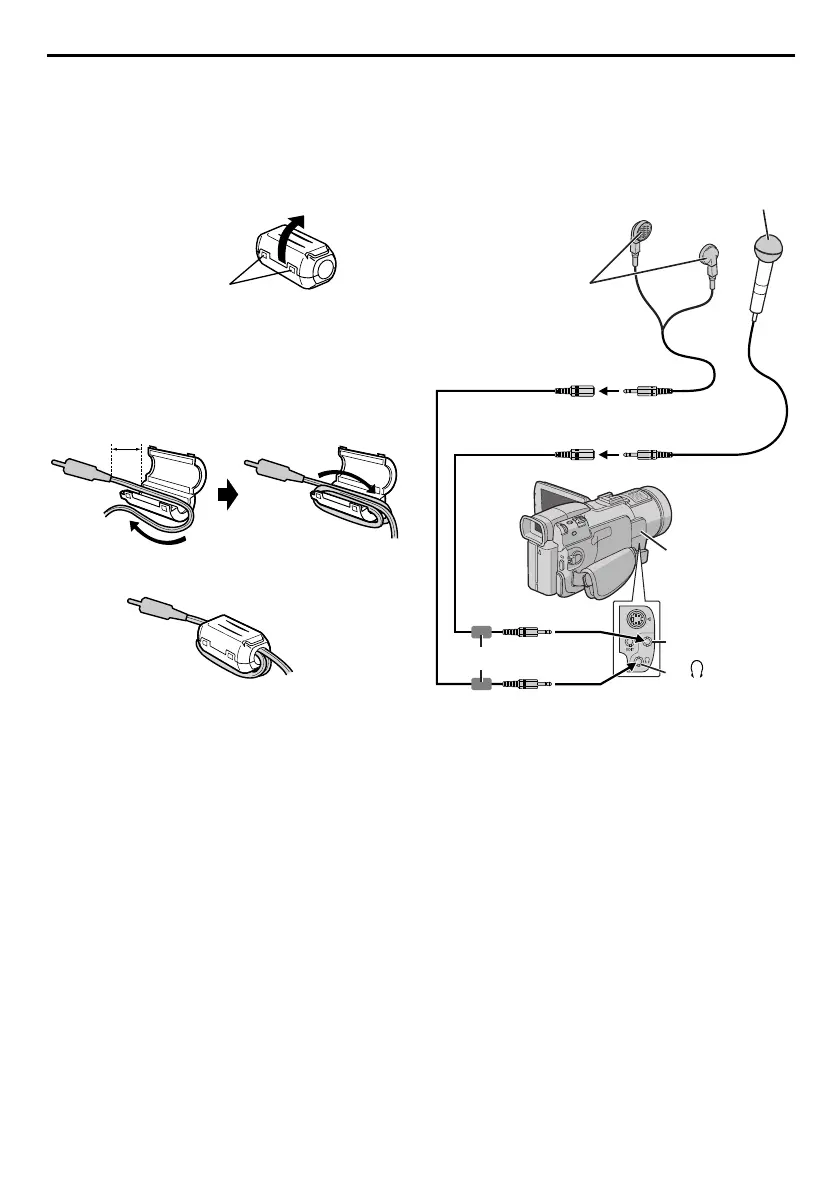

How To Attach The Core Filter
(GR-DV800/500 only)
(for optional editing cable)
Attach the core filter to an optional editing cable.
The core filter reduces interference.
1 Release the stoppers on both ends of the core
filter.
2 Run the cable through the core filter, leaving
approx. 3 cm (1-3/16") of cable between the
cable plug and the core filter. Wind the cable
twice around the outside of the core filter as
shown in the illustration.
● Wind the cable so that it is not slack.
3 Close the core filter until it clicks shut.
NOTES:
● Take care not to damage the cable.
● When connecting a cable, attach the end with the
core filter to the camcorder.
How To Use The Audio Cable
When using optional headphones or external
microphone, connect to the provided Audio cable
(with a core filter attached), then connect the Audio
cable to the camcorder. The core filter reduces
interference.
Stopper
3 cm (1-3/16")
Wind twice.
Headphones
Audio cable
(provided)
Core filter
Open the
connector cover.
To
(headphones)
Microphone
To MI C
