22 EN
Master Page: Left
* If your VCR has a SCART connector, use the
provided cable adapter.
** Not required for watching still images only.
*** Connect when your TV/VCR has S-VIDEO IN
and A/V input connectors. In this case, it is not
necessary to connect the yellow video cable.
**** When connecting the cable, open the cover.
NOTE:
Set the video out select switch of the cable adapter
as required:
Y/C: When connecting to a TV or VCR which
accepts Y/C signals and uses an S-Video cable.
CVBS: When connecting to a TV or VCR which does
not accept Y/C signals and uses an audio/video
cable.
1 Make sure all units are turned off.
2 Connect the camcorder to a TV or VCR as shown
in the illustration.
If using a VCR, go to step 3.
If not, go to step 4.
3 Connect the VCR output to the TV input,
referring to your VCR’s instruction manual.
4 Turn on the camcorder, the VCR and the TV.
5 Set the VCR to its AUX input mode, and set the
TV to its VIDEO mode.
To choose whether or not the following displays
appear on the connected TV…
● Date/Time
Set “DATE/TIME” to “AUTO”, “ON” or “OFF”.
(墌 pg. 31, 41)
Or, press DISPLAY on the remote control to turn
on/off the date indication.
● Time Code
Set “TIME CODE” to “ON” or “OFF”.
(墌 pg. 31, 41)
● Indications other than date/time and time code
Set “ON SCREEN” to “OFF”, “LCD” or “LCD/TV”.
(墌 pg. 31, 41)
NOTES:
● It is recommended to use the AC Power Adapter/
Charger as the power supply instead of the
battery pack. (墌 pg. 11)
● To monitor the picture and sound from the
camcorder without inserting a tape or memory
card, set the camcorder’s Power Switch to “A” or
“M”, then set your TV to the appropriate input
mode.
● Make sure you adjust the TV sound volume to its
minimum level to avoid a sudden burst of sound
when the camcorder is turned on.
● If you have a TV or speakers that are not specially
shielded, do not place the speakers adjacent to the
TV as interference will occur in the camcorder
playback picture.
● When a cable is connected to the AV or
headphone connector, sound cannot be heard
from the speaker.

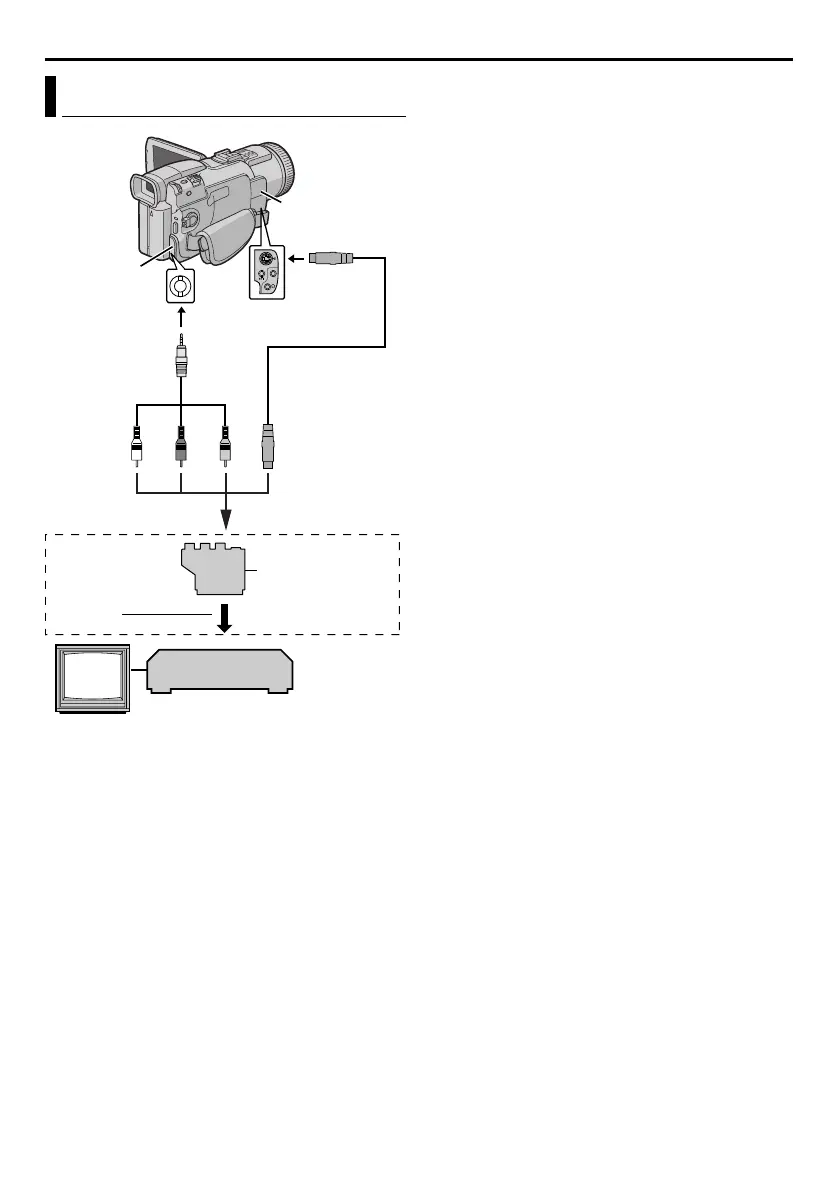

Connections To A TV Or VCR
1234
Connector
Cover****
Connector
Cover****
Audio/Video
cable
(provided)
To AV
To S
S-Video cable
(optional)
TV
VCR
A White to AUDIO L IN**
B Red to AUDIO R IN**
C Yellow to VIDEO IN
D To S-VIDEO IN***
To TV or VCR
“Y/C”/“CVBS”
Video Out Select
Switch
Cable Adapter*
VIDEO PLAYBACK (cont.)
GR-DV4000PAL.book Page 22 Friday, February 14, 2003 10:30 PM
