JVC GR-DVP5 User Manual

24 EN
Master Page: Left
GR-DVP7-5EG_18-25.fm Page 24
A. Use the provided S/AV/Editing cable.
* Not required for watching still images only.
** Connect when your TV/VCR has an S-VIDEO IN connector.
*** When connecting the cable, open the cover.
B. If your TV/VCR has a 21-pin connector
Use the provided Cable Adapter.
* Not required for watching still images only.
** Connect when your TV/VCR has an S-VIDEO IN connector.
*** When connecting the cable, open the cover.
NOTE:
Set the video out select switch of the cable adapter as required:
Y/C: When connecting to a TV or VCR which accepts Y/C signals and uses an S-Video cable.
CVBS: When connecting to a TV or VCR which does not accept Y/C signals and uses an audio/video cable.

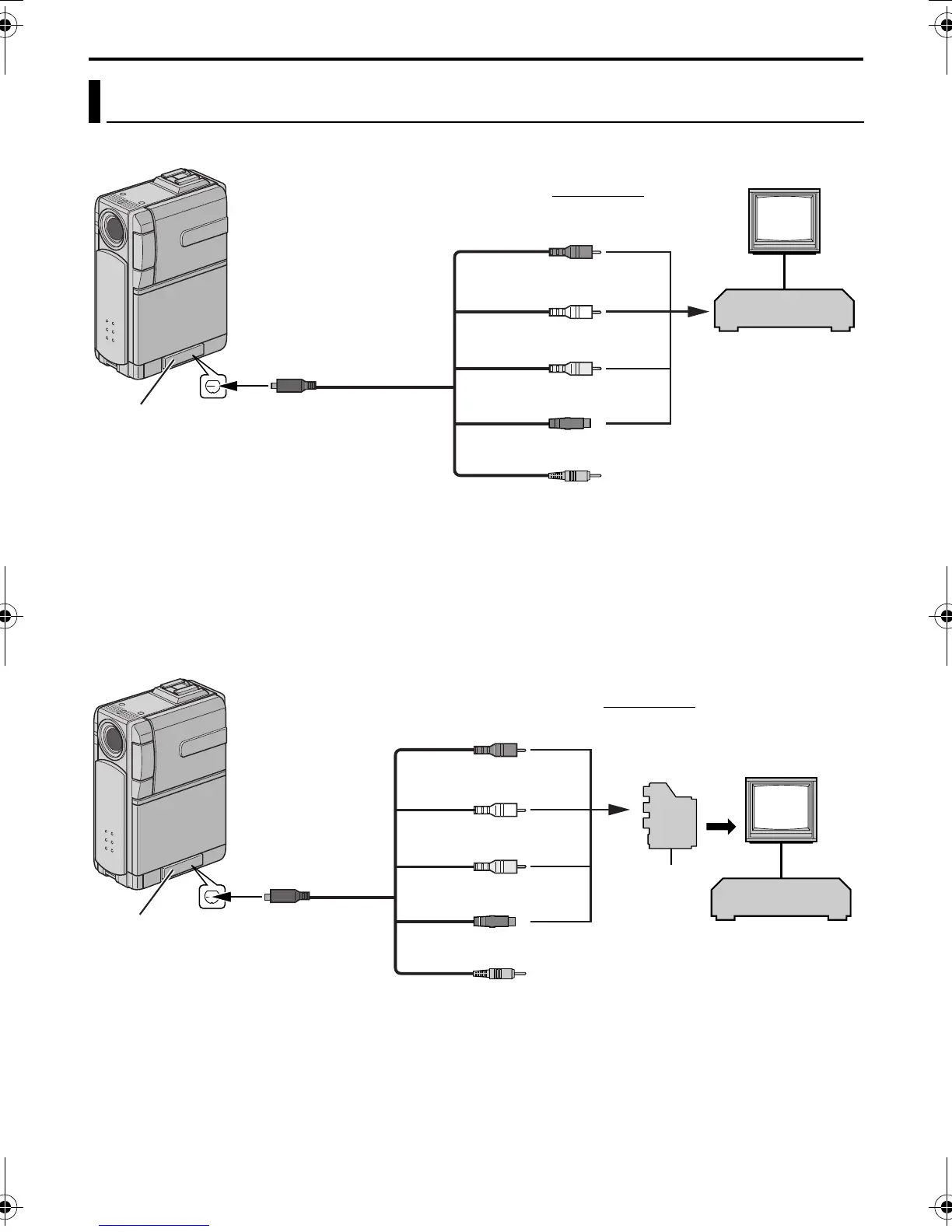

Connections To A TV Or VCR
TV
White to AUDIO L IN*
Red to AUDIO R IN*
VCR
To S/AV connector
S/AV/Editing cable
(provided)
Yellow to VIDEO IN
Black to S-VIDEO IN**
To TV or VCR
Not connected
Connector
Cover***
To TV or VCR
TV
VCR
“Y/C”/
“CVBS”
Video Out
Select Switch
Cable
Adapter
To S/AV connector
White to AUDIO L IN*
Red to AUDIO R IN*
Yellow to VIDEO IN
Black to S-IN**
Not connected
S/AV/Editing cable
(provided)
Connector
Cover***
VIDEO PLAYBACK (cont.)
