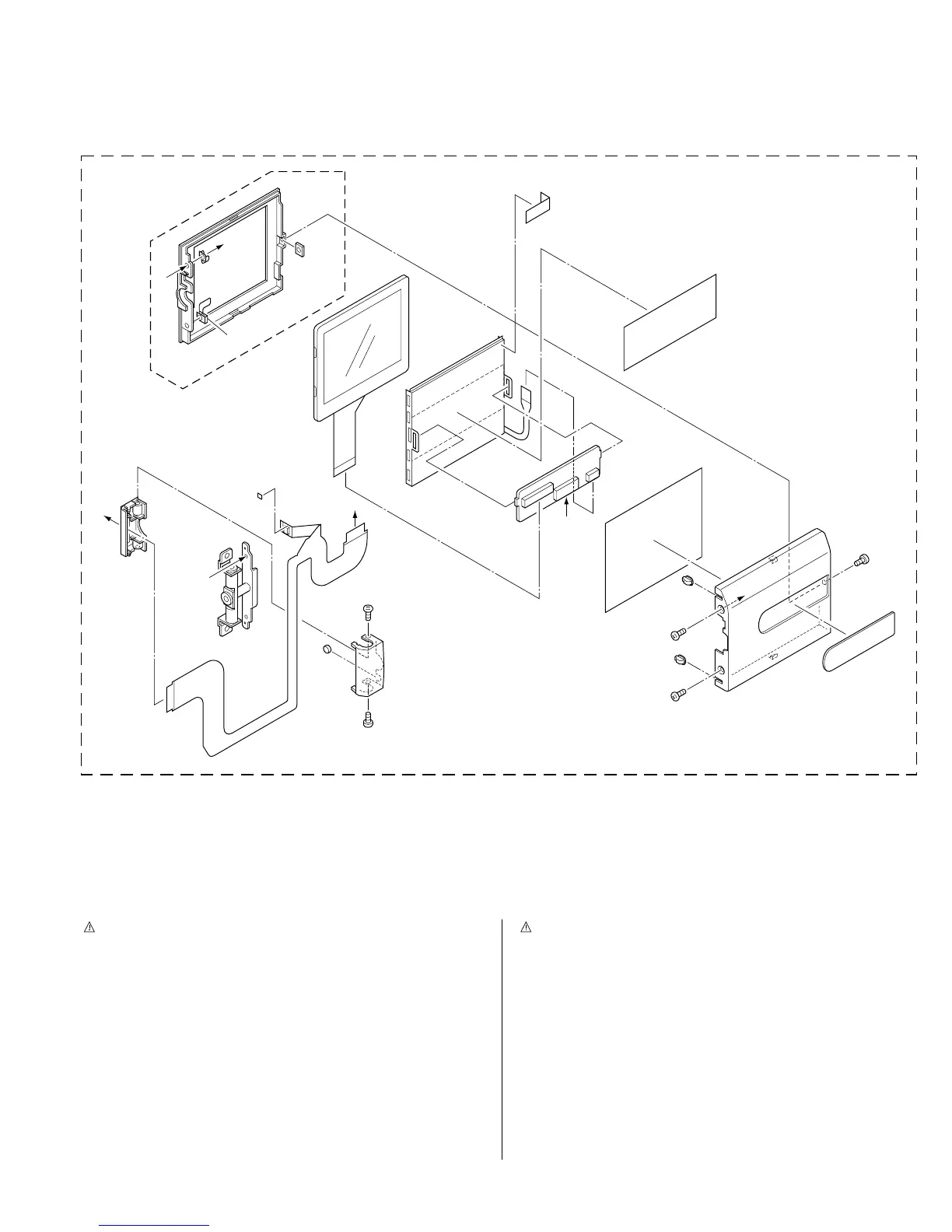

5.5 MONITOR ASSEMBLY <M5>
******************************
MONITOR ASSEMBLY <M5>
500 LYH20424-002B MONITOR ASSY
501 LY32633-001A MONITOR CASE ASSY
501A LY40162-001A BRACKET
501B LY43436-001A EARTH SHEET(M.CASE1)
501C LY43437-001A EARTH SHEET(M.CASE2)
502 LY10346-003A MONITOR COVER
503 LY43078-001B RIB(MONI.),X2
504 LY43438-001A I.SHEET(M.COVER)
505 LY32230-002B HINGE ASSY
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
506 LY32267-002A HINGE COVER(U)
507 LY32268-002A HINGE C0VER(L)
508 LY42355-001A MAGNET
509 LY30018-0D9A SPECIAL SCREW,X2
510 LY30018-043B SPECIAL SCREW
511 LY30018-0B7A SPECIAL SCREW,X2
512 LY43523-001A MARK
513 LY30029-0N7A SPACER(A)
514 QLD0235-001 LCD MODULE
515 QLL0120-001 BACK LIGHT
516 LY32766-001A FPC ASSY(MONI)
518 LY30029-0X8A SPACER(A)
519 LY30030-004A SPACER(A)
a
b
a
c
c
b
500
501
514
515
513
MONITOR
<04>
504
502
512
510
503
509
503
509
511
508
506
511
516
505
507
501B
501A
501C
518
519
