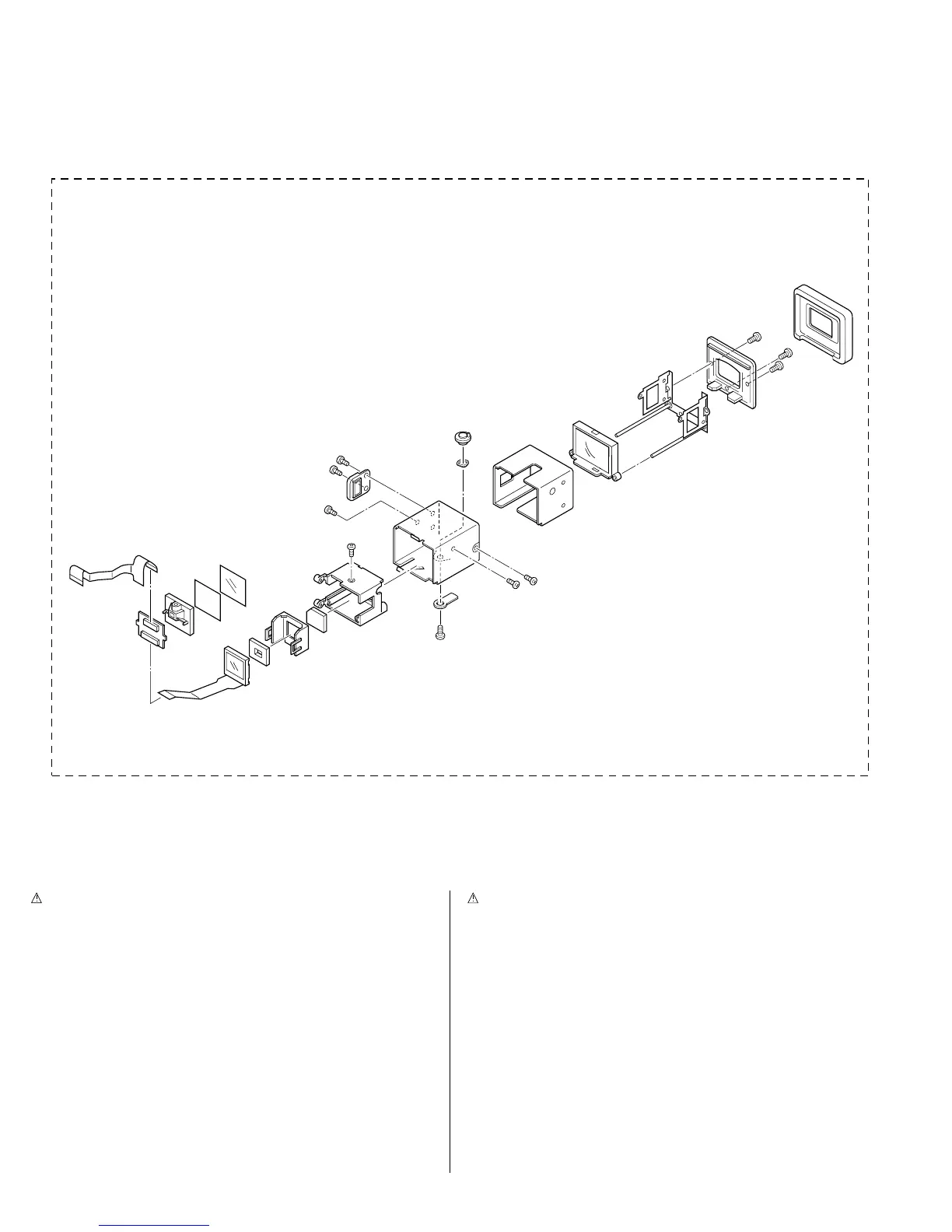

5.4 ELECTRONIC VIEWFINDER ASSEMBLY <M4>
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
311 LY32647-001A EYE CUP
312 LY32648-001A EYE PIECE
313 LY32649-001C VF FRAME
314 LY32650-001B S.GUIDE(OUTER)
315 LY43452-001A V.ADJ.LINK
316 LY43458-001A V.ADJ.LEVER
317 LY43459-001A WAVE WASHER
318 LY30018-055A SPECIAL SCREW,X3
319 LY30018-005A SPECIAL SCREW,X3
320 LY30018-0D4A SPECIAL SCREW
321 LY30018-0D4A SPECIAL SCREW
322 QAL0411-001 FPC
323 LY43775-001A SPACER(VF LCD)
324 LY43824-001A SHEET(VF)
******************************
ELECTRONIC VIEWFINDER ASSEMBLY <M4>
300 LYH20422-001C VF ASSY
301 LY32640-001A SLIDE GUIDE INNER ASSY
302 LY43451-001A LENS ASSY
303 LY32643-001B VF CASE ASSY
304 LY43454-001A BACKLIGHT CASE
305 LY43328-001A SHEET(PRISM)
306 LY43327-001A SHEET(DIFFUSE)
307 QLD0117-002 LCD MODULE
308 LY32646-001A LCD HOLDER
309 LY43457-001A CAP(VF C.HOLE)
310 LY30019-036A SPECIAL SCREW,X2
311
301
312
302
314
303
315
317
309
310
319
310
320
313
321
316
308
323
324
307
VF BL
<07>
322
306
304
305
319
319
318
318
318
300
