EN57
NOTES:
●
It is recommended to use the AC Power Adapter/
Charger as the power supply instead of the battery
pack (
墌
pg. 7).
●
When connecting the cables, make sure to
connect the ends with a core filter to the
camcorder. The core filter reduces interference.
●
To monitor the picture and sound from the
camcorder without inserting a tape or
MultiMediaCard, set the camcorder’s POWER
Switch to “ ”, then set your TV to the
appropriate input mode.
●
Make sure you adjust the TV sound volume to its
minimum level to avoid a sudden burst of sound
when the camcorder is turned on.
●
If you have a TV or speakers that are not specially
shielded, do not place the speakers adjacent to the
TV as interference will occur in the camcorder
playback picture.
●
While the Audio/Video cable is connected to the
AV OUT connector, sound cannot be heard from
the speaker.
●
Set the video out select switch of the cable adapter
as required:
Y/C : When connecting to a TV or VCR which
accepts Y/C signals and uses an S-Video
cable.
CVBS : When connecting to a TV or VCR which
does not accept Y/C signals and uses an
audio/video cable.
C.

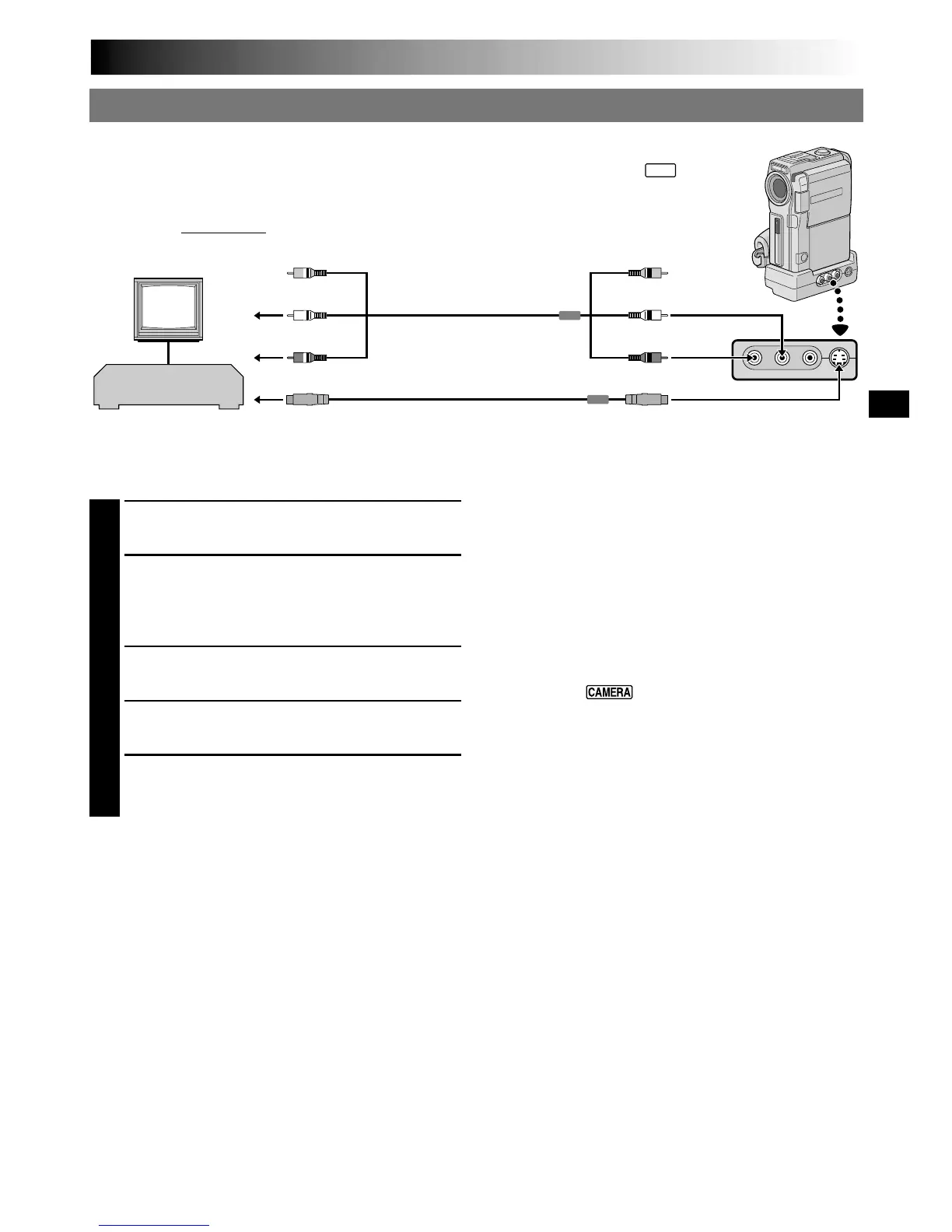

Connection to a TV or VCR equipped with an S-VIDEO IN and/or A/V input (RCA type) connectors
Audio/Video cable
[RCA plug to RCA
plug] (optional)
Red to
AUDIO R IN*
TV
VCR
To S-VIDEO IN
Yellow to VIDEO IN
Red to AUDIO R*
White to AUDIO L*
Yellow to VIDEO
To S
S-Video cable
(optional)
To TV or VCR
pp
pp
p
( )
[[
[[
[
When an S-Video
cable is not used.
* The Audio cable is not required for watching still images with the POWER Switch set to “
MEMORY
PLAY
”.
White to
AUDIO L IN*
1
Make sure all units are turned off.
2
Connect the camcorder to a TV or VCR as
shown in the illustration (墌 pg. 56, 57).
If using a VCR . . . go to step 3.
If not . . . go to step 4.
3
Connect the VCR output to the TV input,
referring to your VCR’s instruction manual.
4
Turn on the camcorder, the VCR and the TV.
5
Set the VCR to its AUX input mode, and set the
TV to its VIDEO mode.
To choose whether or not the following displays
appear on the connected TV . . .
•Date/Time
.... set “DATE/TIME” to “AUTO”, “ON” or “OFF”
in the Menu Screen (墌 pg. 41).
•Time Code
.... set “TIME CODE” to “ON” or “OFF” in the
Menu Screen (墌
pg. 41).
•Playback Sound Mode, Tape Speed And Tape
Running Displays for video playback
Or
Directory/File Names and Image Number/Total
Number of Images for D.S.C. Playback
.... set “ON SCREEN” to “LCD” or “SIMPLE” in the
Menu Screen (墌 pg. 41).
Or, press DISPLAY on the remote control.
To Next Page
