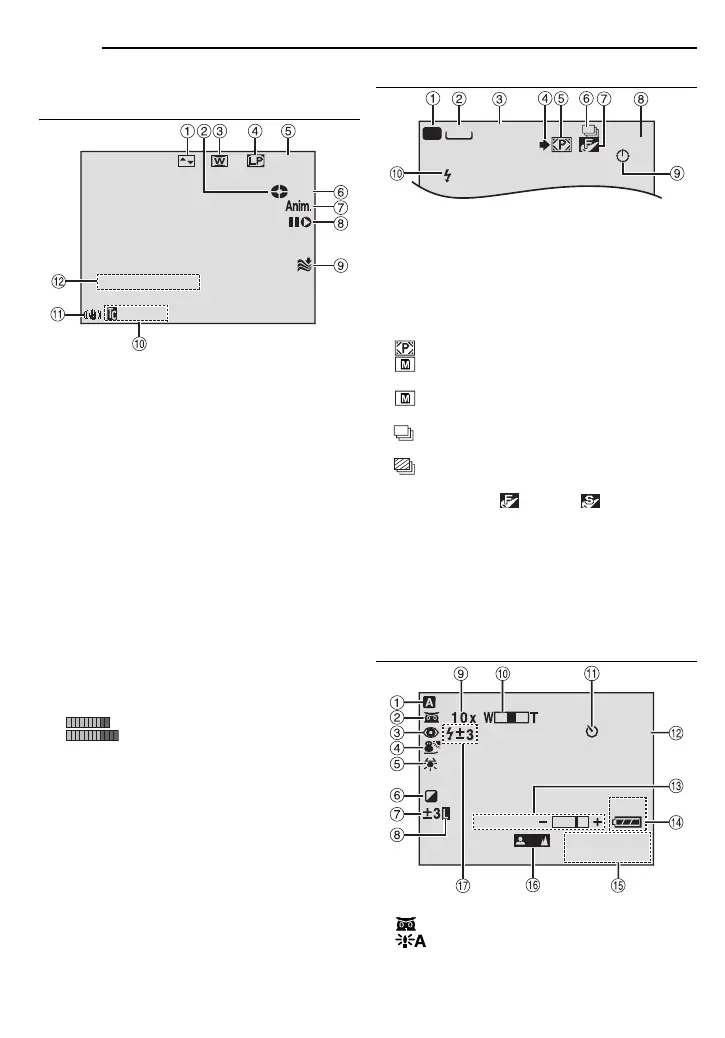

Indications on LCD Monitor
During Video Recording Only
A Selected Wipe/Fader Effect Indicator
(墌 pg. 44)
B Tape Running Indicator (墌 pg. 18)
(Rotates while tape is running.)
C Selected Wide Mode Indicator (墌 pg. 35)
D Recording Speed Mode (SP/LP) (墌 pg. 34)
E Tape Remaining Time (墌 pg. 18)
F REC: (Appears during recording.) (墌 pg. 18)
PAUSE: (Appears during record-standby
mode.) (墌 pg. 18)
G 5S/Anim.: Displays the 5-second recording
mode or animation recording mode.
(墌 pg. 35, 40)
H Insert Editing/Insert Editing Pause Mode
(墌 pg. 49)
I Wind Cut Indicator (墌 pg. 35)
J Time Code (墌 pg. 19, 36)
K Digital Image Stabilizer (“DIS”) (墌 pg. 34)
L SOUND 12BIT/16BIT: Sound Mode Indicator
(墌 pg. 34) (Appears for approx. 5 seconds
after turning on the camcorder.)
: Auxiliary Microphone Level
Indicator
(Appears when an optional microphone is
connected. 墌 pg. 36, “AUX MIC” )
During D.S.C. Recording Only
A Gain Mode Indicator (墌 pg. 34)
B Image Size: 2560 (2560 x 1920), 2048
(2048 x 1536), 1600 (1600 x 1200), 1280
(1280 x 960), 640 (640 x 480) (墌 pg. 37)
C Interval Shooting Indicator (墌 pg. 26)
D Shooting Icon (墌 pg. 25)
(Appears and blinks during shooting.)
E Card Icon (墌 pg. 25)
: Appears during shooting.
: Blinks in white when a memory card is
not loaded.
: Blinks in yellow while the camcorder is
reading the data in the memory card.
F : Continuous Shooting Mode Indicator
(墌 pg. 25, 37, 39)
: Bracket Shooting Mode Indicator
(墌 pg. 25, 37)
G Picture Quality: (FINE) / (STANDARD)
(in order of quality) (墌 pg. 36)
H Remaining Number Of Shots (墌 pg. 61)
(Displays the approximate remaining number
of shots that can be stored during D.S.C.
recording.)
I Clock Icon (墌 pg. 26)
J Flash Indicator (墌 pg. 39)
During Both Video And D.S.C. Recording
A Operation Mode Indicator (墌 pg. 14)
B : Night-Alive Indicator (墌 pg. 40)
: Gain Up Mode (墌 pg. 34)
C Red Eye Reduction Indicator (墌 pg. 39)
D Program AE Indicator (墌 pg. 44)
E White Balance Indicator (墌 pg. 43)
F Special Effect Indicator (墌 pg. 45)
